2990B003AA

Overview:

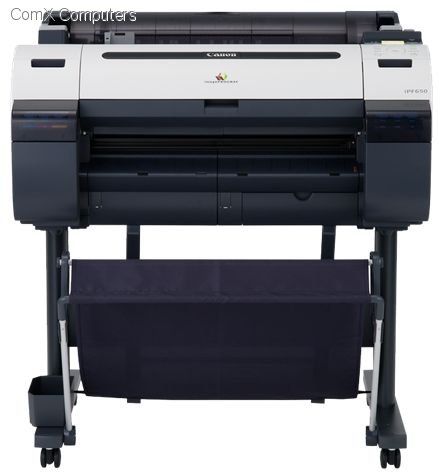

• Built for high quality production in CAD/GIS environments, the imagePROGRAF iPF650 is a 24”/A1 large format printer that delivers outstanding quality and an impressive return on investment.
• Space saving, compact design.
• Manage costs & track ROI with accounting software.
• User friendly front access.
• High productivity incl. “Hot swap” ink tanks.
• Exceptional quality & accuracy.
• HP GL/2 & HP-RTL compatible.

Features:

Designed for practicality and usability
The iPF650 has been designed to fit comfortably into any CAD/GIS environment. A compact, slim-line design and front-access paper system means you can install the printer wherever you like – even flush against a wall. All operation including ink tank changing is carried out from the front, so you never need to disrupt your office no matter where you decide to place the printer. A large LCD control panel featuring graphic animations ensures it’s quick and easy to get to grips with. Prints are automatically stacked and can be collected from a high capacity basket to prevent damage and there’s even a handy print timer to keep you abreast of how long a job will take to complete.

High productivity
Expect exceptional productivity with draft A1 prints available in just 24 seconds. Canon’s L-COA image processing technology and Gigabit Ethernet compatibility ensure stunning high-speed reproductions on everything from architectural plans to geographic information. “Hot-swap” ink tanks allow ink cartridges to be replaced during printing for maximum productivity.

Economical and efficient
A built in accounting function allows accurate tracking of the cost per print and the overall cost of your printer and enables you to view the data through the printer driver, or export it to a CSV file for use in your own files or systems. An Economy mode can be selected which uses less ink - ideal when printing draft documents. Furthermore, Canon’s eMaintenance software automatically detects and manages mechanical problems and low ink levels, linking directly to a Canon service centre for maximum uptime.

Exceptional quality & accuracy
Canon’s 5-colour dye-and-pigment reactive ink system produces vivid colours and the sharpest, thinnest lines and the new magenta ink makes the red gamut even better. With a range accuracy of +/- 0.1% as well as a minimum line width of 0.02mm, precision is guaranteed. Images are rendered at 2,400 x 1200 dpi for maximum impact, thanks to super-fine print heads using 15,360 nozzles.

Built with demanding workflows
The iPF650 is compatible with HP-GL/2 and HP-RTL, including the ability to set palette and pen settings, for the most demanding CAD workflows. As well as an HDI driver for AutoCAD and for Microsoft Office users, there is a plug-in to print in Word, Excel and PowerPoint directly from the application.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Product Code	2990B003AA
Specifications
Class	24-inch
Ink Type	Pigment and Dye reactive ink, 5 colours (MBK x 2, BK, C, M, Y)
Maximum Print Resolution	2400 x 1200dpi
Printing Speed	(A1 Roll, Full Colour Image)
	Plain Paper: 0.30 (Draft Mode), 0.43 (Standard Mode)
	Coated Paper: 0.43 (Draft Mode)1.18 (Standard Mode), 2.06 (High Quality Mode)
Dimensions, Weight	Net:
	iPF650: Main unit only: 997 (W) x 698 (D) x 507 (H)mm; Weight: approx. 43.4kg
	iPF655: Main unit only: 997 (W) x 698 (D) x 507 (H)mm; Weight: approx. 43.6kg
	iPF650: Main unit with a basket open and a printer stand: 997 (W) x 870 (D) x 1062 (H)mm; Weight approx. 53.7kg (roll holder included, no inks, no print heads)
	iPF655: Main unit with a basket open and a printer stand: 997 (W) x 870 (D) x 1062 (H)mm; Weight approx. 53.9kg (roll holder included, no inks, no print heads)
	Packaged:
	iPF650: Main unit only: 1127 (W) x 830 (D) x 762 (H)mm; Weight: approx. 63kg
	iPF655: Main unit only: 1127 (W) x 830 (D) x 762 (H)mm; Weight: approx. 63.2kg
	iPF650: Stand and basket: 1073 (W) x 766 (D) x 263 (H)mm; Weight approx. 15.8kg
	iPF655: Stand and basket: 1073 (W) x 766 (D) x 263 (H)mm; Weight approx. 15.8kg
Power Supply	Input Power: AC 100-240V (50/60Hz)
	Power Consumption: 140 W or less
	Standby Power Consumption (at the low power mode): 220V - 240V: 6 W or less; 100V - 120V: 5 W or less
	Power off (standby): 1 W or less (In compliance with Executive Order of the President of the United States of America)
Operational Environment	Temperature: 15-30 degrees Celsius, Humidity: 10-80% (Condensation free)
Acoustic Noise	Pressure: Operation: 47 dB (A) or less, Standby: 35 dB (A) or less
	Power: Operation: 6.4 Bels or less
Minimal Line Width	0.02mm (Theoretical Value)
Line Accuracy	+/-0.1% or less (User adjustments necessary. Printing environment media must match that used for the adjustments. CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only).
Operation Panel Display	Large LCD: 160 x 128 dots, Key x 13, LED x 5
Language on Operation Panel	US-English, Japanese
Language on LCD	US-English, French, German, Italian, Spanish, Chinese (simplified), Korean, Japanese (Kanji), Russian
Printer Language	GARO, HP-GL/2, HP RTL
Interface	Type: Built-in
	Mode: Full Speed (12 Mbit/sec, High Speed (480 Mbit/sec), Bulk transfer
	Connector Type: Series B (4 pins)
Ethernet	Type: Build-in
	Standard: IEEE 802.3 10base-T, IEE 802.3u 100base-TX/ Auto-Negotiation
	IEEE 802.3 x Full Duplex, IEEE 802.3ab 1000base-T/Auto-Negotiation
Protocol	IPX/SPX (Netware 4.2 9J), 5.1 (J), 6.0 (J))
	SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Operating Systems supported	Windows: 2000 (32)/XP (32 & 64)/ Server 2003 (32 & 64)/ Server 2008 (32 & 64)/ Vista (32 & 64)
	Macintosh: OS X (32 & 64)
Memory	Standard Memory: 256Mb
	HDD: 80Gb (iPF655)
PRINT HEAD
Model	PF-04
Type	Bubble-jet on demand
Head Configuration	6 colour integrated type (6 chips per print head)
Nozzle Pitch	1200 dpi
Nozzle per chip	MBK: 5120 nozzles, Other Colours: 2560 nozzles each
Droplet size	4pl per colour
INK TANK
Model	PF-102 (130ml): MBK/BK/C/Y, PFI-104 (130ml): M
MEDIA HANDLING
Roll Paper	One roll, front-loading, front output
Cut sheet	Top-feeding, front output (Manual feed using media locking lever)
Media Type	Roll Paper:
	Standard Paper 80gsm, Standard Paper 90gsm, Matt Coated Paper 90gsm, Glossy Photo Quality paper 190gsm/240gsm/300gsm, Satin Photo Quality Paper 190gsm/240gsm/300gsm, Pearl Photo Paper 260gsm, Matt Coated Paper 120gsm/140gsm/180gsm, Opaque White Paper 120gsm, High Resolution Self-adhesive Graphic Paper 140gsm, High Resolution Barrier Paper 180gsm, Glossy Proofing Paper 195gsm, Semi-Glossy Proofing Paper 195gsm/255gsm
Media size	Roll Paper (width): ISO: A3, A2, A2+, A1; JIS: BS, B4; ARCH: 24"; Others: 10", 14", 16", 17", Banner (300mm)
	Cut Sheet: ISO: A4, A3, A3+, A2, A2+, A1, B4, B3, B2; DIN: C4, C3, C2; JIS: B4, B3, B2; ANSI: 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34"; ARCH: 9 x 12", 12 x 18", 18 x 24", 24 x 36"; Photo: 20 x 24", 18 x 22", 14 x 17", 12 x 16", 10 x 12", 10 x 15", 16 x 20" (US Photo Size); Poster: 20 x 30", 300 x 900mm; Others: 13 x 22"
Media Thickness	Roll Paper & Cut Sheet: 0.07-0.08mm
Maximum outside diameter of Roll Paper	150mm
Media Core Size	Internal diameter of roll core: 2"/3"
Media Width	Roll Paper: 254-609.6mm (24")
	Cut Sheet: 203.2-609.6mm (24")
Minimal Printable Paper Length	Roll Paper: 203.2mm (8")
	Cut Sheet: 279.4mm (11"): Letter size (long side)
Maximum Printable Paper Length	Roll Paper: 18m (varies according to the OS and application)
	Cut Sheet: 1.6m (varies according to the OS and application)
Margins (Top, Bottoms, Sides)	Recommended Area:
	Roll Paper: Top: 20mm, Bottom: 5mm, Side: 5mm
	Cut Sheet: Top: 20mm, Bottom: 23mm, Side: 5mm
	Printable Area:
	Roll Paper: Top: 3mm, Bottom: 3mm, Side: 3mm
	Roll Paper (borderless print): Top: 0mm, Bottom: 0mm, Side: 0mm
	Cut Sheet: Top: 3mm, Bottom: 23mm, Side: 3mm
Media Width for Borderless Printing	10" (254mm), B4 (257mm), A3 (297mm), Banner (300mm), 14" (356mm), A2 (420mm), A2+/17" (432mm), B2 (515mm), A1 (594mm), 24" (610mm)
OPTION
Printer Stand	ST-26
Roll Holder Set	2" core spindle with 3" core roll media: RH2-26
CONSUMABLES
Ink Tank	PFI-102 (130ml): MBK/BK/C/Y, PFI-104: M
Print Head	PF-04
Maintenance Cartridge	MC-10
