A30-025

Overview:

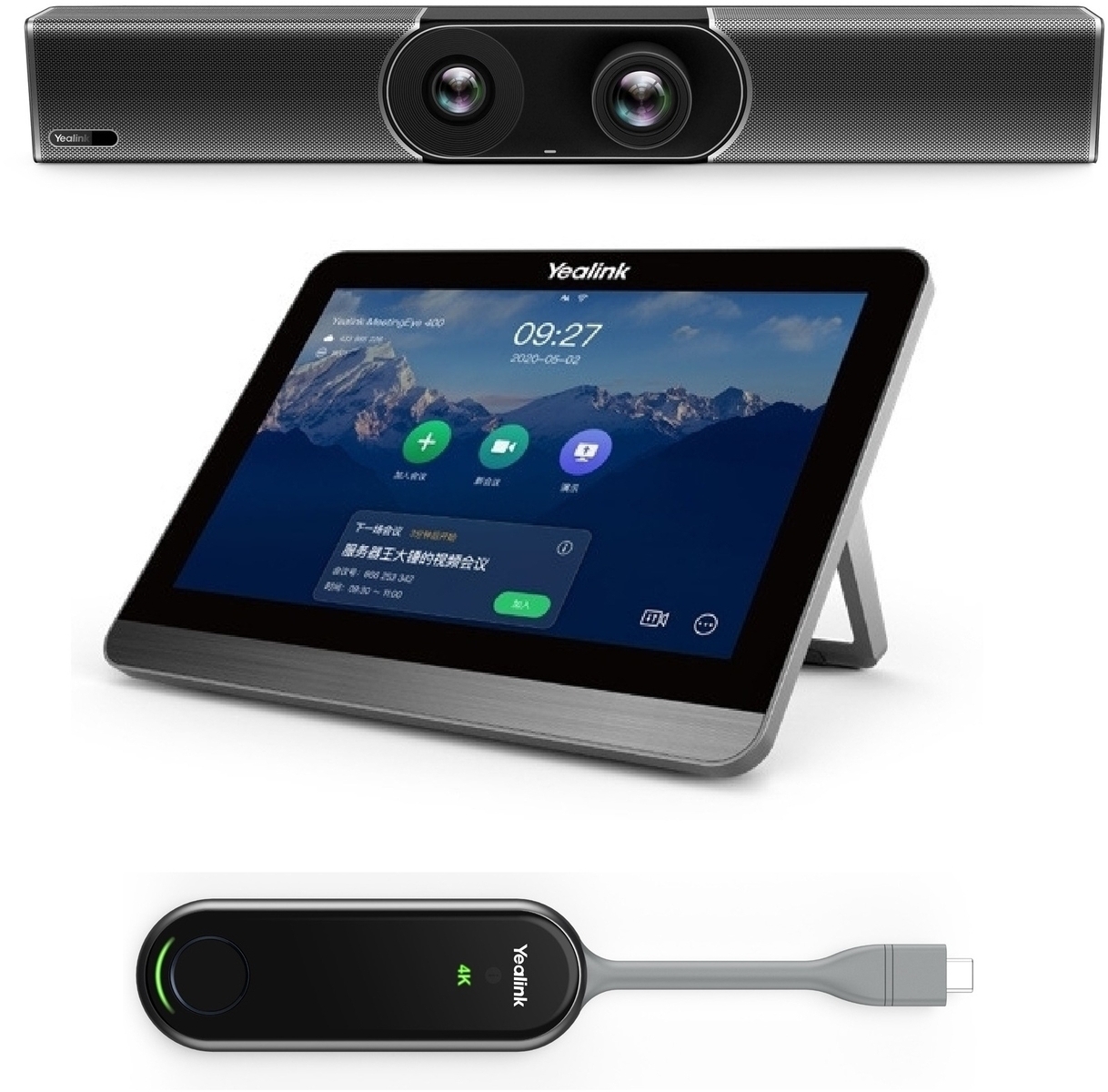

MeetingBar A 30 All-in-One Video Collaboration Bar - SIMPLE TO SET UP A DEDICATED ROOM
Designed with simplicity, the all-in-one video conferencing bar, Yealink MeetingBar A30 integrates an optical camera, 8 MEMS microphone arrays, and speakers into an all-in-one system. No PC or individual components are required, allowing plug-and-play for a dedicated small meeting room setup within minutes, greatly reducing the time needed for deployment and management. In addition, connecting to a CTP18 touch panel can be realized for better meeting control.

A30 CAMERA, ONLY DUAL-CAMERA CAN
MeetingBar A30 dual-camera system is perfect for medium rooms. It features an optical camera with 10x hybrid zoom and an 8-megapixel digital camera with a 120° field of view, delivering a clear visual experience with depth, which is unable to be achieved with a single camera.

AI-POWERED VIDEO CONFERENCE EXPERIENCE
All AI camera functions have been upgraded to top-level. It now reacts faster and moves more smoothly, and one frame dissolves naturally into another when changing modes. Now, the camera creates a more fluent video experience.

• 01 Auto Framing
• 02 Speaker Tracking
• 03 Picture-in-Picture - Picture-in-Picture tracks and frames the speaker in an individual window, which is separate from the other window, for a panoramic view, enabling users to keep an eye on who's talking even if the speaker is seated at a distance in a medium room.

IMMERSIVE VOICE IN EVERY CORNER
The built-in 8 MEMS microphone arrays and speaker in Yealink MeetingBar, completely cover up to 6-meter medium-sized spaces. As the MeetingBar is equipped with a powerful independent audio processing unit, you can enjoy a worry-free, full-duplex voice experience with superior performance.

AI-BASED VOICE - CLEANS UP ALL THE NOISE
Yealink enhanced AI noise cancellation makes the audio experience more brilliant. Leveraging a massive deep-learning sound database to reduce background noises, it is more about intelligent audio analysis than standard filtering of audio frequencies. The distracting keyboard clatter, mouse clicks, footsteps, and other ambient noises are smartly pared back, ensuring that users enjoy crystal-clear audio quality.

ONE STEP TOWARDS WIRELESS MEETING
The WPP30 creates a wireless meeting experience with the yealink device. Once connected, it immediately gets you ready for wireless content sharing and device mode withour any configuration steps, users can start a meeting anywhere in the conference room.

With the Yealink algorithm, WPP30 can maintain a stable wireless connection even in complex network environments and delivers a super clear, speedy and stable presenting experience with low latency.

LEADING VIDEO PLATFORMS WITHIN YOUR CHOICE
Yealink MeetingBar supports diverse video platform experiences. No matter which platform you use, start your meeting right now!

Features:

• Qualcomm Snapdragon 845 chipset
• ALL-IN-ONE design
• Two Cameras Design
• 120° Super filed of view
• Electric Privacy Shutter
• Dual screen
• Auto framing and speaker tracking
• Built-in Bluetooth
• Built-in dual-band Wi-Fi
• Content sharing
• Whiteboard
• Certified by Zoom & Microsoft Teams

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	A30-025
MeetingBar A 30 All-in-One Video Collaboration Bar
Dual Camera System	Wide Camera:
	- 8MP Camera
	- Field of view: 120°
	- 4x e-PTZ Camera
	Telephoto Camera:
	- 8MP Camera
	- Field of view: 90°
	- 10x Hybrid Zoom (3.5x optical, 3x digital)
	- Horizontal Rotation Angle: +25°/-25°
	- Vertically Rotation Angle: +16°/-16°
	Electric Privacy Shutter
	Intelligence Features
	- Auto Framing
	- Speaker Tracking
Audio	Built-in 8 MEMS microphone array
	Support extention mic
	Two Built-in 5W high fidelity speaker
	Yealink Noise Proof Technology
	Beamforming directed voice pickup technology
	Full-duplex
	Echo cancellation
Operating System	Android 9.0
Meeting Features	Calendar
	One-click join
	Meeting collaboration
	- Content sharing
	- Whiteboard
	Meeting control:
	- Add participates
	- Hold/Resume
	- Camera On/Off
	- Mute/Unmute
	- Volume Up/Down
	- Hang up
	Teams Edition
	- Microsoft DM
	- Proximity join
	Zoom Edition
	- Zoom DM
	- Direct sharing
Video Standard and Network Suitability	Video codecs: H.264 High profile, H.264 SVC, H.264
Network and Security Features	Built-in dual-band Wi-Fi (2.4GHz/5GHz)
	Built-in Bluetooth
	IPv4 and IPv6, DHCP/static IP
	HTTP/HTTPS web server
	SRTP/TLS, AES 256-bit encryption
	QoS: 802.1p/q, Diff-serv
	VLAN, LLDP
	IEEE802.1X
	- EAP-MD5/EAP-TLS
	- PEAP-MSCHAPv2
	- EAP-TTLS/EAP-MSCHAPv2
	Network diagnosis: Ping, Trace route
	Time and date synchronization using SNTP
	Built-in certificate
	Simple Certificate Enrollment Protocol (SCEP)* coming soon
Connections	2 x HDMI output (CEC supported)
	HDMI input (through the VCH51 Sharing Kit)
	1 x Line-in (3.5mm)
	1 x Line-out (3.5mm)
	2 x USB 2.0
	1 x 10/100M/1000M Ethernet port
	1 x Yealink extension port (RJ-45)
	1 x Power port
	1 x Security lock slot
	1 x Reset slot
Other Physical Features	External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
	USB Output: 5V 0.5A
	Power consumption (PSU): Idle < 13W, Normal operating: 15W, MAX: 16W
	Dimension (W.D.H): 700 mm x 98 mm x 121 mm
	Operating humidity: 10~95%
	Operating temperature: 0~40°C
	Storage temperature: -30~70°C
MeetingBar A30 Package	Package contents:
	MeetingBar A30 endpoint
	- 3m Ethernet cable
	- 2 x 1.8m HDMI cable
	- Mounting Bracket and Accessories
	- Power adapter
	- Quick Start Guide
	- Controller (optional):
	CTP18 Touch Panel
	VCR20 Remote Control
	- Content sharing(optional):
	VCH51 Sharing Kit (HDMI/USB-C)
	WPP20 Wireless Presentation Pod
	Carton Meas: 903*325*306mm
	MeetingBar A30 + CTP18 Package
	Carton Meas: 923*495*327mm
WPP30 Spec
Decoder	Up to 4k/30fps
Input Power	5V/600 mA
Power Consumption	2.2 W (Typical)
Interface	Full-featured USB Type-C x 1
	USB-C to USB-A Adapter x1
Button	START/STOP Button x 1
	4K/UHD Indicator x 1
LED	System Error Indicator x 1
	System Status Indicator x 1
Wi-Fi
Standard	Wi-Fi 6, 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz/5 GHz
Encryption	WPA-PSK/WPA2-PSK
Bluetooth
Standard	Bluetooth 5.0
Desktop Sharing	Duplicated Display
	Extended Display
Advanced Features
Collaboration	Annotation
	Virtual Whiteboard
	Intuitive Remote Control
	Multiple Screens Share
Operating Environmental
Temperature range	-10 to 40°C
Humidity	0 to 95%, non-condensing
Dimensions
Weight (g/lb)	75 g (0.165 lb)
Size (mm/in)	220 mm x 38 mm x 16 mm (8.66" x 1.50" x 0.63" )
Collaboration Touch Panel CTP18
Connection	Connect to VCS endpoint via cable
	Pair with the VCS endpoint in the same LAN (sup-
	ported by later versions)
	Connect to VCS endpoint via Wi-Fi
System Compatibility	MeetingEye 400/MeetingEye 600
	- 44 or later versions
	- Up to 4 CTP18 units can be used in one system
	VC880/VC800/VC500
	- Supported by later versions
	- Up to 4 CTP18 units can be used in one system
	VC200/VC210
	- Supported by later versions
	- Up to 1 CTP18 unit can be used in one system
Wireless Network	Wi-Fi
	- 2.4G/5G Wi-Fi
	- IEEE 802.11n/ac
	- Support connecting to the Wi-Fi generated by Yealink VCS endpoints only
Display	Screen
	- 8-inch IPS FHD capacitive touch screen
	Resolution
	- 1280*800 (16:10)
	Touch
	- 10 points multi-touch
Interface	USB
	- 1 x USB-C for device debugging
	RJ45
	- 1 x RJ45 Ethernet for power and data connection
	Reset slot
	1 x Reset slot
Accessories	Wall Mount Bracket
	- 1 x wall mount bracket
	Security lock slot
	- 1 x security lock slot for anti-theft
Other Physical Features	Power supply
	- Power over Ethernet (IEEE 802.3af)
	Power input
	- PoE 48V 0.27A
	Power consumption
	- 7W at most
	Stand
	- Adjustable angle (28°~50°)
	Dimension (W*D*H)
	- 202mm x 151mm x 100mm
