AM-2G16-90 Ubiquiti AirMax Antenna 2.4Ghz 90 degree sector antenna, 16dBi gain

AM-2G16-90

R 2,500.00

inc. VAT

In Stock

Add To Cart

Rate

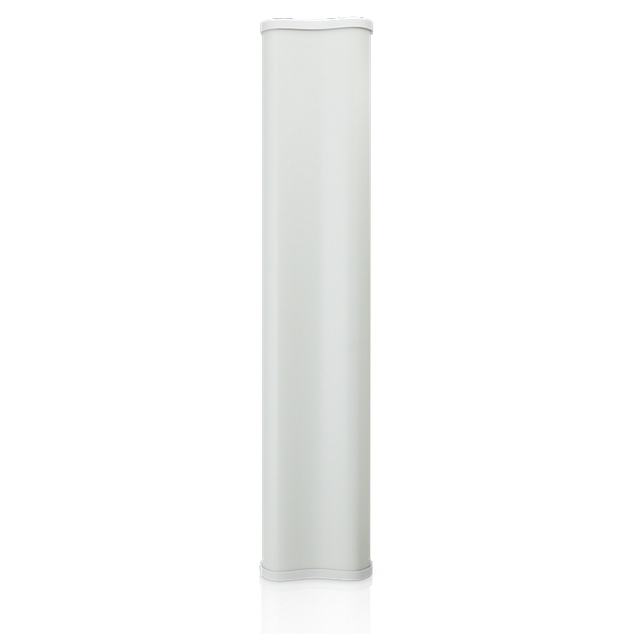

Ubiquiti AirMax Antenna 2.4Ghz 90 degree sector antenna, 16dBi gain

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

AM-2G16-90

Wireless: Antennas

Ubiquiti

AM-2G16-90 information and overview

Ubiquiti AirMax Antenna 2.4Ghz 90 degree sector antenna, 16dBi gain, Dual-Linear Polarization, 2.3 - 2.7 GHz Frequency Range, Universal Pole Mount / RocketM Bracket / Weatherproof RF Jumpers Included, 2G16-90

Specifications & more information about AM-2G16-90, Wireless: Antennas manufactured by Ubiquiti

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

airMAX 2x2 BaseStation Sector Antenna Pair the airMAX Sector Antenna with a Rocket M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AM-2G16-90
Dimensions (mm)	700 x 145 x 79
Weight	3.9 kg
Frequency Range	2.3 - 2.7 GHz
Gain	16.0 - 17.0 dBi
HPOL Beamwidth	91° (6 dB)
VPOL Beamwidth	90° (6 dB)
Electrical Beamwidth	9°
Electrical Downtilt	4°
Max. VSWR	1.5:1
Wind Survivability	125 mph
Wind Loading	19 lbf @ 100 mph
Polarization	Dual-Linear
Cross-pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
