CA-CCG3-J

Overview:

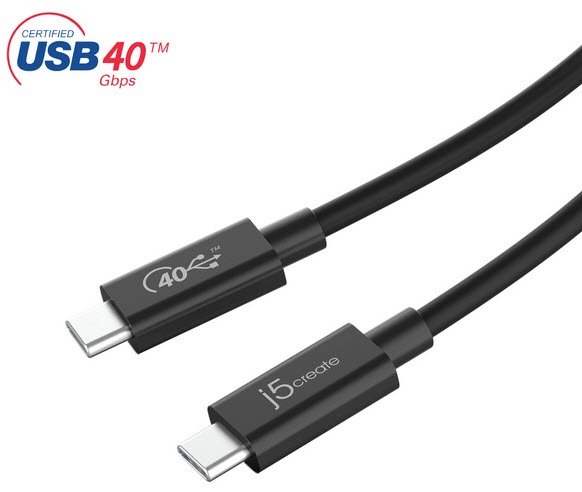

The USB-IF® certified Full-Featured USB-C® cable (USB4® Gen 3) has a USB-C® connector (USB4®) and PD 3.0 E-Marker (USB4®). Power Delivery and data transfer between smartphones, tablets, and laptops are supported by the cable. It has a high maximum data transmission rate of 40Gbps for quick data transfers and a powder delivery charging capacity of 100W. The cable also supports up to one 8K displays and dual 4K dual displays when connected to devices that support video output such as a Thunderbolt® 4 docking station.

Features:

• Up to 40Gbps data transfer speed lets you move large files in seconds
• Supports up to 20V/5A 100W charging for all USB-C® devices, including phones, tablets, and laptops
• Supports fast charging on compatible devices
• Built-in PD 3.0 E-Marker (USB4®) chip ensures safe and stable 100W fast charging
• Support one 8K@60Hz or dual 4K@60Hz video display
• Backward compatible with USB™ 3.2, 3.1, 3.0, 2.0 and Thunderbolt™ 3, Thunderbolt™ 4 devices
• Has a bending lifespan of up to 10,000+ bending cycles
• Supports Thunderbolt™ 4 daisy-chaining for connecting Thunderbolt™ devices

USB-IF® Certified
Meets the safety and functionality requirements. With the best compatibility for USB4® and USB-C® devices, it provides trouble-free charging and transferring.

One Cable for All
Extremely high data transfer rate of up to 40Gbps, PD 100W charging, and 8K@60Hz video output are supported. USB-C® and Thunderbolt™ device connection allows you to boost efficiency when connecting devices.

Vivid Visual Experience
Offers a high-quality visual experience up to 8K@60Hz displays.

Next Generation Speeds
Transfer data at high speeds of up to 40Gbps, allowing you to transfer large files such as movies and images in seconds.

100W Ultra-Fast PD Charging
With up to 100W of power delivery charging, you can refuel your laptop, tablet, smartphone, or USB-C® device. Takes less than 2 hours for a full charge on a MacBook Pro®.

Built-in USB™ PD 3.0 E-Marker(USB4®)
USB-IF® Certified and embedded E-Marker chip for safe charging.

Supports Thunderbolt™ 4 Daisy-Chain Connection
Supports daisy chaining of up to 6 devices, including an external graphics card, hard drive, and display. Fully compatible with Thunderbolt™ 4 and 3.

Long Bending Lifespan of 10,000+
Reliably bend the cable without causing a break in the connection.

Universal Compatibility
Compatible with Thunderbolt™ 4/3 devices and backward compatible with USB™ 3.2, 3.1, 3.0, and 2.0.

System Requirements:

• USB-C® devices that supports DisplayPort™ Alt Mode
• USB-C® devices that supports Power Delivery
• Computers or tablets that support USB4® or Thunderbolt® 4 are recommended for full functionality

Special Notes:

• The final actual data transfer speed depends on host and connected device support.
• USB-C® device must support DisplayPort™ Alt Mode for video output.
• USB-C® devices must support Power Delivery to charge.
• Charging speed may vary depending on device’s power requirements and the wall charger

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CA-CCG3-J
Hardware
Cable Jacket Type	TPE
Cable Shield Type	Coaxial
Connector A	Usb-c Male Connector
Connector B	Usb-c Male Connector
Performance
Audio Channel	N/a
Displays Supported	1
Max Current	100W (20V/5A)
Max Data Transfer Rate	40Gbps
Max Display Resolution	7680 x 4320
Max Refresh Rate	60 Hz @ 3840 x 2160
	60 Hz @ 7860 x 4320
Wide Screen Supported	N/A
Physical Specifications
Cable Length	2.6 ft. (80 cm)
Color	Black
Connector Type	Straight
Enclosure Type	Plastic
Operating Humidity	< 85% non-condensing
Operating Temperature	32 to 98°F (0 to 37°C)
Product Depth	0.25 in. (6.3 mm)
Product Height	1.48 in. (37.5 mm)
Product Weight	1.41 oz (40 g)
Product Width	0.48 in. (12.3 mm)
Storage Humidity	< 85% non-condensing
Storage Temperature	14 to 140°F (-10 to 65°C)
