CAB-USB3.1-C-EXTA-5M

About this product

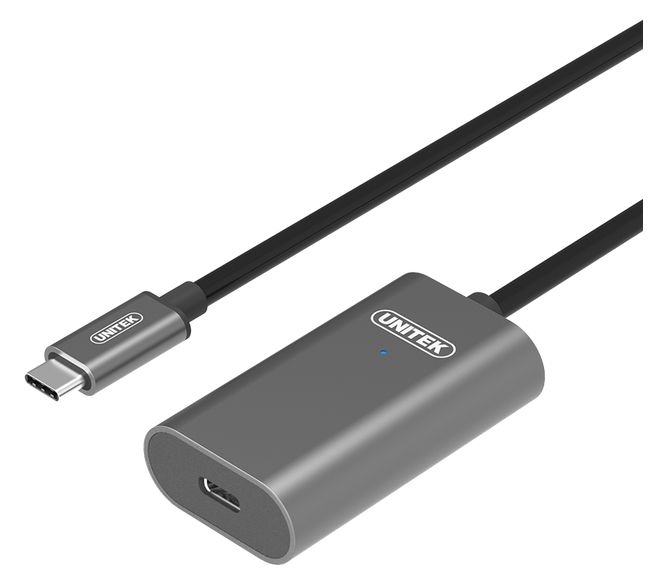

The UNITEK 5m USB3.1 Gen1 Type-C Active Extension Cable U305A provides reliable extension of USB-C connections up to 5 metres with SuperSpeed data transfer up to 5Gbps, built-in active signal enhancement, backward compatibility with USB2.0/1.1, and rugged aluminium alloy housing for high stability and long distance use.

Overview Summary

Description

The UNITEK 5m USB3.1 Gen1 Type-C Active Extension Cable U305A is engineered to extend USB-C connections without signal degradation over long distances. It incorporates an active signal repeater chipset to maintain SuperSpeed data transfer performance up to 5Gbps, surpassing what passive cables typically achieve at extended lengths. The cable is designed with a robust aluminium housing and corrosion resistant, nickel-plated connectors that improve signal clarity and durability in demanding environments. Its plug and play design means there is no software or driver installation required. An extra DC jack is included for optional external power when connecting devices with higher power requirements, ensuring stable operation. This extension solution is compatible with a wide range of USB-C enabled devices including storage drives, peripherals, displays, and data acquisition tools.

Features

The UNITEK USB-C Active Extension Cable offers the following features and benefits:

• Active SuperSpeed data transfer up to 5Gbps for fast and efficient data movement.
• Backward compatibility with USB2.0 and USB1.1 devices for broader use.
• Rugged build including aluminium housing for improved durability.
• Corrosion resistant connectors with nickel plating for better signal clarity and shielding.
• Plug and play simplicity with no driver required.
• Extra DC jack for optional power support with high power consuming devices.

What's in the Box

• 1 x UNITEK 5m USB3.1 Gen1 Type-C Active Extension Cable U305A
• 1 x User Manual

Specifications

• Cable length: 5m
• Standard: USB3.1 Gen1 SuperSpeed
• Data transfer speed: up to 5Gbps
• Connector A: USB-C (Male)
• Connector B: USB-C (Female)
• Backward compatibility: USB2.0/1.1
• Housing material: Aluminium alloy
• Connector plating: Nickel
• Extra power: DC jack for high power devices
• Plug and play: Yes, no driver required

FAQ

What devices can I use with this USB-C extension cable?

This cable supports USB-C devices that use USB3.1 Gen1 or lower protocols including storage drives, USB hubs, peripherals, and other USB-C enabled equipment requiring data extension. Compatible with devices that work up to 5Gbps and lower speeds on USB2.0/1.1.

Will this cable maintain high speed data transfer over 5 metres?

Yes, the active chipset built into the cable ensures stable SuperSpeed data transfer rates up to 5Gbps at the full 5m length without significant signal loss, compared to passive cables which may degrade at longer lengths.

Does the cable require any drivers or software to work?

No, the UNITEK USB-C Active Extension Cable is plug and play and works without installing any additional drivers or software.

Can I power high draw devices through this extension cable?

While the cable includes an extra DC jack for optional external power, it does not supply high wattage USB Power Delivery on its own. Use the DC power input only for devices that require supplemental power.
