Overview:

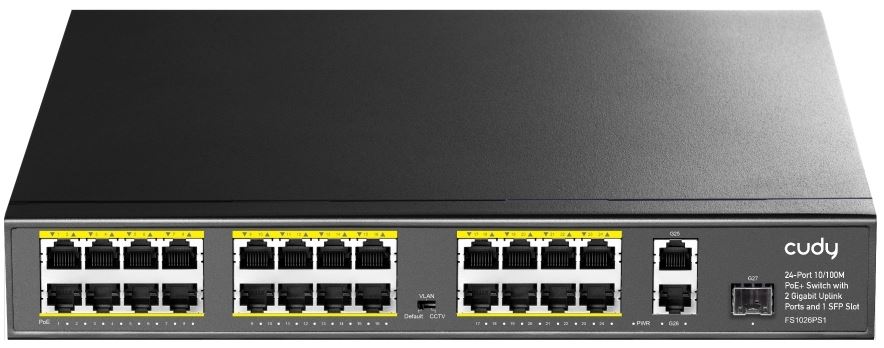

24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot, Model: FS1026PS1

• 24 x 10/100M PoE+ ports
• 2 x Gigabit Uplink port
• 1 x 1.25Gbps SFP slot
• 300 Watts PoE power budget
• IEEE 802.3at / IEEE 802.3af standard compliant
• Plug&play, simple setup with no configuration needed

Features:

300 W Power budget & 30 W Maximum One Port
Supports a total PoE power of 300 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Watchdog guarantees uninterrupted operation of the PoE devices
The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

Surveillance
Works with IP Cameras for home and office, small business

VoIP Conference Call
Works with VoIP phones for business conference

Wi-Fi Coverage
Works with WiFi APs for office and business

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CD-FS1026PS
Mode	FS1026PS1
Connector Type	24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot
Network Protocols	IEEE802.3
	IEEE802.3u
	IEEE802.3ab
	IEEE802.3x
	IEEE802.3z
PoE Parameters	PoE Standard: IEEE802.3af /IEEE802.3at
	Max each port: 15.4W ( IEEE 802.3af )
	Max each port : 30W ( IEEE 802.3at )
	PoE compatibility: IEEE 802.3af/at adaptive
	PoE port output: DC48-55V
	Power Pin : Power over spare pairs 1/2(+), 3/6 (-)
Network Media	10BASE-T: Cat 6 UTP(≤250 meter)
	100BASE-TX: Cat5 or more UTP (≤100 meter)
	1000BASE-TX: Cat5 or more UTP (≤100 meter)
Optical	MultiMode Fiber: 850nm, 1310nm
	Transmission Distance: 550m/2Km
	Single-Mode Fiber: 1310nm, 1550nm
	Transmission Distance: 20/40/60/80/100/120km
Performance Specification	Bandwidth: 10.8Gbps
	MAC Address: 2K
	Packet Buffer Memory: 1M
	Packet Forwarding Rate: 8Mpps
	Forwarding Mode: Store-And-Forward
Power Supply	Product Input Voltage: AC100-240V 50/60Hz
	Power Budget: 300W
Working Environment	Operating Temperature: -20°C ~ 50°C
	Storage Temperature: -40°C ~ 85°C
	Operating Humidity: Max 90%, non-condensing
	Storage Humidity: Max 95%, non-condensing
	Working Height: Max to 10,000 feet (3,000 meters)
	Storage Height: Max to 10,000 feet (3,000 meters)
Physical Parameter	Product Dimension (L*W*H): 320mm*210mm*46mm
	Package Dimension (L*W*H): 375mm*270mm*85mm
	N.W: 1.9KG
	G.W: 2.4KG
MTBF	100,000 hours
