CL-F097-PL12SW-A

Overview:

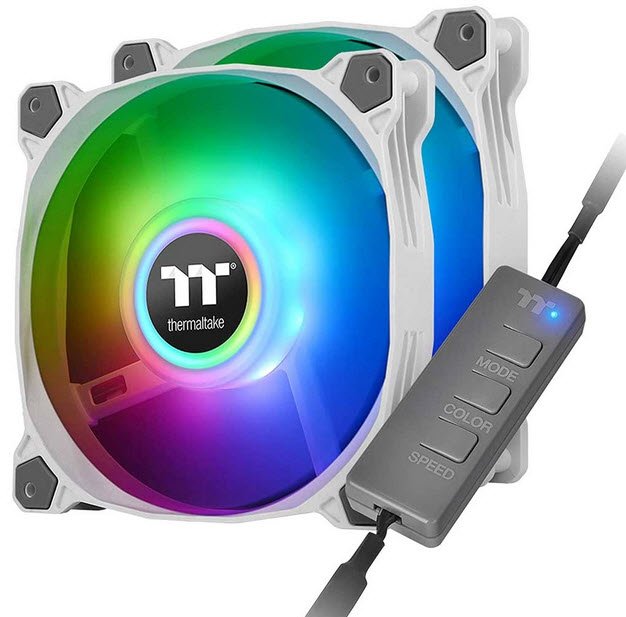

120mm PWM controlled fan with a 16.8 million color addressable LED ring that supports 5V RGB capable motherboards.

Features:

16.8 Million Color 2-LED Ring Design
Featuring 2 independent rings and 9 addressable LEDs on each ring, the Pure Duo fan gives great light coverage, uniform color and brightness. The built-in LED ring can light up your build with 16.8 million colors.

PWM Controlled Fan with 9 Fan Blade Design
PWM controlled fan with an unique 9 blade design is engineered to generate higher airflow whilst keeping quiet. The Pure Duo fans ensure more efficient cooling performance under intense operation.

Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.

Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

Simply Switch LED Modes with the Preset Controller
The controller comprises of 7 preset lighting modes: wave, full light, rgb spectrum, flow, ripple, pulse and blink modes, which are easy to switch even without the 5V addressable RGB header on your motherboard. Not only can users switch modes, but switch colors and lighting speeds intuitively.

Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CL-F097-PL12SW-A
P/N	CL-F097-PL12SW-A
Fan Dimension	120 x 120 x 25 mm
INTERFACE	Fan 2510-4P, LED 5V RGB Header
Started Voltage	9.0 V
Rated Current	Fan 0.17 A, LED 0.28 A (Fan*1)
Rated Voltage	12 V & 5V
Power Input	12V - 4.08 W, 5V - 2.8 W (Fan*2)
Fan Speed	PWM 500~1500 R.P.M
Max. Air Pressure	1.72 mm-H2O
Max Air Flow	56.51 CFM
NOISE LEVEL	28 dB-A
Bearing Type	Hydraulic Bearing
Life Expectation	40,000 hrs, 25°C
Weight	168 g (Fan*1)
