CSV-1580-CLUB3D Club 3D Thunderbolt 4 portable 5-in-1 Hub with Smart power

CSV-1580-CLUB3D

R 4,420.00

inc. VAT

In Stock

Add To Cart

Rate

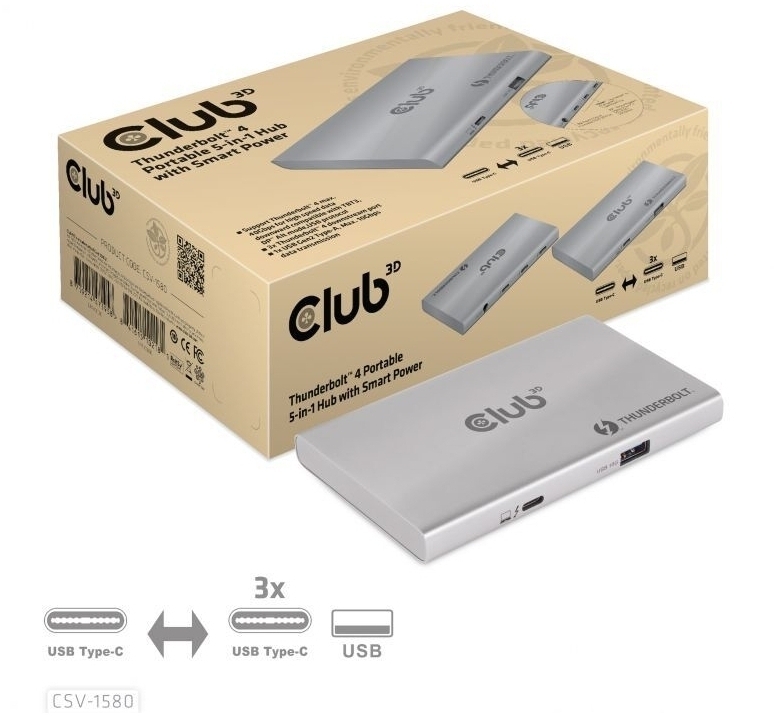

Club 3D Thunderbolt 4 portable 5-in-1 Hub with Smart power

Images are for illustrative purposes and actual product may differ.

CSV-1580-CLUB3D

Notebook docking station / replicator

Club 3D

CSV-1580-CLUB3D information and overview

Club 3D CSV-1580 Thunderbolt 4 portable 5-in-1 Hub with Smart power, 1x Thunderbolt 4 receptacle (To Host) support Maximum 60W, 3x Thunderbolt 4 receptacle, 1x USB Gen2 Type-A, Maximum 10Gbps Data transmission, Downward compatible with lower versions, Maximum 900mA downstream charging

Specifications & more information about CSV-1580-CLUB3D, Notebook docking station / replicator manufactured by Club 3D

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Thunderbolt 4 Portable 5-in-1 Hub with Smart Power
The Club 3D CSV-1580 is a Certified Thunderbolt 4 portable Hub which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. For the first time this Thunderbolt 4 modern Hub has 3 Thunderbolt 4 downstream ports that allow you to cascade Thunderbolt 4 devices to one 8K30Hz or two 4K60Hz monitors, it can also easily connect to any USB Type-C device, all while simultaneously charging the PC. Besides, it supports Smart Power function which enables to distribute power according to the power consumption of the connected device, making full use of the external power supply. It is designed for Thunderbolt 4 based PCs and Thunderbolt 3 based Macs utilizing MacOS 11 and later versions.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CSV-1580-CLUB3D
Product Name	Thunderbolt 4 Portable 5-in-1 Hub with Smart Power
Product Series	Docking
Product Code	CSV-1580
EAN code	8719214471958
UPC code	841615102181
Features	Adopting Goshen Ridge solution
	Slim compact aluminium design
	Designed for Thunderbolt 4 based PCs and Thunderbolt 3 based Macs utilizing MacOS 11 and later versions
	Support Thunderbolt 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3, DP Alt mode, USB protocol
	3x Thunderbolt 4 downstream ports, allow you to cascade Thunderbolt devices
	3x Thunderbolt 4 downstream ports support USB Gen2 with max 10Gbps data transfer(NO support for PD power adapter)
	3x Thunderbolt 4 downstream ports support max. 8K30Hz for one video output or dual 4K/60Hz Max. The maximum resolution for connecting a single monitor is also 8K30Hz.
	Self-powered from DC power adapter with max 60W for host, max 85W for host and Hub
	Support Smart Power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices, to take full advantage of provided power from the external DC power adapter:
	- more power will be dedicated for charging the host if the downstream ports of the Hub consume less power
	- when the power consumption of the Hub and the connected device increases, the power dedicated for charging your host will decrease accordingly.
OS Support	Windows10 or above version supported Thunderbolt 4 host
OS Support	MacOS 11 or above version supported Thunderbolt 3 host
In the box	CSV-1580 Thunderbolt 4 Portable 5-in-1 Hub with Smart Power
	Power Adapter 100W 20V5A
	CAC-1571, USB4 Type-C Gen3x2 Bi-Directional Cable 40Gbps 8K60Hz 100W PowerDelivery M/M 0.8m / 2.62ft
	QIG, Quick Installation Guide
Available Interfaces
Upstream	1x Thunderbolt 4 Receptacle (to host)
Upstream	Support max 60W, 5V/9V/15V/20V@3A Host charging
Downstream	3x Thunderbolt 4 Receptacle
Downstream	1x USB Gen2 Type-A, Max. 10Gbps data transmission, downward compatible with lower versions, Max. 900mA downstream charging
Other info	Box size: 22 x 15 x 7cm / 8.6 x 5.9 x 2.76"
	Hub dimensions: 12.4 x 7.4 x 1.3 cm / 4.88 x 2.91 x 0.51"
	Power Supply dimensions: 15.5 x 5.7 x 3.4 cm / 6.1 x 2.24 x 1.34"
	Power Cable Length approx.: 1.8 m / 6 ft
	Product Weight: 165 gr / 5.82 oz
	CAC-1571 Product Weight: 73 gr / 2.58 oz
	Power Supply Weight: 595 gr / 20.99 oz
	Box Weight: 126 gr / 4.44 oz
	Total Weight: 959 gr / 33.83 oz
	Meets ROHS, FCC, and CE EMI requirements
