Overview

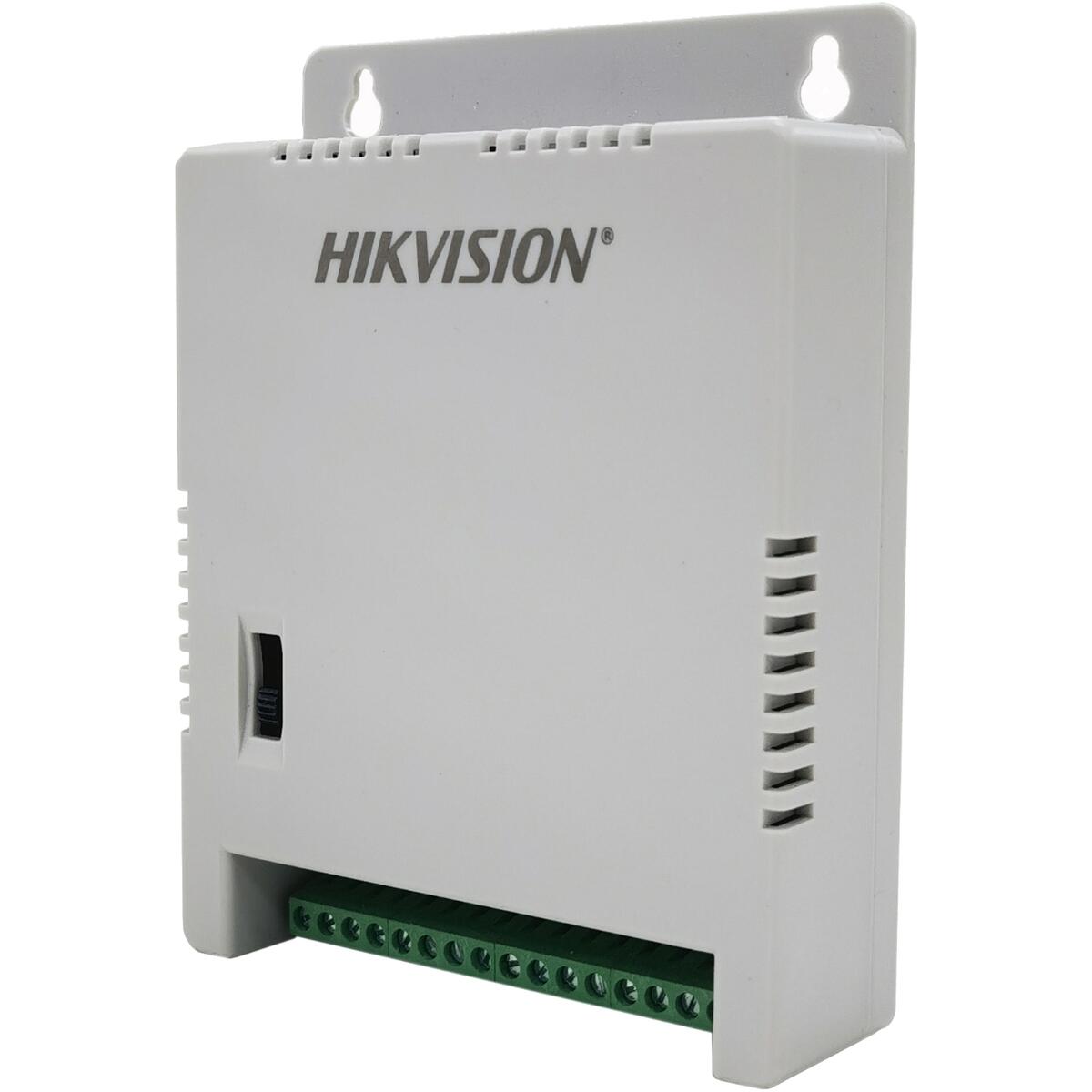

The Hikvision DS-2FA1205-C8(EUR) is an 8-channel CCTV power supply designed to provide stable 12V DC power for compatible surveillance cameras. With a total 60W output, each channel delivers up to 1A, making it a practical choice for CCTV installations requiring centralized power distribution. The unit supports a wide 150 to 285 VAC input range and incorporates protection against over current, short circuits and over voltage.

Description

The Hikvision DS-2FA1205-C8(EUR) multi-channel SMPS provides reliable centralized power for CCTV camera systems while helping simplify installation and cable management. Its compact design makes it suitable for surveillance applications where space is limited, while the built-in protection functions help safeguard the power supply and connected equipment against common electrical faults.

With eight independent 12V DC output channels and 1A available per channel, the DS-2FA1205-C8(EUR) can supply power to multiple compatible CCTV cameras from a single unit. The power supply also offers good EMC performance and a wide input voltage range for dependable operation in different electrical environments.

Features

Hikvision 8 Channel CCTV Power Supply
The DS-2FA1205-C8(EUR) is designed for CCTV systems that require multiple camera connections from a centralized 12V DC power source. Instead of using separate power supplies for individual cameras, this multi-channel unit provides eight outputs from one compact enclosure.

Each output channel is rated at 12V DC and 1A, with a combined power capacity of 60W. This makes the unit suitable for powering compatible CCTV cameras in residential, commercial and other surveillance installations.

Key Technical Details

• Model: Hikvision DS-2FA1205-C8(EUR)
• Power type: Multi-channel switched-mode power supply
• Input voltage: 150 to 285 VAC
• Output voltage: 12 VDC
• Number of channels: 8
• Output per channel: 12 VDC / 1A
• Total output power: 60W
• Protection: Over current, short circuit and over voltage protection
• EMC performance: Designed for good electromagnetic compatibility
• Design: Compact enclosure suitable for CCTV camera applications
• Power cable: 1m AC cord with South African plug

Reliable Power Distribution for CCTV Cameras
Centralized CCTV power distribution can make surveillance installations easier to manage, particularly when several cameras are installed in the same area. The eight-channel design provides dedicated power outputs for compatible cameras while keeping the installation organized.

The built-in electrical protection helps reduce the risk associated with over current, short circuits and over voltage conditions. Its wide input voltage range also allows the power supply to operate across a broad AC voltage range.

Compact CCTV Power Supply Design
The compact construction of the Hikvision DS-2FA1205-C8(EUR) makes it suitable for CCTV installations where efficient use of space is important. It is intended for use with compatible surveillance cameras and provides a centralized alternative to multiple individual camera power adapters.

The included 1m AC power cord with a South African plug provides a convenient connection to the mains supply, making the unit suitable for local CCTV installation requirements.

Part Number and Model
The part number / SKU for this product is HK-304901236 . The available model is Hikvision DS-2FA1205-C8(EUR), also identified as DS-2FA1205-C8.

Suitable Applications
This 8-channel Hikvision CCTV power supply is well suited to installations requiring centralized 12V DC power for multiple compatible cameras. Typical applications include:

• CCTV camera installations
• Residential surveillance systems
• Commercial security systems
• Small office CCTV installations
• Centralized camera power distribution
• Multi-camera security installations

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-2FA1205-C8
Parameters
Appearance	White
Dimension	144 mm x 109.5 mm x 33 mm (5.67" x 4.31" x 1.30")
Operating Conditions	0degreesC to 40degreesC (32degreesF to 104degreesF), Humidity: 10% to 95% (non-condensing)
LED Indicator	Green
Input	150 to 285 VAC, 47 Hz to 63 Hz
Output	12 VDC/1 A per channel
Ripple & Noise 150 mVp-p	0.15 Vp-p (150 mV)
AC Input Connector	C8
DC Output Connector	DC Plug: grid terminal
Storage Conditions	-40degreesC to 80degreesC (-40degreesF to 176degreesF), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation	Normal: 12 VDC
	Long: 13.5 VDC
	Ex-Long: 15 VDC
