GC-JVA01

Overview:

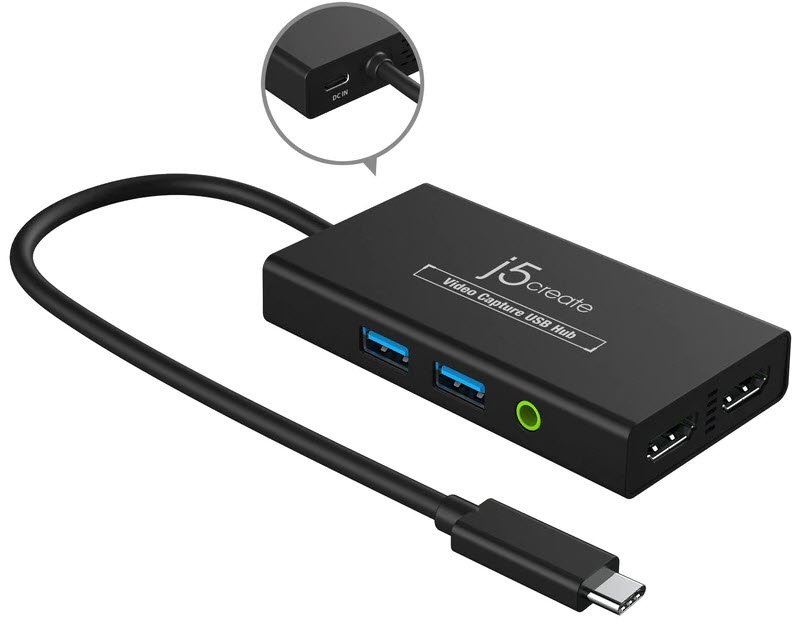

The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.

Features:

UVC Capture

• HDMI™ to USB-C® with 60W Power Delivery
• Power Delivery 3.0 lets you stream live without interruption
• Ultra-low latency stream through USB-C® 3.2 connection
• 3.5 mm audio jack allows you to connect headphones or speakers
• 2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
• UVC standard - No driver installation required
• Field production made easy with its compact size

USB-C® Hub with 4K HDMI™

• Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz
• USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
• 2 x USB™ Type-A ports provide up to 5Gbps transfer speed
• 3.5 mm audio jack allows you to connect headphones or speakers
• No driver installation required for Windows® or macOS®

System Requirements:

• For UVC Capture - Recommended software: OBS™ / CameraFi™ Live
• Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0
• Windows® 10 / 11
• macOS® X 10.10 or later with UVC support
• Chrome OS™ with UVC support
• Android™ 7 and higher

For USB-C® Hub

• Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended). Please refer to the manufacturer of your hardware for more information on your device.
• DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution

For USB-C® Game Consoles

• When using your game console, we recommend using a charger higher than 30W PD USB-C® to charge your console.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	GC-JVA01
Hardware
Host Connector	1 - USB-C 3.2 Female
Video Input	1 - HDMI Female
Video Output	1 - HDMI Female
Audio Input	No
Audio Output	1 - 3.5mm AUX
Video Switcher	No
Audio Switcher	No
Power Source	Bus-powered or self-powered (USB-C PD power)
Ports	1 - USB-C PD 3.0
	1 - HDMI Input
	1 - 4K HDMI Output
	1 - 3.5 mm audio jack
	2 - USB Type-A (5Gbps)
Performance
Supported Resolutions	HDMI In: 3840 x 2160
	USB-C display: 3840 x 2160
	Capture/Record: 1920 x 1080
Maximum Display Refresh Rate	30 Hz
Audio Channel	2.1 via HDMI
Audio Frequency	48 kHz
Microphone	N/A
Headset	2.1 Stereo
Compression	USB 2.0: MJPEG
Encode Format	MJPEG
HDR Supported	No
Power
Power Delivery	Up to 60W via USB-C
Power Consumption	≤ 450 mA
Input Current	3A
Input Voltage	20V
Output Current	3A
Output Voltage	20V
Physical Specifications
Color	Black
Enclosure Type	Plastic
Cable Length	11.8 in. (30 cm)
Product Height	0.59 in. (15 mm)
Product Width	1.98 in. (50.5 mm)
Product Depth	3.79 in. (96.5 mm)
Product Weight	2.43 oz (69g)
Storage Temperature	14 to 149°F (-10 to 65°C)
Storage Humidity	< 85% non-condensing
Operation Temperature	32 to 104°F (0 to 40°C)
Operation Humidity	< 80% non-condensing
