Overview

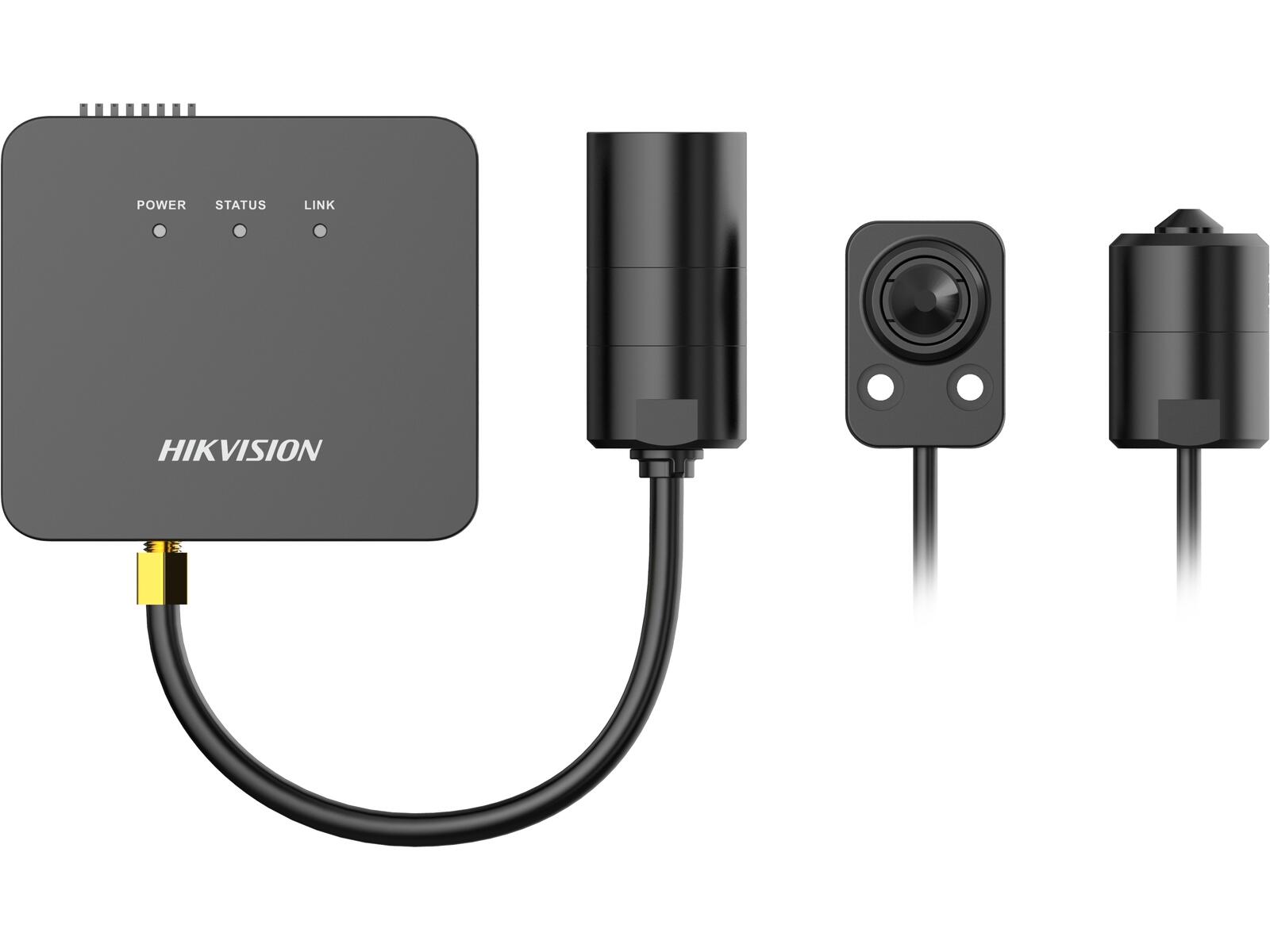

Hikvision DS-2CD6425G1-20 2MP Separated Network Camera
The Hikvision DS-2CD6425G1-20 is a 2MP separated network camera designed for reliable Full HD surveillance in applications where discreet camera installation and flexible positioning are important. It delivers 1920 x 1080 resolution with clear image quality, while the 2.8mm lens provides a wide viewing perspective for monitoring indoor and general security areas.

The camera supports efficient H.265 and H.264 video compression to help reduce bandwidth and storage requirements. Its 120 dB true WDR technology improves image quality in scenes with strong backlighting, while 3D DNR helps reduce image noise for cleaner and sharper video.

Description

This Hikvision 2MP network camera combines Full HD video, advanced image processing and flexible connectivity in a separated camera design. The 2 metre lens cable allows the camera lens to be positioned separately from the main camera body, making it suitable for installations where a compact or discreet viewing position is required.

Audio and alarm connections provide additional options for integrating the camera into a wider security system. A built-in memory card slot also supports local recording, while the RJ45 Ethernet connection provides network connectivity for video access and camera management.

Features

Clear 2MP Surveillance Imaging
The camera captures video at up to 1920 x 1080 resolution, providing detailed Full HD footage for everyday security monitoring. Backlight conditions are handled using 120 dB WDR, helping maintain usable detail in areas where bright and dark sections appear together.

Additional image processing includes:

• 120 dB true WDR for improved backlight performance
• 3D DNR for reduced image noise
• BLC and HLC for challenging lighting conditions
• Defog support for improved visibility in hazy conditions
• Support for one fixed region of interest (ROI)

Network and Recording Connectivity
The DS-2CD6425G1-20 uses a 10/100 Mbps self-adaptive RJ45 Ethernet port for network connectivity. Video compression supports both H.265 and H.264, helping optimise network traffic and storage usage.

A built-in memory card slot provides an option for local video storage, depending on the selected memory card and recording configuration. The camera can also support up to 15 simultaneous live viewing channels.

Audio and Alarm Integration
For installations requiring more than video surveillance, the camera includes dedicated audio and alarm interfaces. The available connections allow it to integrate with compatible security equipment and external devices.

• 1 x line-in audio input
• 1 x line-out audio output
• 1 x alarm input
• 1 x alarm output
• 1 x RS-485 interface
• Motion detection support

Separated Camera Design
One of the main advantages of this Hikvision camera is its separated design. The 2 metre lens cable allows the lens and camera body to be positioned independently, which can be useful for discreet installations, access control points, retail environments and other areas where the camera body needs to be positioned away from the viewing location.

The supplied model is the DS-2CD6425G1-20(2.8mm)2m(O-STD), fitted with a 2.8mm lens and a 2 metre lens cable.

Key Technical Details

• Model: DS-2CD6425G1-20(2.8mm)2m(O-STD)
• Resolution: 2MP, 1920 x 1080
• Lens: 2.8mm
• Video compression: H.265 / H.264
• Ethernet: 1 x RJ45 10M/100M self-adaptive port
• Audio: 1 x line-in and 1 x line-out
• Alarm: 1 x input and 1 x output
• Serial interface: 1 x RS-485
• Local storage: Built-in memory card slot
• Lens cable: 2 metres
• Viewing: Up to 15 simultaneous live view channels
• Image processing: WDR, BLC, HLC, Defog and 3D DNR
• Detection: Motion detection
• ROI: 1 fixed region of interest

Part Number / SKU
For ordering and product identification, the part number / SKU is HK-311318349 . The full model designation is DS-2CD6425G1-20(2.8mm)2m(O-STD).

The Hikvision DS-2CD6425G1-20 is a practical choice for network surveillance installations requiring Full HD imaging, efficient video compression, flexible audio and alarm connectivity, local storage support and a separated camera design for discreet positioning.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-311318349
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	1920 x 1080
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON)
Shutter Time	1/3 s to 1 / 100,000 s
Lens
Focal Length & FOV	L10/L20 model:
	2.8 mm: horizontal FOV: 93.9degrees, vertical FOV: 51.7degrees, diagonal FOV: 109.3degrees
	3.7 mm: horizontal FOV: 75.5degrees, vertical FOV: 41.6degrees, diagonal FOV: 87.3degrees
	L30 model:
	2.8 mm: horizontal FOV: 107.8degrees, vertical FOV: 57.9degrees, diagonal FOV: 126.7degrees
	4 mm: horizontal FOV: 82.8degrees, vertical FOV: 45.1degrees, diagonal FOV: 98degrees
Lens Mount	L10/L20: Mini
	L30: M12
Iris Type	Fixed
Aperture	L10/L20:
	2.8 mm: F2.5
	3.7 mm: F2.5
	L30:
	2.8 mm: F2.0
	4 mm: F2
DORI
DORI	L10/L20:
	2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m
	3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m
	L30:
	2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m
	4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
Video
Main Stream	50 Hz: 25 fps (1920 x 1080, 1280 x 720)
	60 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-Stream	50 Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
	60 Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream	50 Hz: 1 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360, 320 x 240)
	60 Hz: 1 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression	Main stream: H.265/H.264
	Sub-stream: H.265/H.264/MJPEG
	Third stream: H.265/H.264
H.264 Type	Baseline Profile / Main Profile / High Profile
H.265 Type	Main Profile
Bit Rate Control	CVR/BVR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	Support 1 fixed region for main stream
Audio
Audio Type	Mono
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View	Up to 15 channels
API	Open Network Video Interface, ISAPI, SDK, ISUP 5.0
User/Host	Up to 32 users
	3 level: administrator, operator, and user
Network Storage	NAS (NFS, SMB/CIFS)
Client	iVMS-4200, Hik-Connect
Web Browser	Plug-in required live view: IE10, IE11
	Plug-in free live view: Chrome 57.0+, Firefox 52.0+
	Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
Image Enhancement	BLC, HLC, defog, 3D DNR
Privacy Mask	Yes
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
Audio	1 input (line in), 1 output (line out)
Alarm	1 input, 1 output (max. 12 VDC, 30 mA)
RS-485	1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key	Yes
Event
Basic Event	Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
Smart Event	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
	Audio exception detection, defocus detection, scene change detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
General
Power	12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block
	PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W
Dimension	Main body: 77.5 mm x 69 mm x 26 mm (3.1" x 2.7" x 1.0")
	L10: Ø26 mm x 40 mm (Ø1.0 x 1.6")
	L20: 37 mm x 26 mm x 25 mm (1.5 x 1.0" x 1.0")
	L30: Ø26 mm x 50 mm (Ø1.0 x 2.0")"
Package Dimension	Kit/Main body: 254 mm x 164 mm x 130 mm (10" x 6.5" x 5.1")
	Camera: 219 mm x 139 mm x 100 mm (8.6 x 5.5" x 3.9")"
	Main body: approx. 90 g (0.2 lb.)
	Camera: approx. 90 g (0.2 lb.)
With Package Weight	Main body: approx. 456 g (1.0 lb.)
	Package (with 8 m cable): approx. 991 g (2.2 lb.)
	Package (with 2 m cable): approx. 776 g (1.7 lb.)
	Camera (with 8 m cable): approx. 676 g (1.5 lb.)
	Camear (with 2 m cable): approx. 451 g (1.0 lb.)
Storage Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Language	18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
General Function	One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
Length of Lens Cable	2 m (6.6 ft.) and 8 m (26.2 ft.) optional
Approval
EMC	FCC (47 CFR Part 15, Subpart B)
	CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014)
	RCM (AS/NZS CISPR 32: 2015)
	IC (ICES-003: Issue 7)
	KC (KN 32: 2015, KN 35: 2015)
Safety	UL (UL 62368-1)
	CB (IEC 62368-1:2014+A11)
	CE-LVD (EN 62368-1:2014/A11:2017)
	BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005)
	LOA (IEC/EN 60950-1)
Environment	CE-RoHS (2011/65/EU)
	WEEE (2012/19/EU)
	Reach (Regulation (EC) No 1907/2006)
