M3000W

Overview:

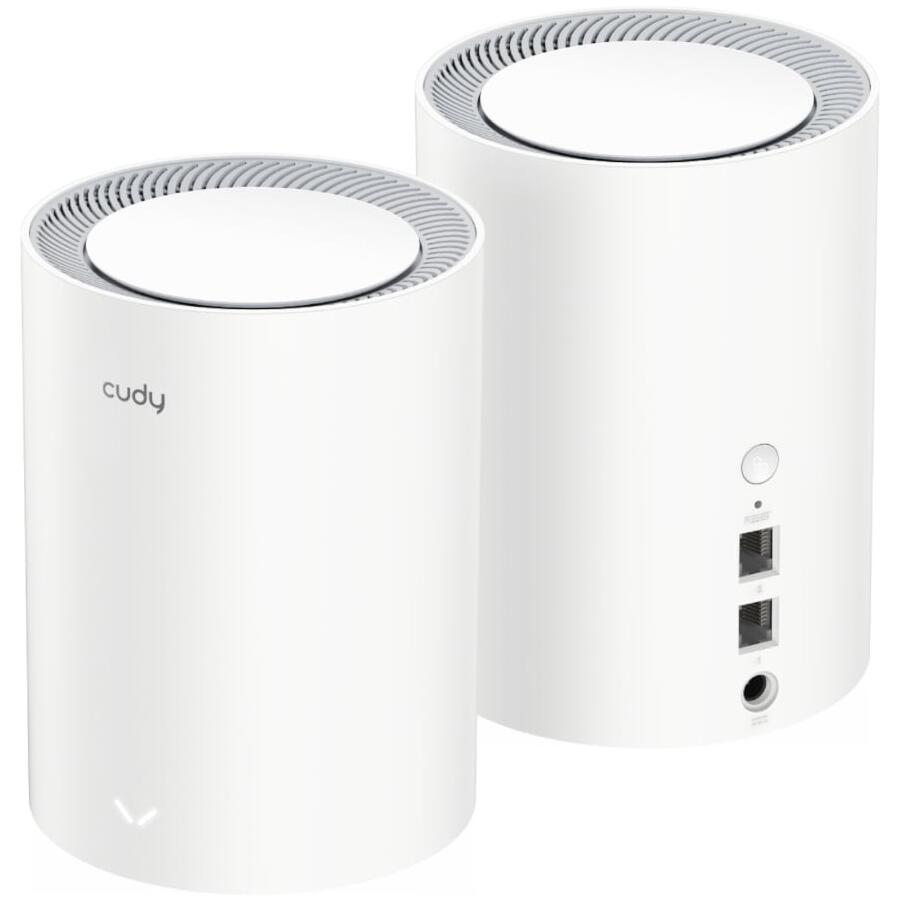

Cudy AX3000 Wi-Fi 6 Mesh Kit 2 Pack - White
The Cudy AX3000 Mesh Wi-Fi 6 System is a powerful networking solution designed to meet the demands of modern homes with high-bandwidth activities like 4K streaming, online gaming, and smart home integration. Featuring five advanced antennas and Wi-Fi 6 technology, it delivers blazing speeds of up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, ensuring seamless connectivity across your home. With coverage options for spaces up to 6500 sq ft using a three-pack system, it's the perfect choice for large households or multi-level homes with demanding internet needs.

Advanced parental controls allow you to manage online activity by setting time limits and blocking inappropriate websites, ensuring a safe browsing environment for kids. Security is enhanced with WPA3 encryption, protecting your network from brute-force attacks, while a Guest Network feature keeps your personal devices separated from visitors' devices for an added layer of privacy. Additionally, the system supports six built-in VPN protocols, offering compatibility with over 50 VPN providers and enabling you to host your own VPN server for secure remote access.

With a 1.3 GHz dual-core CPU and efficient system tools, the Cudy AX3000 ensures reliable performance and easy network management. The intuitive system panel provides clear insights into network status, while the built-in diagnostic tool simplifies troubleshooting. Whether you're managing over 200 connected devices, running simultaneous streams, or maintaining a secure and private network, the Cudy AX3000 Mesh Wi-Fi 6 System offers a dependable and versatile solution tailored for today's connected lifestyle.

Features:

• 4-Stream Dual-Band Wi-Fi 6
• 2402Mbps + 574Mbps Wi-Fi 1
• 200 Connected Devices 2
• Fast Roaming
• Cudy Mesh, VPN Server and Client
• Multi-Band Simultaneous Backhaul
• Cudy App, Cloud Control
• Contains 2 x Mesh Units

WHAT'S IN THE BOX:

• Cudy AX3000 Mesh Wi-Fi 6 System - White x2
• Power Adapter x1
• Ethernet Cable x1
• Installation Guide x1

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	M3000W
Chipset	MT7981
CPU Details	1.3 GHz Dual-Core, ARM Cortex-A53
Flash/ROM	128 MB (1Gbit) NAND
DDR/RAM	256 MB (2Gbit) DDR3
5.0GHz Wi-Fi Speed	2402Mbps
2.4GHz Wi-Fi Speed	574Mbps
5.0GHz Wi-Fi Streams	2T2R (2x2 MIMO)
2.4GHz Wi-Fi Streams	2T2R (2x2 MIMO)
Wi-Fi Antennas	5x Internal
5.0GHz Antenna Gain Max	5.1dBi
2.4GHz Antenna Gain Max	4.2dBi
FEM or PA/LNA	5 GHz: 3x Internal , 2.4 GHz: 2x Internal
Beamforming	True
Range Performance	Max: 220 m (722 ft) Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4") , One concrete wall with thickness < 20 cm (7") or two concrete walls with thickness < 10 cm (4")
Multi-Pack Indoor Coverage
2 Pack	400 m² (4300 sq ft)
3 Pack	600 m² (6500 sq ft)
	Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
Interfaces
2.5G RJ45 Ports	1
Gigabit RJ45 Ports	1
Ethernet Notes	The 2.5G port is WAN port, the Gigabit port is LAN port
LED	System , Speed/Link/ACT of Ethernet Port
Physical Buttons	WPS Button , Reset Button
Power Input	DC Jack
Power Methods	DC
DC	12V 1A
Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC , Output: 12V 1A DC
Operating Temperature	0 °C ~ 40 °C (32 °F ~104 °F)
Storage Temperature	-40 °C ~ 70 °C (-40 °F ~ 158 °F)
Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 95% non-condensing
Certifications	FCC, CE
Product Dimensions	11 x 15.4 cm
Product Weight	360g
