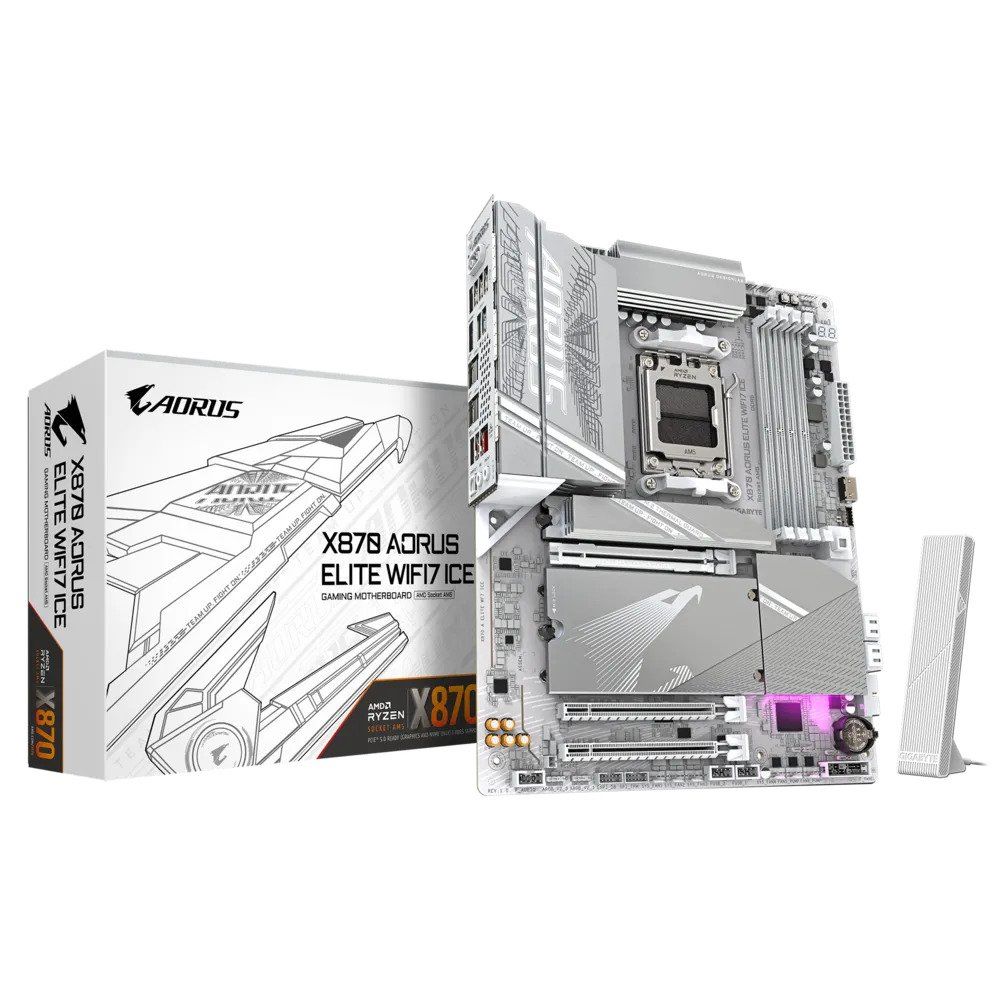

MB-GX870-AEW+W

Features:

• AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5:4*DIMMs with AMD EXPO™ Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click:M.2 heatsinks with screwless design
• Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

AORUS AI SNATCH Bullet Point
Unleash Ultimate Performance with One-Click Activation.

Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration
Enhance DDR5 speeds with a single click.

Fast AI Performance
Accelerate AI processing for greater performance

Up to 8% AI Performance*

• Accelerated AI decision-making
• Boosted reinforcement learning
• Streamlined language processing

Enhanced Memory Performance
Boost system speed and performance.

Up to 9% Memory Performance*

• Increased data transfer rates
• Faster application loading times
• Improved multitasking performance
• Better system responsiveness overall

Maximize performance in a snap
Enable users to easily become overclocking experts through a simple interface.

Smart & Safe overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.

Less Power Usage Optimal power-efficiency
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.

Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

AMD EXPO™ Settings
Optimize memory with AMD's user-friendly profiles.

Boost Performance
Get the most out of your system's memory.

AMD EXPO™ User Profile
Harness the power of AMD profiles to fine-tune your memory for outstanding system performance.

Custom SPD Profiles
Create and manage two unique SPD profiles, ready to transfer between machines.

Fast Performance Simulation
Automatically adjusts clock and timing parameters, quickly simulating optimal memory performance.

Profile Management
Save and load your preferred memory settings, and share them with ease.

Enhance non-overclockable DDR5 Speeds
Push the limits of your non-overclockable DDR5 memory with boosted frequencies.

Instant Reset
One-click to clear and restore memory settings for quick adjustments.

Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.

Unleash Revolutionary DDR5 Technology
Maximize DDR5 performance with our groundbreaking technology for an unparalleled gaming experience.

Shielded Memory Routing
Advanced shielding inside the PCB keeps your memory signals clean and interference-free.

Daisy-Chained Routing
Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.

6-layer Server-grade PCB
Top-of-the-line server-grade PCB material minimizes signal loss, providing ultra-fast DDR5 data transmission.

Steady Power
Better Play AORUS Series, steady power keeps your gaming smooth.

Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.

16 VCORE Phases DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.

2 SOC Phases DrMOS 60A
Optimized for integrated GPU performance and memory management within the CPU.

2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

VRM Thermal Armor Fins-Array
These solid heatsinks are forged to keep your system cool.

"Stay Cool, Game On"
High-coverage MOSFETs with integrated molded heatsinks

4x larger surface area for enhanced heat dissipation
With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance

Multi-cut design with channels for improved airflow

• More grooves, more airflow.
• Better airflow, cooler system.

7 W/mK thermal pad for efficient thermal conductivity

• High-performance thermal pad.
• Keeps your system cool and running at peak efficiency.

True one-piece heatsink design

• Outperforms competitors' multi-piece solutions.
• Integrated design and expanded surface area deliver exceptional cooling performance.

Ultimate Heatpipe for optimal heat transfer

• Designed for optimal thermal conductivity.
• Ensures efficient heat transfer and maintains system stability.

M.2 Thermal Guard L
with M.2 Thermal Guard Backplate

M.2 Thermal Guard Ext.
with M.2 Thermal Guard Backplate

Smart Fan 6
Efficient cooling, silent operation, and customizable features

Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.

High Current Support

• Supports both PWM and DC fans, plus water cooling pumps
• Up to 24W (12V x 2A) capacity per fan header
• Built-in over-current protection

Dual Curve Mode

• Choose between slope and stair modes
• Tailor cooling to your specific needs and preferences

Precision Control

• Multiple temperature and fan speed points
• Customizable fan curves for optimal performance

Fan Stop Technology

• Fans can be completely turned off at low temperatures
• Ensures silent operation during light loads

Enhance Fan Curve UI

• 7 adjustable control points
• Expanded speed graph for precise adjustments

Manual Input

• Fine-tune fan speeds for optimal performance
• Precise control for enthusiasts

Slope/Stair Dual Graph Mode

• Slope mode: Smooth fan speed curve
• Stair mode: Steady speeds within temperature ranges
• Easy switching between modes

EZ Tuning
Quick setup with 4 temperature and fan speed points
Automatic optimization of fan curve

Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience

WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

Fast-Access Controls
Handy, Revert, Refresh

EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

Multi-key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.

RGB Switch
Disable all light displays on the motherboard.

Direct-To-BIOS
Access the BIOS settings directly without keyboard inputs.

Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.

Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash Auto Scan, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH Plus
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

EZ-Latch Designs
User-friendly designs simplifying the assembly process.

Sensor panel Link
The built-in video port streamlines Sensor Panel setup without management concerns.

Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.

6L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.

2X Copper Enhancement
Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.

56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.

All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.

160 MHz channels
Wi-Fi 7 introduces support for expansive 160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.

Multi-link Operation
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.

4K-QAM
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.

Deterministic low latency
With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.

GIGABYTE Directional Ultra-high Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.

Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.

True High-Fidelity Music
Dive into enveloping surround sound and enjoy DSD audio playback with the Realtek ALC1220 Codec.

Audiophile Grade Capacitors
Premium Grade Audio capacitors ensure consistent power delivery, recreating a professional studio-quality sound experience.

Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

PCIe UD Slot X
The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.

10X load-bearing capacity
integrated, single-piece design anchored to a exclusive backplate

Inner Lining Rubber Strip
Safeguards your graphics card's PCB against potential damage

Zinc Alloy
Provides effective EMI shielding for high-frequency signals

M.2 UD Slot PG5
employs a unibody, stainless-steel shield design, reinforcing M.2 slots and optimizing signal integrity.

1.3X
greater strength in X-axis stress tests

1.5X
greater strength in Y-axis stress tests

Employs SMD technology
to minimize signal degradation

UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Ultra Durable PCIe Armor
Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.

Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.

Multi-Theme
Multiple BIOS skin with newly exclusive grayscale mode

AIO Fan Control
Adjust AIO fan speed in the BIOS

Multi-Theme
The newly exclusive grayscale mode provides a refreshing interface, ensuring a significantly more friendly and pleasant user experience.

AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

GIGABYTE Active OC Tuner
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.

AMD P.B.O. mode
AMD P.B.O. mode for fewer cores with the highest CPU boost clock, better for gaming.

Manual OC mode
Manual OC mode for all cores with high CPU clock, better for content creation.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MB-GX870-AEW+W
CPU	AMD Socket AM5, support for:
	AMD Ryzen 9000 Series Processors/
	AMD Ryzen 8000 Series Processors/
	AMD Ryzen 7000 Series Processors
Chipset	AMD X870
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
	- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
	* Support for DisplayPort 1.4 version and HDR.
	Integrated Graphics Processor with AMD Radeon Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	** Support native HDMI 2.1 TMDS compatible ports.
	- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
	* Support for HDMI 1.4 version
	(Graphics specifications may vary depending on CPU support.)
	Support for up to quad-display at the same time
Audio	Realtek ALC1220 CODEC
	* The back panel line out jack supports DSD audio.
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
	**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
	* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
	When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
	- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.
	1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4 controller:
	- 2 x USB4 USB Type-C ports on the back panel
	CPU+USB 3.2 Gen 1 Hub:
	- 4 x USB 3.2 Gen 1 ports on the back panel
	CPU+USB 2.0 Hub:
	- 4 x USB 2.0/1.1 ports on the back panel
	Chipset:
	- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through
	the internal USB header
	- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	- 2 x USB 3.2 Gen 1 ports available through the internal USB header
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	4 x system fan headers
	2 x system fan/water cooling pump headers
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	4 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C header, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x noise detection header
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x HDMI port (Note)
	1 x power button
	1 x reset button
	2 x temperature sensor headers
	1 x reset jumper
	1 x Clear CMOS jumper
Back Panel Connectors	1 x Q-Flash Plus button
	1 x HDMI port (Note)
	2 x antenna connectors (2T2R)
	2 x USB4 USB Type-C ports (DisplayPort (Note))
	2 x USB 3.2 Gen 2 Type-A ports (red)
	4 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	1 x optical S/PDIF Out connector
	2 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
	Noise detection
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support Smart Backup
Bundled Software	Norton Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
