About this product

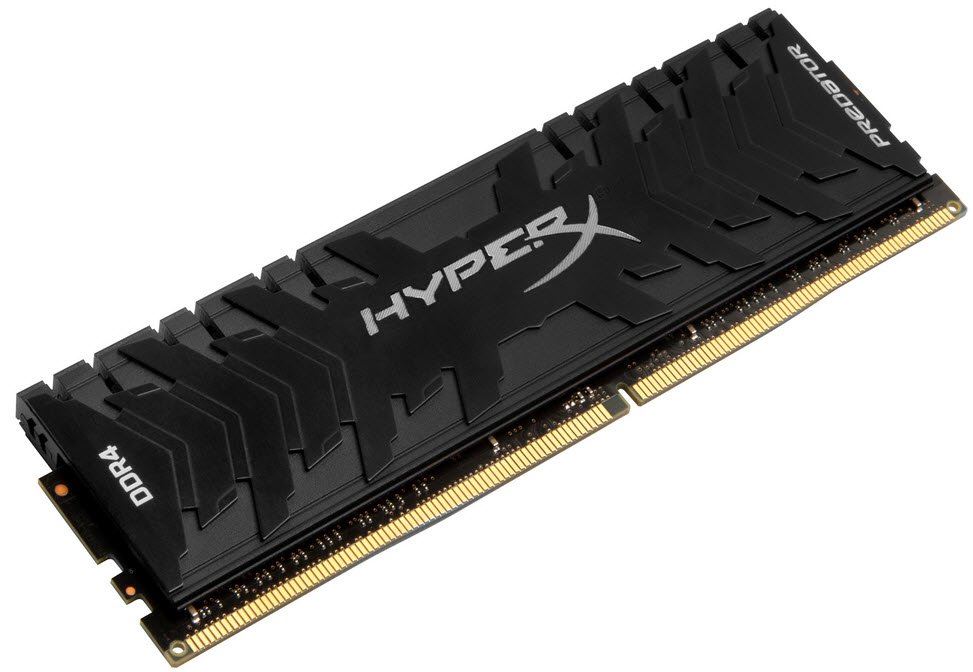

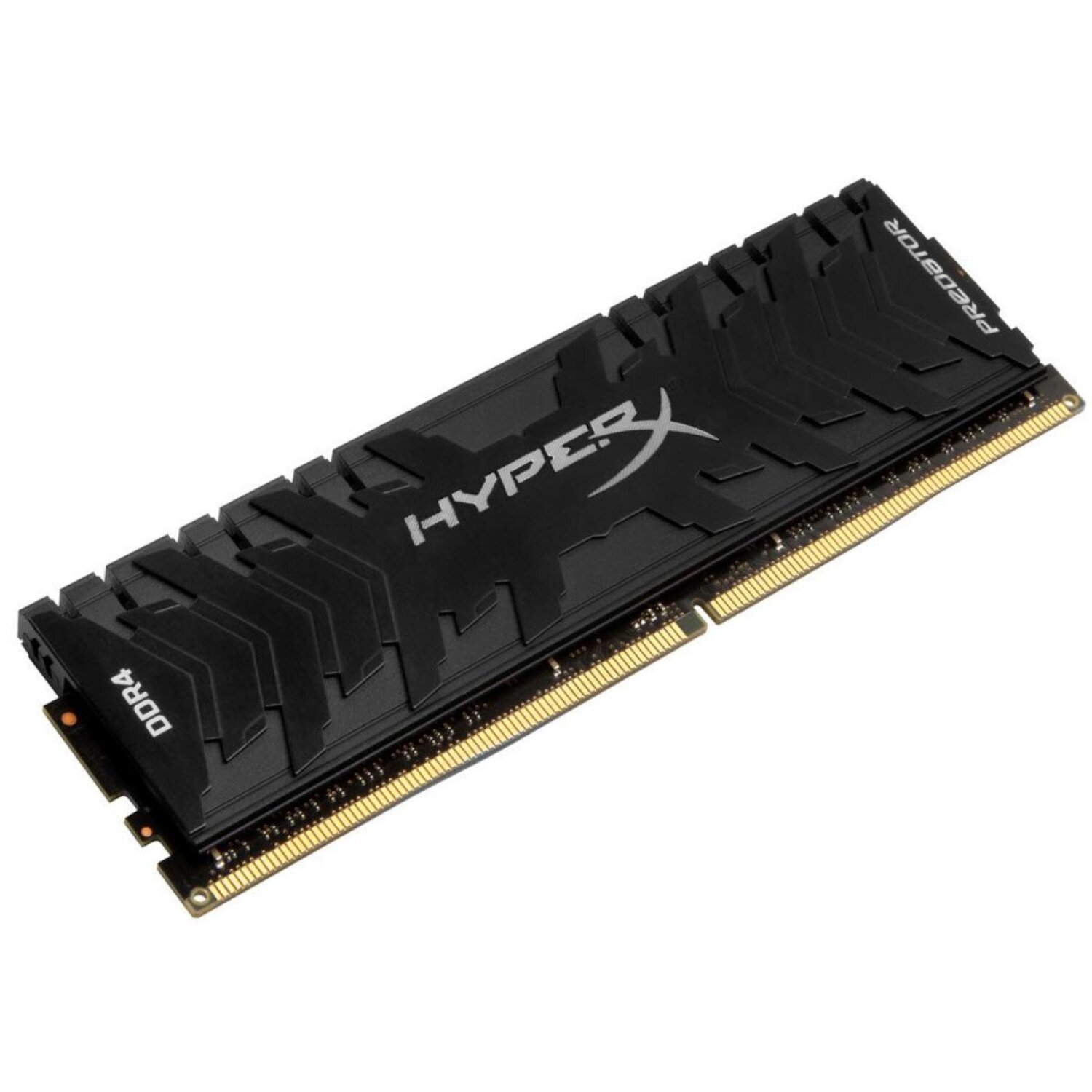

The Kingston HyperX Predator HX430C15PB3/16 is a 16GB DDR4-3000 desktop memory module designed for high performance gaming, demanding applications and PC enthusiasts. Featuring CL15 latency, Intel XMP 2.0 support, 1.35V operation and a tall aluminium heat spreader, this 288-pin DIMM provides fast memory performance with efficient heat dissipation. Buy this HyperX Predator 16GB DDR4 memory module from our website for a performance-focused PC memory upgrade.
Overview Summary
Kingston HyperX Predator HX430C15PB3/16 16GB DDR4-3000 Memory is a high-performance desktop DDR4 memory module with a 16GB capacity and a rated speed of 3000MT/s. The module uses CL15-17-17 timings at 1.35V when operating with its XMP profile.
Intel XMP 2.0 support makes it possible to use a predefined performance profile on compatible systems, while the black aluminium heat spreader helps manage heat during demanding workloads. The module uses a standard 288-pin DIMM design for compatible desktop motherboards.
Performance tier: Performance
Uses: Gaming PCs, performance desktops, multitasking, content creation, demanding desktop applications
Overview
HyperX HX430C15PB3/16 is a 2G x 64-bit (16GB) DDR4-3000 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module supports Intel(RegTM) Extreme Memory Profiles (Intel(RegTM) XMP) 2.0.
Each module has been tested to run at DDR4-3000 at a low latency timing of 15-17-17 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Description
The Kingston HyperX Predator HX430C15PB3/16 is a 16GB DDR4 desktop memory module developed for users who want fast and responsive system memory. It provides a rated DDR4-3000 speed with CL15-17-17 timing at 1.35V when using the XMP performance profile.
This module is built as a 2G x 64-bit 16GB DIMM using a 288-pin interface. The memory module is specified as 2Rx8 and uses gold contact fingers. Its black aluminium heat spreader is designed to improve heat dissipation and gives the module a distinctive Predator design suited to performance-oriented desktop builds.
Intel XMP 2.0 support provides predefined memory profiles for compatible systems. The primary XMP profile is DDR4-3000 CL15-17-17 at 1.35V, while a second XMP profile provides DDR4-2666 CL15-17-17 at 1.35V. The standard JEDEC profile is DDR4-2400 CL17-17-17 at 1.2V.
The module is suitable for compatible DDR4 desktop systems used for gaming, multitasking, content creation and other memory-intensive applications. System compatibility depends on the motherboard, processor and memory configuration, so the motherboard manufacturer's supported memory specifications should be checked before installation.
Features
The HyperX Predator HX430C15PB3/16 combines high-speed DDR4 performance with low latency and Intel XMP support for compatible desktop systems.
- 16GB capacity: Provides 16GB of system memory in a single DIMM.
- DDR4-3000 performance: Rated for 3000MT/s operation using the primary XMP profile.
- CL15 latency: Uses 15-17-17 timings at the primary XMP setting.
- Intel XMP 2.0: Supports predefined memory profiles on compatible Intel XMP systems.
- 1.35V XMP operation: The rated DDR4-3000 XMP profile operates at 1.35V.
- 288-pin DIMM: Uses a standard 288-pin desktop DDR4 memory interface.
- Aluminium heat spreader: The black aluminium heat spreader is designed to assist heat dissipation.
- Dual-rank design: The module is specified as 2Rx8.
- Gold contacts: Uses gold contact fingers for the DIMM interface.
- Multiple memory profiles: Includes DDR4-3000 and DDR4-2666 XMP profiles, plus a DDR4-2400 JEDEC profile.
What's in the Box
- 1 x Kingston HyperX Predator HX430C15PB3/16 16GB DDR4 memory module
Specifications
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications and features |
| Product Code | ME-KD41630P15 |
| CL(IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| Maximum Operating Power | TBD W |
| UL Rating | 94 V - 0 |
FAQ
What is the capacity of the Kingston HX430C15PB3/16?
The Kingston HX430C15PB3/16 has a 16GB capacity and is supplied as a single 16GB DDR4 memory module.
What speed does the Kingston HyperX Predator HX430C15PB3/16 support?
The module is rated for DDR4-3000 or 3000MT/s when operating with its primary XMP profile.
What is the CAS latency of this HyperX Predator memory?
The primary DDR4-3000 XMP profile uses CL15-17-17 timings.
Does the Kingston HX430C15PB3/16 support Intel XMP?
Yes. The module supports Intel XMP 2.0 and includes a DDR4-3000 CL15-17-17 profile at 1.35V and a DDR4-2666 CL15-17-17 profile at 1.35V.
What type of motherboard does this RAM require?
The HX430C15PB3/16 is a 288-pin DDR4 desktop DIMM and requires a compatible motherboard with DDR4 DIMM support. Compatibility should be confirmed against the motherboard and processor specifications.
Can the Kingston HX430C15PB3/16 be used for gaming?
Yes. Its 16GB capacity, DDR4-3000 speed and CL15 timing make it suitable for compatible gaming desktop systems and other performance-oriented PC applications.
Does this HyperX Predator memory have a heatsink?
Yes. The module features a black aluminium heat spreader designed to assist heat dissipation during operation.
What is the physical height of the Kingston HyperX Predator module?
The official module height is 42.20mm, which is a tall heat spreader design. Check available clearance when using large CPU coolers.
What voltage does the DDR4-3000 profile use?
The primary DDR4-3000 XMP profile operates at 1.35V. The standard JEDEC DDR4-2400 profile operates at 1.2V.
