Overview:

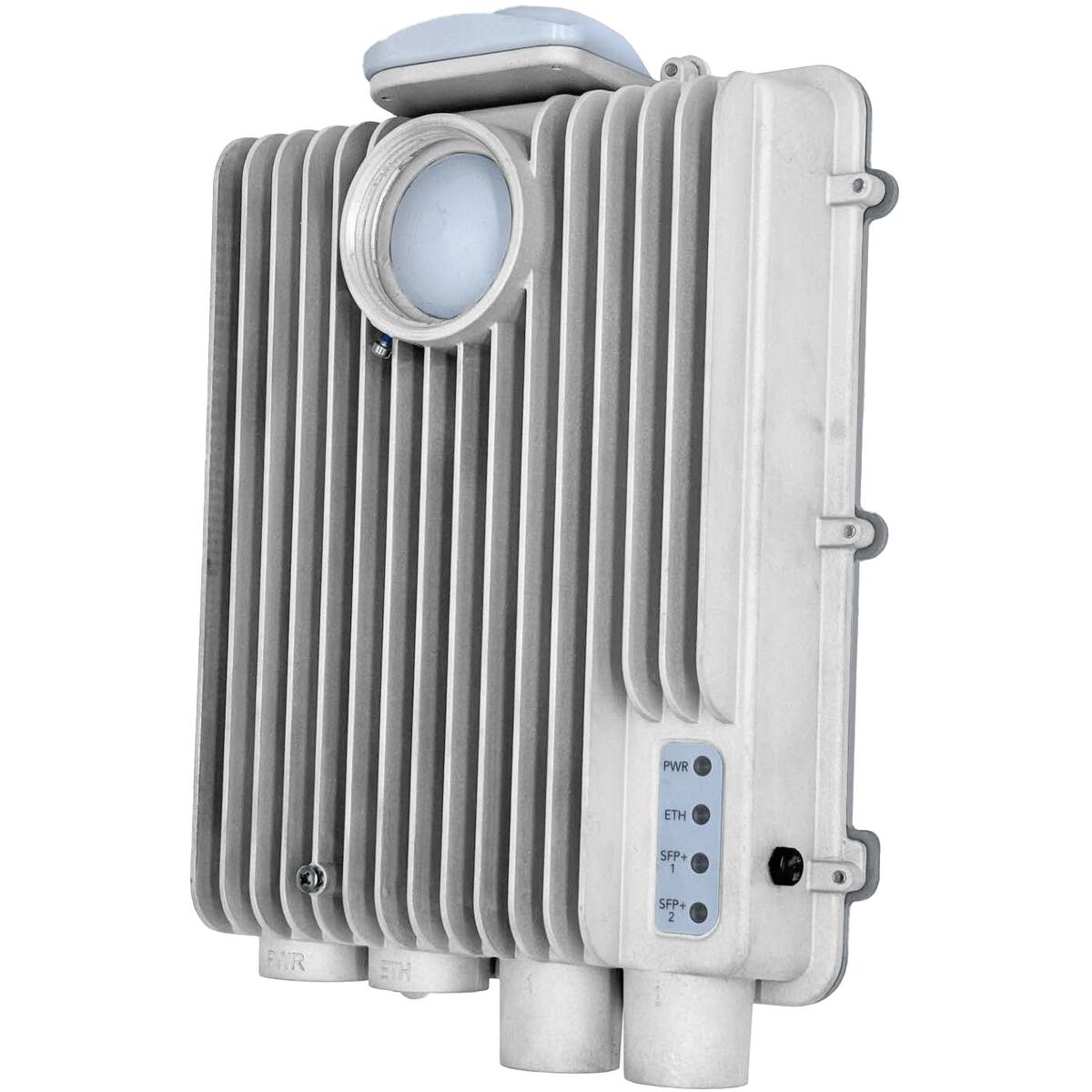

C6x CLIENT RADIO
Super Flexible and Super Fast

The C6x sets a new bar for affordable speed, as well as interference reduction. With the latest in Wi-Fi 6E technologies, and access to new 6 GHz bands (which varies by country), the C6x achieves up to 1.75 Gbps. The C6x can be used as a PTMP (point-to-multipoint) client radio.

Features:

Integrated Radio with Modular Antenna Options
The C6x's native 8 dBi gain can be increased to 12, 16, 20, 25, or 30 dBi using Mimosa's modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility for short to long range deployments.

Superior Noise Mitigation
The C6x reduces in-band noise impact across the operating channel with dramatically smaller 2 MHz resource units (RU) sizes instead of legacy OFDM solutions, where any noise impacted the full channel. Thanks to Wi-Fi 6E technology, the C6x can even be used in dense, urban environments.

Take PTMP to a New Level
Achieving up to 1.75 Gbps in PTMP (point-to-multipoint) deployments, the C6x pairs together with new multi-user OFDMA scheduling and beamforming technologies on the A6 access point to enable massive subscriber scaling, advanced noise management, and access to the new, low-noise 6 GHz band.

Ultra-Rugged
The C6x is IP67 rated, which means it can withstand the harshest elements and environments. Coupled with next-gen RF noise fighting features and new low-noise 6 GHz band support, the C6x leads the way in dependable connectivity.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MIM-B6X
Performance
Max Throughput	Up to 3.4 Gbps IP aggregate UL/DL (4.3 GbpsPHY)
Wireless Protocols	TDMA, TDMA-FD, Auto-TDD
Low Latency	<1 ms in auto mode
Radio
Modulation	4x4 MU-MIMO, OFDMA 1024QAM
Bandwidth	Single or dual 160 MHz channels, 320 MHz aggregate channel capacity
Frequency Range	5150-6425 MHz Restricted by country of operation
Max Output Power	24 dBm
Sensitivity (MCS 0)
Sensitivity (MCS 0)	o @ 1024 QAM -47 dBm
	o @ 160 MHz -50 dBm
	o @ 80 MHz -53 dBm
	o @ 40 MHz -56 dBm
Power
Max Power Consumption	30 W
System Power Method	PoE Port, or via the separate DC port
System Lightning & ESD Protection	6 kV
PoE Power Supply	Passive POE compliant, 48-56 V (PoE injector not included)
Dimensions
Height	290 mm (11.4")
Width	167mm (6.6")
Depth	89mm (3.5")
Weight	1.7 kg (3.7 lbs)
RF Connector Type	N5-X twist-on
Enclosure Characteristics	Die-cast aluminum
Mounting	Requires two standard pole straps for mounting to 30 mm (1.2") to 90mm Bracket with + - 20 degrees elevation adjustement is needed.
Features
Dual SFP+	10 Gbps Fiber via SFP+ cage. Single or multi-mode compatibility. (SFP insert modules not included)
Gigabit Ethernet	10/100/1000 BASE-T
Dual Link Operation	Dual 2x2 radios operating with independent asymmetric channel and link auto-adaption for each radio channel pair, Automatic load balancing of traffic across 2 non-contiguous channels (4 total MIMO streams)
Management Services	Mimosa Cloud, MMP, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum Management	Active scan monitors/logs ongoing RF interference across channels (no service impact), Dynamic auto-optimization of channel and bandwidth use
Security	128-bit AES PSK with hardware acceleration
QoS	4 classes of QoS, with user configurable priority queuing, weighted fair queuing, MIR, CIR, and rate limiting
GPS Location	GNSS-1 (GPS + GLONASS)
Collocation Synchronization	1PPS GPS TX/RX synchronization for collocated co-channel radios, Adjustable up/downstream bandwidth ratio
Part Number	100-00116
