MLY-D24M-A23PZ-R1

Overview:

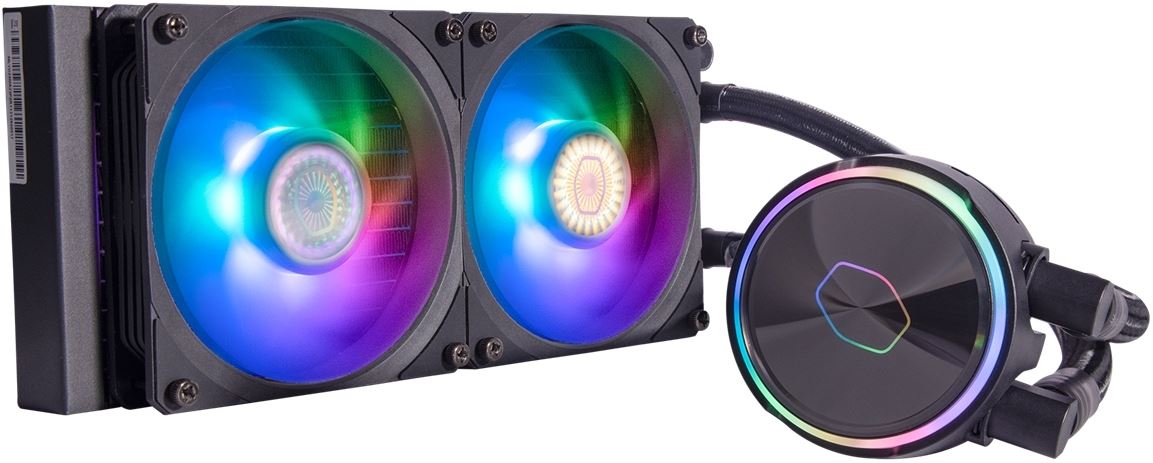

Masterliquid PL240 Flux

• Premium Dual Chamber Pump
• Fine Tuned Performance Ratio
• Superior Heat Exchange
• Low Profile Radiator
• Redesigned Flux Series Fan
• Dual Loop ARGB Pump

Features:

Cooling Uncompromised
Cooler Master's Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.

Premium Dual Chamber Pump
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.

Fine Tuned Performance Ratio
Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.

Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.

Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.

Redesigned Flux Series Fan
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.

Dual Loop ARGB Pump
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.

Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Masters MasterPlus+ software to customize individual LED colors, effects, brightness and more - all from an intuitive, convenient interface.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	MLY-D24M-A23PZ-R1
Product Number	MLY-D24M-A23PZ-R1
Exterior Color	Black
CPU Socket	LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4
Radiator Material	Aluminum
Radiator Dimensions	277 x 119.6 x 27.2 mm / 10.7 x 4.7 x 1.07 inch
Pump Dimensions	89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch
Pump MTTF	>210,000 hours
Pump Noise Level	15 dBA (Max)
Pump Connector	4-Pin (PWM)
Pump Rated Voltage	12 VDC
Pump Power Consumption	6W
Fan Dimensions (L x W x H)	120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan Quantity	2 PCS
Fan LED Type	Addressable Gen 2 RGB
Fan Speed	0-2300 RPM ± 10%
Fan Airflow	72.37 CFM (Max)
Fan Noise Level	32 dBA
Fan Pressure	2.96 mmH2O (Max)
Fan Bearing Type	Loop Dynamic Bearing
Fan Life Expectancy	>160,000 Hours
Fan Power Connector	4-Pin (PWM)
Fan Rated Voltage	12VDC
Fan Rated Current	0.15A
Fan Safety Current	0.3A
RAM Clearance	N/A
Series	MasterLiquid Pro
Cooler Type	Liquid Cooler
Radiator Size	240
