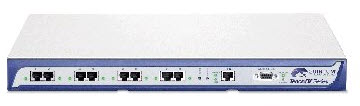

QT-DX-4060 Quintum DX 4060 Rack Mount 4 E1 VoIP Multipath Switch, 60 Channels
Images are for illustrative purposes and actual product may differ.
QT-DX-4060 VoIP handsets phonesquantum
QT-DX-4060 information and overview
Quintum DX 4060 Rack Mount 4 E1 VoIP Multipath Switch, 60 Channels, MultiPath Architecture, Universal Dial Plan, Unified Communications Proxy (UCP).
Not for sale. This is a discontinued product.
Kindly search for an alternative on our site
Subject to correction, the product was first added on 2011-06-03 and the last date we have for this product is 2014-03-19, where the last unit was sold for R 46755, which may have been a final clearance price.
Specifications & more information about QT-DX-4060, VoIP handsets phones manufactured by quantum
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Features: This product has 4 E1 Spans and 60 VoIP Channels. - Available with 2, 4, 6 or 8 T1/E1/PRI Spans.* Model dependent
- Up to 120 VoIP channels.* Model dependent
- Available in MultiPath or Gateway Configurations.
- Auto-Provisionable.
- Survivable.
- Unified Communications Proxy (UCP).
- Supported by Remote Management Tools.
- Perfect for enterprises and service providers deploying VoIP applications.
- Automatic call type detection: Voice/Modem/Fax.
- Answer and Disconnect Supervision.
- Trunk group support.
- Public and private dial plan support.
- User programmable dial plan support.
- Forced routing.
- Pass-through support for calls to Toll Free, local and special service numbers (emergency services, etc.).
- Automatic appending and stripping of digits to dialed numbers.
- Call Detail Records.
- Least Cost Routing with external Quintum VoIP Call Routing Server.
- Caller ID Name and Number.
| © 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | Specifications for the product series | | Product Code | QT-DX-4060 | | Specifications | | Telephony Specifications | Voice algorithms: G.723.1 and G.729ab, G.711 | | Auto codec negotiation | | Fax support: Group III at 2.4, 4.8, 7.2, 9.6, 14.4 Kbps, using industry standard T.38; Super G3 compatible up to 33.6 Kbps | | Modem over IP | | Choice of 2, 4, 6, or 8 T1/E1/PRI Spans* Select correct model | | Standard RJ-45 Connectors | | Coding: A-law, μ-law | | Enhanced (Carrier Grade) Echo Cancellation: ITU Rec. G 168, up to 128 msec tailsize | | PRI Signaling Protocols: National ISDN-2, Euro ISDN NET5, Japan INS-NET1500, KDD, 4ESS, 5ESS, DMS100 | | T1 CAS (E&M, Loop Start, Feature Group-D, DTMF, MF) | | E1 CAS (R2 MF) | | DASS2 | | Tandem/TDM switching | | Maximum Call Rate: 7, 200 calls/hour | | VoIP to circuit, and circuit to circuit (Tandem/TDM) switching | | IP Network Specifications | LAN Interface: Fast Ethernet port (10/100 Base-T) | | Standard RJ-45 Interface (IEEE 802.3) for 10 Base-T or 100 Base-T connections | | QoS Support: IP TOS, DiffServ | | VoIP Network Specifications | H.323 v.3 Gateway and Integrated Gatekeeper | | Support for multiple SIP User Agents (RFC3261 compliant endpoint) | | DTMF Signaling via FRC 2833 or SIP Info | | SIP Supplementary Services | | Message Waiting Indicator | | SIP Refer Method support | | IVR/RADIUS server support for AAA with integrated multilingual IVR | | Adaptive Voice Activity Detection (VAD) with Comfort Noise Generation (CNG) | | Adaptive Jitter Buffer | | Packet Loss Compensation | | NATAccess - NAT/Firewall | | Security: IP Filtering | | Up to 120 simultaneous VoIP calls* Select correct model | | Support for DNS-SRV | | Configuration/Management | Quintum Tenor Configuration Manager (GUI) for configuration of remote individual Tenors | | Quintum Tenor Monitor (GUI) for alarm monitoring, call monitoring and CDR monitoring | | Remote Access with external Remote Management Session Server | | SNMPv2 Agent | | Command Line Interface |
