SOL-I-AS-2

Overview:

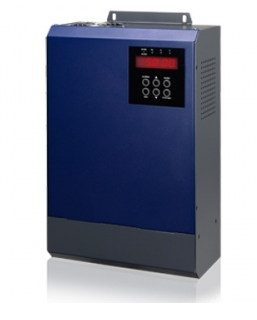

Aspire Solar Pump Inverter
The 3-phase in, 3-phase out solar pump inverter is environmentally friendly with a long lifetime and lower maintenance costs. Built-in MPPT ensures you to get the best output power and optimizes the performance of water pump solar Inverter along the day as it starts and stops automatically based on the intensity of solar radiation.

Features:

• Built-in MPPT solar charger
• Supports single phase or three-phase asynchronous motor depending on models
• Supports single phase AC input when PV energy is not sufficient (only for Aspire 2.2KW LS model)
• Built-in full protection and self-diagnosis
• Soft start function prevents water hammer effect and extends system lifecycle
• Comprehensive LEDs and display screen for real-time system status
• Remote monitoring through RS-485
• Optional remote panel available

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SOL-I-AS-2
Model	Aspire 2.2KW
RATED OUTPUT POWER	2200 W(3HP)
	(supports 0.75~3HP
	water pump)
PV INPUT (DC)
Nominal DC Voltage /Maximum DC Voltage	540 VDC / 800 VDC
Start-up Voltage	250 VDC
MPPT Voltage Range	250 VDC ~ 780VDC
Number of MPP Trackers	1
AC INPUT
Input Voltage	N/A
	(-15% ~ +10%)
Input Frequency	47 Hz ~ 63 Hz
OUTPUT
Nominal Voltage	3 x 380/400/415/440 VAC
Efficiency	> 97%
Nominal Output Current	5.0 A
Motor Type	Three-phase asynchronous motor
	motor
Frequency Precision	±0.2%
PROTECTION
Full Protection	Phase lost, dry pumping, motor locked, weak sunlight, over-voltage, under-voltage, over-current, surge, overtemperature and short circuit protection
PHYSICAL
Dimension, D x W x H (mm)	110 x 230 x 342
Net Weight (kgs)	5.5
Type of Mechanical Protection	IP20
INTERFACE
Communication Port	RS-232/RS-485
ENVIRONMENT
Humidity	< 95% RH(Non-condensing)
Operating Temperature	-20°C ~ 45°C at 100% full load, 46°C ~ 60°C power derating
