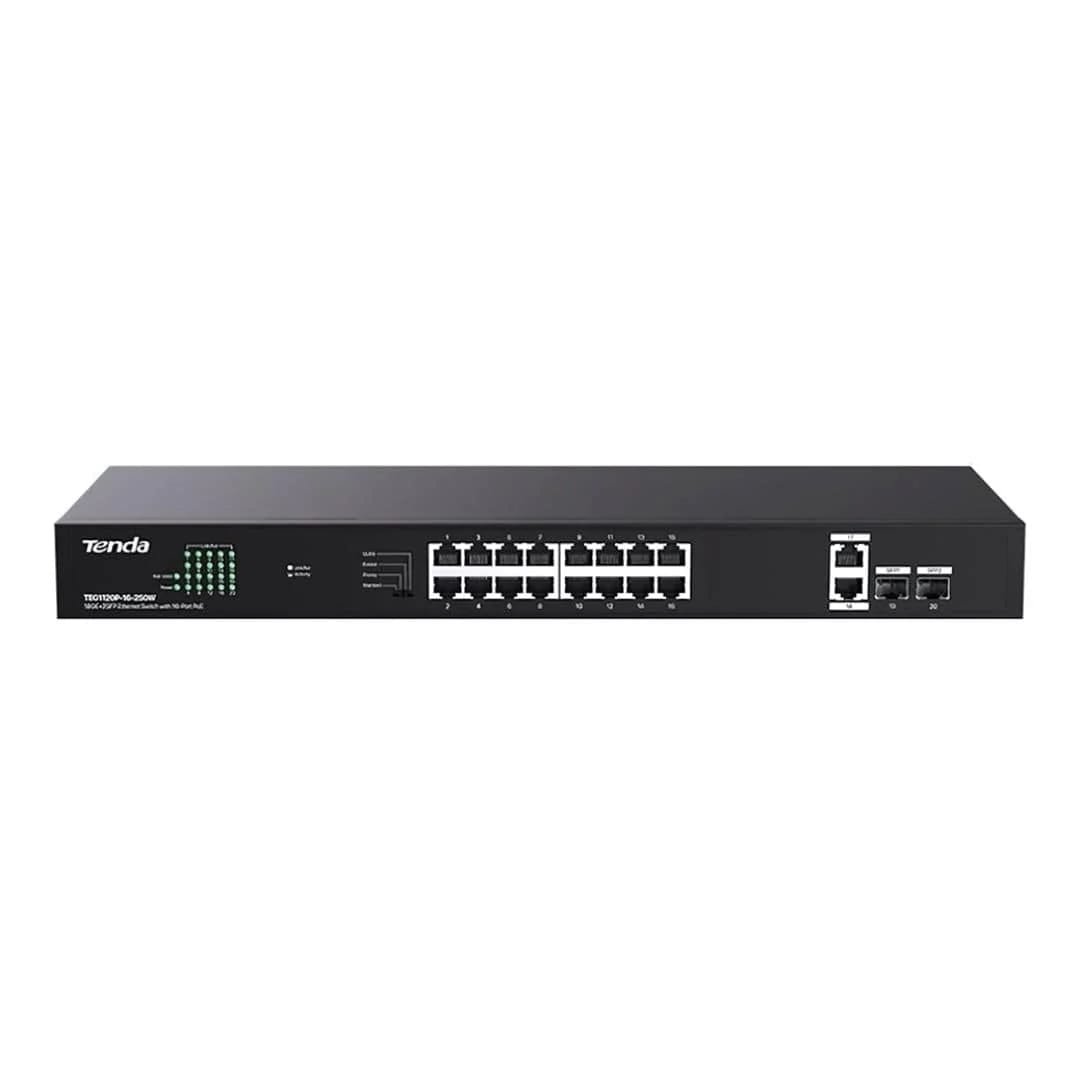

The Tenda TEG1120P-16-250W is a high-performance unmanaged gigabit Ethernet switch with 16 PoE+ capable ports, plus 2 uplink RJ45 ports and 2 SFP ports. It supports IEEE 802.3af/at standards to automatically detect powered devices (PDs) and supply power, enabling both data and power delivery over a single cable. With a total PoE power budget of 250W and up to 30W per port, this switch is ideal for deployments of IP cameras, wireless access points, VoIP phones and other PoE devices requiring reliable power.
Designed for easy installation, it supports rack mounting, plug & play setup, and simple mode toggling (Standard, Priority, Extend, VLAN). It operates silently (fan-less design) and maintains stable performance under heavy loads thanks to its non-blocking architecture and large buffer capacity. This makes it suitable for businesses, schools, hotels or surveillance-heavy environments.
Performance tier: Enterprise / SMB high throughput PoE+ tier
Uses: IP surveillance, wireless access points, VoIP phones, small business networks, hotel installations
Overview
The Tenda TEG1120P-16-250W is an unmanaged gigabit Ethernet switch featuring 16 PoE+ ports delivering up to 30W per port with a total PoE power budget of 230W, plus 2 uplink RJ45 and 2 SFP ports for flexible high-speed connectivity. It supports IEEE 802.3af/at standards, offers four working modes including VLAN and Extend for network flexibility, and is ideal for powering IP cameras, access points, and IP phones in SMBs, hotels, schools, and parks. The switch supports plug-and-play installation, rack, wall, or desktop mounting, and includes advanced protections like 6KV lightning and ESD protection for reliable operation.
Description
The Tenda TEG1120P-16-250W is built for reliable performance in PoE-powered networks. Its rugged metal enclosure and fan-less design ensure both durability and quiet operation. The switch delivers both data and power to up to 16 PoE devices via gigabit RJ45 ports while also offering fibre uplink via SFP slots for long-distance or backbone connectivity. It supports multiple modes like Standard for full inter-port communication, Priority mode to give certain ports higher service, Extend mode to increase reach on selected ports, and VLAN mode to isolate traffic when needed.
This model is especially suited for environments where power delivery and network performance must go hand in hand. Think video surveillance systems, wireless access point deployment, VoIP telephony, or mixed PoE device networks in SMBs, hotels, schools or public spaces. Installation is straightforward: plug-and-play, no management GUI required. All powered devices are auto-detected, reducing configuration effort and risk of incorrect wiring or device mismatch.
Features
Standard 1U height, rack mounted switch
Support four modes of Standard, Priority, Extend and VLAN
Single port output power 30W, maximum output power 230W
High speed network transmission, Experience extreme smoothness Full gigabit ports , 40 Gbps non-blocking line speed forwarding, mprove the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
GE and SFP Uplink Ports, Easier HD Monitoring With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.
Smart PoE Power Supply, Stable Transmission Providing 16 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
4 Modes for More Scenarios, One-key To Change Smart and Easy The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.
Standard Mode All ports can communicate with each other. It can be used as a common non-management PoE switch.
Priority Mode Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
Extend Mode The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
VLAN Mode Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
Standard 19-inch metal body design Quick and easy Internet settings, simple enough for you to set up office networking, 19-inch body design, and support desktop, wall and rack mounting.
6KV Excellent Lightning Protection The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
