UB-UDB-PRO Ubiquiti UDB-PRO UniFi Device Bridge Pro

UB-UDB-PRO

R 4,680.00

inc. VAT

In Stock

Add To Cart

Rate

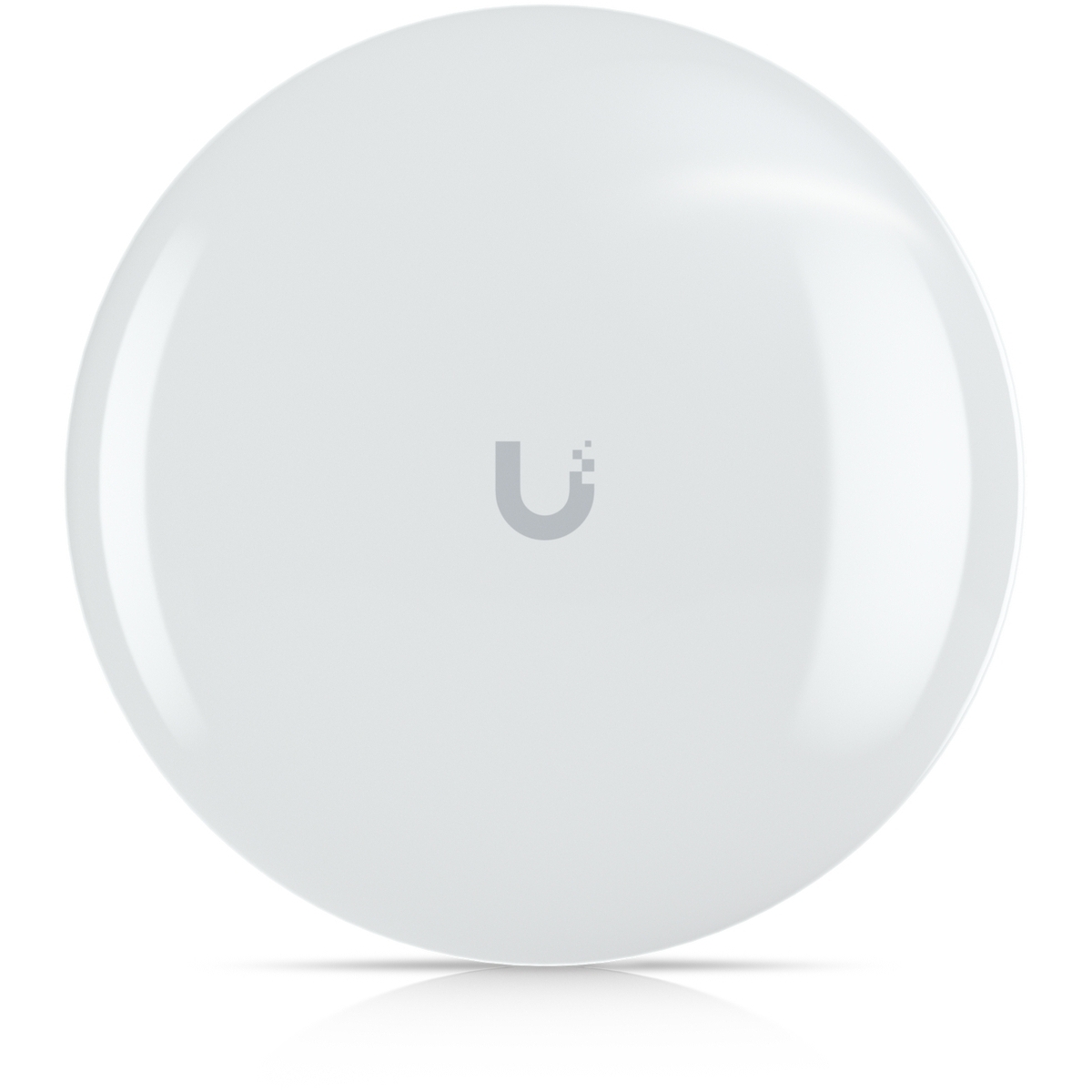

Ubiquiti UDB-PRO UniFi Device Bridge Pro

Images are for illustrative purposes and actual product may differ.

UB-UDB-PRO

Wireless Access Points & Bridges

Ubiquiti

UB-UDB-PRO information and overview

Ubiquiti UDB-PRO UniFi Device Bridge Pro, 2x GbE RJ45 Ports, 1x PoE in, 1x Passive PoE Output, 5GHz WiFi, 867 Mbps @ 5GHz, 19 dBi 5GHz antenna, Link at 5+ km distances with a Point-to-point connection to another Device Bridge Pro

Specifications & more information about UB-UDB-PRO, Wireless Access Points & Bridges manufactured by Ubiquiti

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Device Bridge Pro UDB-Pro
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
(2) GbE ports with (1) PoE output for PoE devices
Powered using PoE/PoE+
Pole mounting
Weatherproof (outdoor exposed)
Sold as a single unit

_{Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.}_{*PoE adapter included. PoE+ input required for PoE passthrough.}

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UB-UDB-PRO
Mechanical
Dimensions	Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
Weight	Without mount: 431 g (1 lb)
Weight	With mount: 515 g (1.1 lb)
Enclosure material	UV-resistant polycarbonate
Mount material	UV-stabilized polycarbonate, stainless steel
Pole mount diameter	20-53.1 mm (0.8-2.1") on pipe outer diameter
Wind loading	69 N at 200 km/h (15.5 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Networking interface	(2) GbE RJ45 ports
Management interface	Ethernet
Management interface	WiFi
PoE interface	(1) PoE in (PoE output not used)
PoE interface	(1) Passive PoE output
Power method	PoE
Power method	PoE+ (Required for PoE output)
Power supply	UniFi PoE switch
Power supply	48V, 0.32A PoE adapter (Included)
Supported volatage range	42.5-57V DC
Max. power consumption	9W
Max. TX power
2.4 GHz	-
5 GHz	25 dBm
6 GHz	-
Max. data rate
2.4 GHz	-
5 GHz	867 Mbps (BW80)
6 GHz	-
MIMO
2.4 GHz	-
5 GHz	2 x 2
6 GHz	-
Antenna gain
2.4 GHz	-
5 GHz	19 dBi
6 GHz	-
Antenna	Internal
Range	5+ km
LEDs	Power, Ethernet, (4) signal strength
Button	Factory reset
Mounting	Pole (Included)
Ambient operating temperature	-40 to 60° C (-40 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/n/ac
Wireless security	WPA2 AES (Always On)
Operating frequency
US/CA	U-NII-1 5150 - 5250 MHz
	U-NII-2A 5250 - 5350 MHz
	U-NII-2C 5470 - 5725 MHz
	U-NII-3 5725 - 5850 MHz
Worldwide	5150 - 5875 MHz
Worldwide	*Depends on regulatory region.
Channel bandwidth	20/40/80 MHz
Max. conducted TX power	25 dBm (Combined)
Modulation	BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
