VIVOTEK AP-PSP-050 Vivotek AP-PSP-050 surge arrestor

VIVOTEK AP-PSP-050

Click to view larger image

Rate

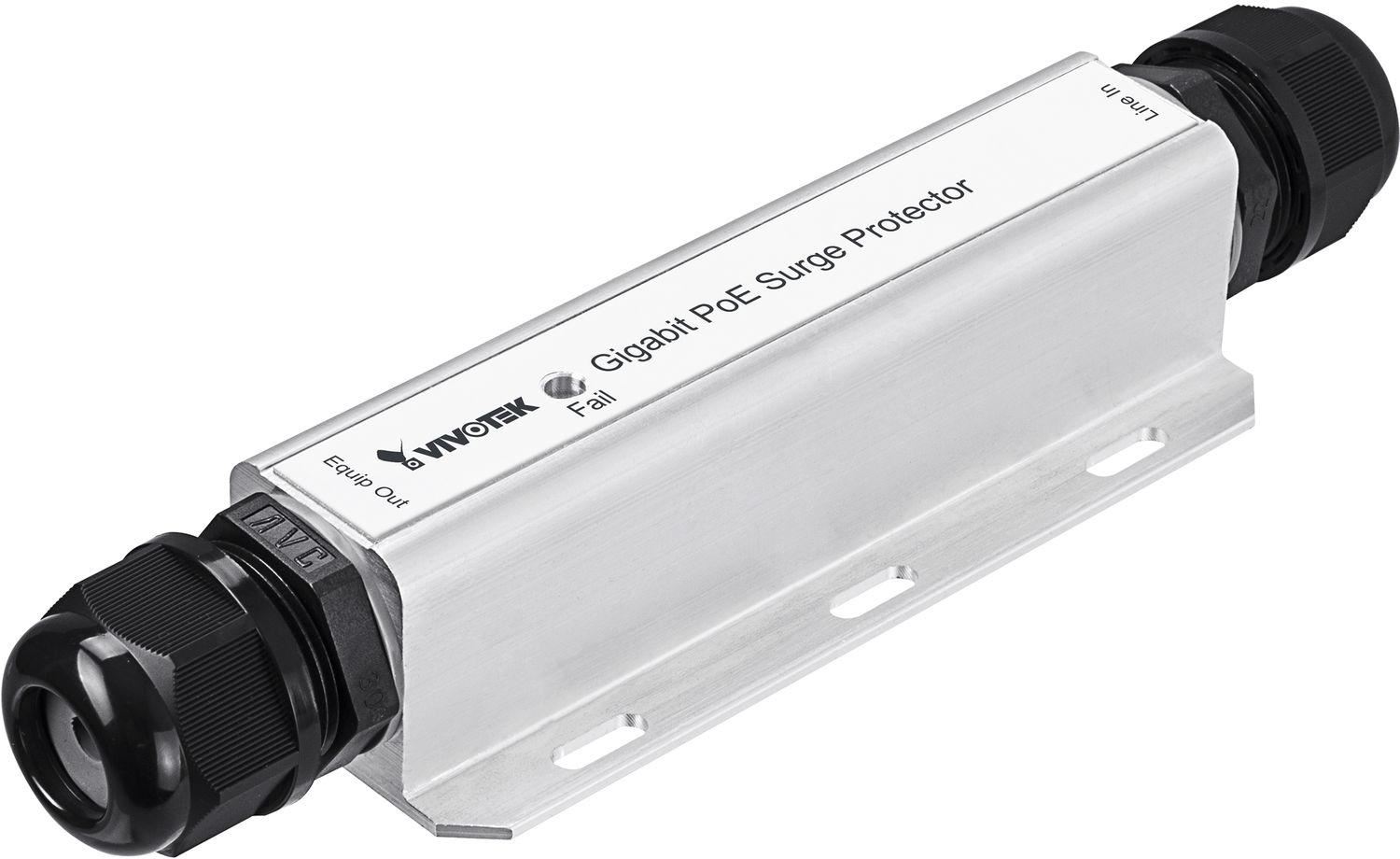

Vivotek AP-PSP-050 surge arrestor

Images are for illustrative purposes and actual product may differ.

VIVOTEK AP-PSP-050

Network mounting devices

Vivotek

VIVOTEK AP-PSP-050 information and overview

Vivotek AP-PSP-050 surge arrestor, 60 VDC operation voltage, 5ns response time, IP67 waterproof standard

Not for sale. This is a discontinued product.

Kindly search for an alternative on our site

Subject to correction, the product was first added on 2021-05-17 and the last date we have for this product is 2026-10-07, where the last unit was sold for R 3510, which may have been a final clearance price.

Specifications & more information about VIVOTEK AP-PSP-050, Network mounting devices manufactured by Vivotek

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

60 VDC Operation Voltage
5ns Response Time
2 x RJ45 Ports
IP67 Rated

Features:

The AP-PSP-050 Outdoor PoE Surge Protector from Vivotek is designed to be used for outdoor PoE installation. It has a 60 VDC maximum operation voltage, a 5ns response time, and features two RJ45 ports. It is rated IP67 waterproof.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	VIVOTEK AP-PSP-050
Number of Ports	1
Pass Through Data Rates	10/100/1000 Mb/s
Discharge Current	Maximum: 8 kA, 16 kV (8/20 us, 1 kA per Line)
DC Voltage	Maximum Operation: 60 VDC
DC Current	Maximum Operation: 1 A for 2 Pairs, 2 A for 4 Pairs, 95 W
Protection Level	Common Mode: 20 kV (10/700us)
Clamping Voltage	Line to GND: 600 V
Clamping Voltage	Line to Line: 20 V
Insertion Loss	At 10/100 MHz: 1 dB
Return Loss	At 10/100 MHz: -20 dB
Response Time	5 ns
Connectors	2 x PG16 (RJ45)
MTBF	1,132,887 Hours
Waterproof Standard	IP67
Certifications	EMC: CE, FCC, VCCI, C-Tick
	Safety: EN60950-1, IEC60950-1
	Surge: ITU-T K.21, IEC-61643-21, IEC61000-4-5, TIA-968-A (FCC Part 68)
Operating Temperature	-40 to 185°F / -40 to 85°C
Storage Temperature	-40 to 185°F / -40 to 85°C
Operating Humidity	5 to 95% (Non-Condensing)
Dimensions	7.3 x 2.0 x 1.3" / 186.2 x 50 x 32 mm
Weight	0.60 lb / 0.27 kg
