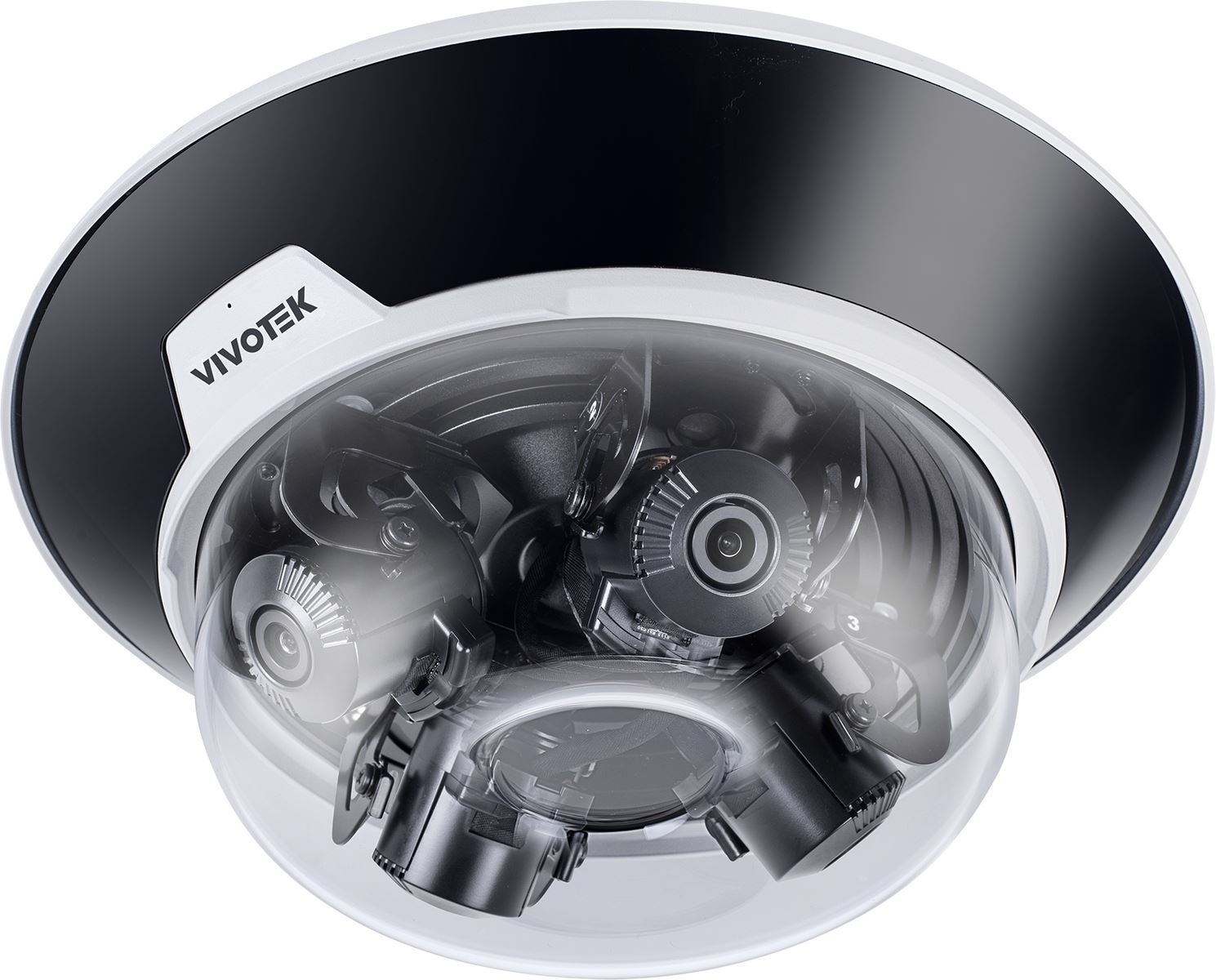

VIVOTEK MA9322-EHTVL Vivotek Multi angle camera - 4 cameras - with motorized Vari-Focal Remote focus Lens Type
Images are for illustrative purposes and actual product may differ.
VIVOTEK MA9322-EHTVL IP network security camerasVivotek
VIVOTEK MA9322-EHTVL information and overview
Vivotek Multi angle camera, 1/2.7" progressive CMOS image sensor, 4x 2688 x 1920 (5MP) Maximum Resolution, Motorized Vari-Focal Remote focus Lens Type, WDR Pro, Built-In IR illuminators effective up to 30 meters with Smart IR, Pan/Tilt/Zoom functionalities, H.265 / H.264 / MJPEG Video Compression, Two-Way audio (Full Duplex), Built-In Microphone, External Microphone Input, External line Output, Live viewing for up to 20 clients, Gigabit Ethernet (RJ-45), Five-window Video motion detection
Not for sale. This is a discontinued product.
Kindly search for an alternative on our site
Subject to correction, the product was first added on 2022-12-21 and the last date we have for this product is 2026-10-07, where the last unit was sold for R 186300, which may have been a final clearance price.
Specifications & more information about VIVOTEK MA9322-EHTVL, IP network security cameras manufactured by Vivotek
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview summary: The VIVOTEK MA9322-EHTVL is a premium 20MP multi-sensor IP surveillance camera designed to deliver comprehensive 360° coverage from a single mount point. With four independently adjustable 5MP sensors and motorized vari-focal lenses, it provides complete area visibility with exceptional detail and flexibility. Equipped with WDR Pro, Supreme Night Visibility (SNV), Smart IR illumination up to 30 meters, and robust IP66 and IK10-rated housing, the MA9322-EHTVL excels in both high-contrast and low-light environments. Ideal for wide-area security with reduced camera count, it supports two-way audio, remote focus, and seamless recording to microSD or NAS. Camera tier: High-end panoramic IP surveillance
Uses: Wide-area monitoring, perimeter security, high-traffic zones, and urban surveillance. Overview:
MA9322-EHTVL - 20MP, Adjustable Views, 3.7~7.7mm, 30M IR, WDR Pro, SNV
- Remote Focus
- SNV
- WDR Pro
- Vandal-proof
- H.265, H.264, MJPEG
- NDAA
Features: - H.265 Compression Technology
- 4x 5MP Independent Sensors, Adjustable Views
- 30 fps (2688x1920 ) per Sensor
- WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Built-in IR Illuminators, Effective up to 30 Meters Radius
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Built-in Microphone
High Quality Unlimited Coverage
Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.
360° Extreme Low Light Visibility
By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.
Comprehensive Video Coverage from a Single Mount Point
The MA9322-EHTVL captures every angle for comprehensive video coverage from a single IP address, helping to reduce the amount of cameras needed and saving on installation time and costs. Specifications | ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | | Specifications | | Product Code | VIVOTEK MA9322-EHTVL | | System Information | | Model | MA9322-EHTVL | | CPU | Multimedia SoC (System-on-Chip) | | Flash | 1 GB | | RAM | 4 GB | | Camera Features | | Image Sensor | 1/2.7" Progressive CMOS | | Max. Resolution | 2688x1920 (5MP) x 4 | | Lens Type | Motorized, Vari-Focal, Remote Focus | | Focal Length | f = 3.7 ~ 7.7 mm | | Aperture | F1.9 ~ F2.9 | | Iris Type | Fixed-iris | | Field of View | 88.6° ~ 40.1° (Horizontal) | | 61.2° ~ 28.6° (Vertical) | | 115.5° ~ 49.5° (Diagonal) | | Shutter Time | 1/5 sec. to 1 / 32,000 sec. | | WDR Technology | WDR Pro | | Day/Night | Yes | | Removable IR-cut Filter | Yes | | IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR | | Minimum Illumination | 0.035 lux @ F1.9 (Color) | | 0.005 lux @ F1.9 (B/W) | | 0 lux with IR Illuminators on | | Tilt Range | 0° ~ 105° each lens | | Rotation Range | ±90° each lens | | Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) | | Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) | | Built-in Installation Aids | Remote Focus, Remote Zoom | | Video | | Video Compression | H.265, H.264, MJPEG | | Maximum Frame Rate | 12 fps @ (2688x1920) x 4 | | 30 fps @ (2560x1440) x 4 | | Maximum Streams | 2 simultaneous streams* per channel, max total 13 profiles | | * Stream 1: 2688x1920, 2560x1920, 2160x1536, 2048x1536, 1680x1200, 1600x1200, 1344x960, 1280x960, 672x480, 640x480 | | * Stream 2: 1280x960, 672x480, 640x480 | | S/N Ratio | 60.4 dB | | Dynamic Range | 120 dB | | Video Streaming | Adjustable resolution, quality and constant bit rate control | | Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, Illuminators: illuminators, anti-overexposure, Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR, Privacy mask, Scheduled profile settings | | Audio | | Audio Capability | Two-way Audio (full duplex) | | Audio Compression | G.711, G.726 | | Audio Interface | Built-in microphone | | External microphone input | | External line output | | * Requires AO-006 cable | | Effective Range | 5 meters | | Network | | Users | Live viewing for up to 20 clients | | Security | Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, user access log, user account management | | Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP | | Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) | | * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | | ONVIF | - | | Solution Integration | | Video Motion Detection | Five-window video motion detection | | Alarm and Event | | Event Trigger | Audio detection*, camera tampering detection, digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot | | * Requires AO-006 cable | | Event Action | Event notification via audio clip*, camera link, digital output, email, HTTP, FTP, NAS server, SD card | | File upload via email, HTTP, FTP, NAS server, SD card | | * Requires AO-006 cable | | General | | Connectors | RJ-45 cable connector for 10/100/1000 Mbps PoE network connection | | Audio input | | Audio output | | AC 24V power input | | Digital input | | Digital output | | * Requires AO-006 cable | | LED Indicator | System power and status indicator | | Power Input | AC 24V | | IEEE 802.3 at PoE | | Power Consumption | AC: Max. 25 W | | PoE: Max. 25 W | | Dimensions | Ø 267x114 mm (main body) | | Ø 275x118 mm (w/ bracket) | | Weight | 2.7 kg | | Certifications | EMC: CE (EN55032 Class A, EN55024), FCC (FCC Part 15 Subpart B Class A) | | RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), UKCA, ICES-003 issue 7 | | Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) | | Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X) | | Operating Temperature | Start Temperature: -30°C ~ 50°C (-22°F ~ 122°F) | | Working temperature: -40°C ~ 50°C (-40°F ~ 122°F) | | Humidity | 90% | | System Requirements | | Operating System | Microsoft Windows 10/8/7 | | Mac 10.12 (Chrome only) | | Web Browser | Chrome 58.0 or above | | Internet Explorer 10/11 | | Other Players | VLC: 1.1.11 or above | | Included Accessories | | Packing Contents | Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack | | DORI (EN 62676-4 Standard) | | Detect (25PPM/ 8PPF) | Wide: 74.0 m (242.8 ft) | | Tele: 153.9 m (505.0 ft) | | Observe (63PPM/ 19PPF) | Wide: 29.3 m (96.1 ft) | | Tele: 61.1 m (200.4 ft) | | Recognize (125PPM/ 38PPF) | Wide: 14.8 m (48.6 ft) | | Tele: 30.8 m (101.0 ft) | | Identify (250PPM/ 76PPF) | Wide: 7.4 m (24.3 ft) | | Tele: 15.4 m (50.5 ft) |
