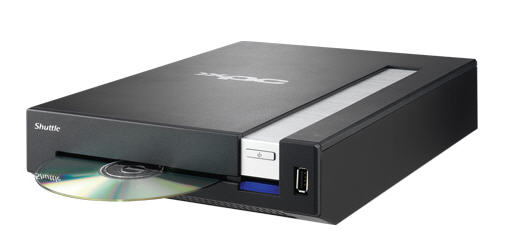

SY-SX100

Overview:

Shuttle XPCs are small, but the XPC X100 sets a new standard. With a surface barely the size of a sheet of A4 paper or a magazine, and a height of only five centimeters, the XPC X100 is the smallest SFF PC ever from Shuttle. As the saying goes, good things came in small packages, and the XPC X100 comes packed with some of the best PC hardware and components enhanced for performance and stability with Shuttle's exclusive Silent X technology.

Features:

So small
The XPC X100 offers a number of user configurable options including a choice of Intel® Core™2 Duo/Duo/Solo processors, a range of hard disk capacities, and a wireless LAN option, together with incredible standard features such as ATI Mobility™ Radeon® X1400 graphics GPU and a 4-in-1 card reader which altogether make it the right choice for any home or office looking for performance and unrivaled style

Support Intel® Core™ Processors

• Intel® Core™2 Duo Processors - With Intel® Core™2 Duo desktop processor, you'll experience revolutionary performance, unbelievable system responsiveness, and energy-efficiency built in - up to 40% faster and over 40% more energy efficient.
• Intel® Core™ Duo Processor - The Intel® Core™ Duo processor breaks new ground. Its dual core technology rewrites the rules of computing, delivering optimized power efficient computing and breakthrough dual core performance with amazingly low power consumption.
• Intel® Core™ Solo Processor - The Intel® Core™ Solo processor is the next generation processor for power-optimized mobile processing. It is enhanced to handle today's demanding software applications such as graphics-intensive games or serious number-crunching programs.
• Intel 945PM + ICH7M Chipset - The Mobile Intel® 945PM Express chipset delivers outstanding system performance through high-bandwidth interfaces such as dual channel DDR2 memory, 667MHz system bus, and PCI Express x16 graphics, and delivers next generation Serial ATA and Hi-Speed USB 2.0 connectivity.
• SATA II 3Gb/s storage - Offering up to SATA 3Gb/s bandwidth for the best possible hard disk performance. Compatible with standard desktop 3.5" drives, the XPC X100 offers 100's of gigabytes (GB) of storage; enough for a entire family's collection of digital images, audio and movie files or 1000's of emails, contacts and important work documents.

ATI Mobility™ Radeon® X1400
ATI's Mobility™ Radeon® X1400 delivers enhanced 3D gaming and high quality video playback. With an ultra-threaded 3D architecture, and a native 16x PCI Express® bus interface, the ATI Mobility™ Radeon® X1400 enables you to enjoy amazing OpenGL® and DirectX® 9 Shader Model 3.0 graphics and enhanced High-Definition vide.

Optical Drive
Watch great DVD movies, enjoy your favorite music, and load the latest software on CD or DVD-ROM. With the DVD-ROM CD-R/RW Combo drive you can backup 100s of pictures, documents and files onto inexpensive, CD media, or choose the DVD±RW Dual layer drive option and get up to a massive 9GB of storage space.

4-in-1 multi-format card-reader
Quickly transfer files from your digital camera, portable music player, PDA or smart phone with the included 4-in-1 card-reader. Supports SD, MMC, MS and MS Pro.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	SY-SX100
PROCESSOR	- Intel Core Duo T2400 1.83GHz, 667MHz FSB, 2M L2 cache
MEMORY	512MB DDR2 533 dual channel(256MB x 2) SODIMM module x 2
GRAPHICS	- ATI Mobility Radeon X1400
	- MXM interface
CHIPSET	- North Bridge: Intel 945PM
	- South Bridge: Intel ICH7M
INTERNET CONNECTIVITY	Realtek 8110 10/100/1000M Gigabit Ethernet
STORAGE	250GB SATA II 3Gb/s Hard Drive
CARD READER	- Integrated 4-in-1 card reader ( SD / MMC / MS / MS-pro )
OPTICAL DRIVE	Slim slot-in DVD Dual / Comobo Drive
INTERNAL PERIPHERALS	- 802.11 a/b/g Wireless LAN (Intel 3945, mini card interface)
	- Internal USB 2.0 port
POWER	- 120W power adapter with active PFC
	- Input: 100 ~ 240V AC
	- EMI Certified: FCC, CE, BSMI
	- Safety Certified: UL, TUV, CB
	- Power Plug: Region Specific
ACCESSORIES	- Driver CD
	- Recover CD
	- Utility CD
	- Cyberkins PowerDVD
	- Ahead Nero Suite
	- Quick installation guide
	- S-video out cable
	- DVI to D-Sub connector
	- Stand
	- Power adaptor
	- Power cord
FRONT PANEL	(1) USB 2.0 port
	(1) 4-in-1 card reader slot
	(1) Power button
	(1) Power LED
	(1) Optical drive LED
BACK PANEL	(1) DVI port
	(1) RJ45 10/100/1000 Ethernet LAN port
	(4) USB 2.0 port
	(1) IEEE1394 port
	(1) S-Video out
	(1) Mic in
	(1) Line in
	(1) Line out/Headphone
	(1) S/PDIF out
	(1) DC in
AUDIO	7.1 High Definition Audio Realtek ALC880 codec
OPERATING SYSTEM	Microsoft Windows XP Professional/Home Edition
CERTIFICATION	FCC, CE, BSMI
WARRANTY	1 year limited hardware warranty
DIMENSION	210(L) x 296(W) x 55(H)mm
