About this product
The Omada Beam Bridge 5 UR KIT is a high-performance 5GHz outdoor wireless bridge designed to connect buildings, remote sites and network devices over distances of up to 15km. Delivering wireless speeds of up to 867Mbps, it features 23dBi high-gain directional antennas, automatic point-to-point pairing, app-guided antenna alignment and Gigabit Ethernet with PoE support. Its IP65 weatherproof enclosure and 6kV lightning protection make it suitable for demanding outdoor network installations. Buy this Omada wireless bridge kit online for long-range connectivity across farms, offices, warehouses and remote sites in South Africa.
Overview Summary

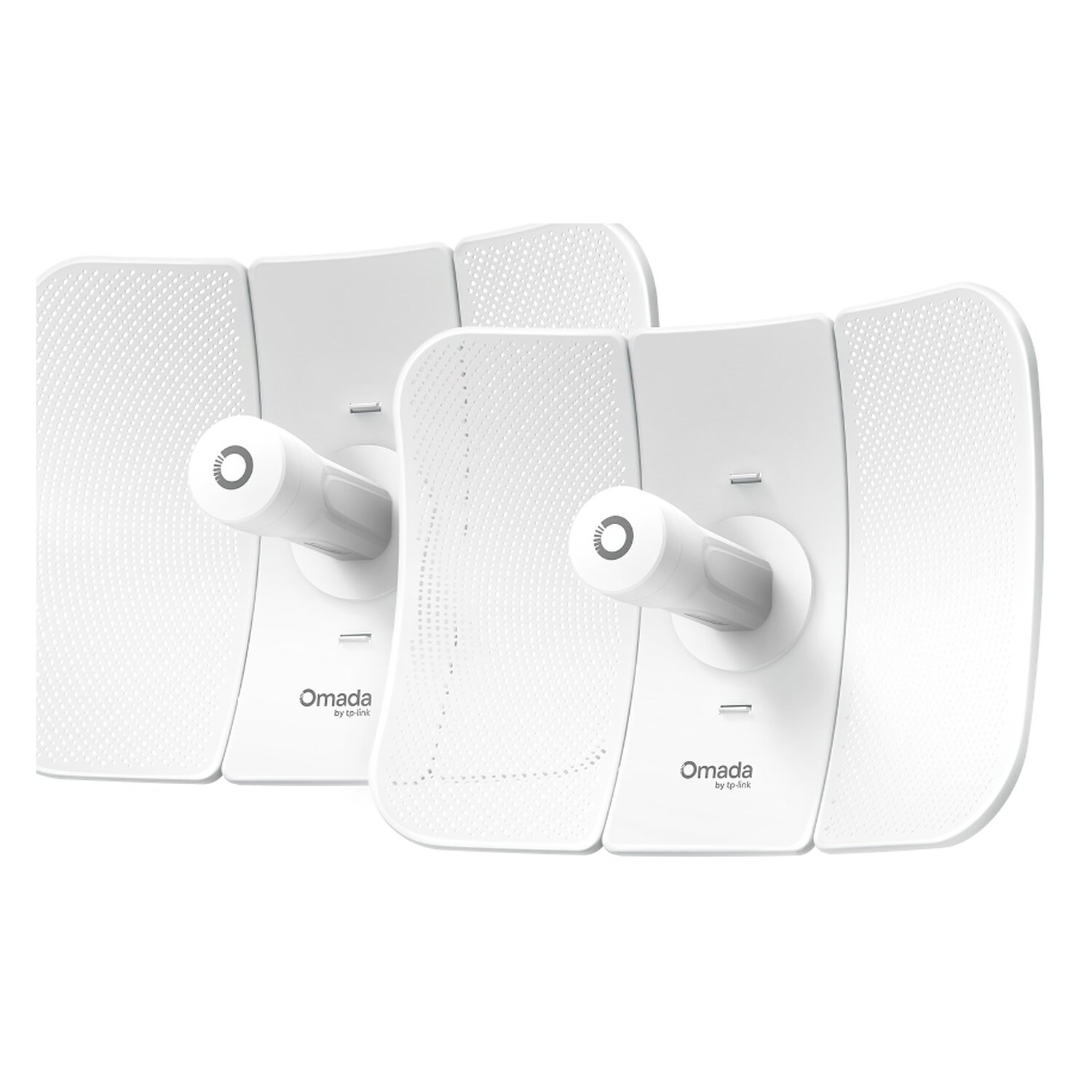

Omada Beam Bridge 5 UR KIT - 5GHz 867Mbps Ultra-Range Wireless Bridge
The Omada Beam Bridge 5 UR KIT provides long-distance point-to-point wireless networking for locations where installing Ethernet or fibre cabling is difficult or impractical. Operating on the 5GHz band and supporting wireless speeds of up to 867Mbps, it is designed to establish network links over distances of up to 15km when installation conditions are suitable. Its 23dBi directional antennas focus the wireless signal towards the receiving bridge.
The preconfigured kit supports automatic pairing for simplified deployment, while app-guided alignment and speed testing help with installation and link verification. A Gigabit Ethernet port with Power over Ethernet (PoE) support simplifies connectivity and power delivery. The IP65-rated enclosure, 6kV lightning protection and operating temperature range of -40 to 70 degrees Celsius support outdoor installations in demanding environments. Remote monitoring and centralised management are available through supported Omada management options.
Performance tier: Professional long-range wireless networking
Uses: Point-to-point wireless links, connecting separate buildings, farm networks, warehouse connectivity, remote IP camera networks, construction sites, industrial facilities, remote offices
Description
The Omada Beam Bridge 5 UR KIT is designed to extend network connectivity across long distances without requiring a physical network cable between locations. It provides a point-to-point wireless bridge connection for buildings and sites that need to share network access, making it useful for farms, industrial properties, warehouses, offices and remote monitoring installations.
Operating on the 5GHz frequency band, the bridge supports wireless signalling rates of up to 867Mbps using IEEE 802.11a/n/ac standards. Its high-gain 23dBi directional antennas concentrate the signal towards the other bridge, supporting a rated transmission distance of up to 15km under suitable conditions. Actual link performance depends on factors such as line of sight, antenna alignment, interference and the network environment.
The preconfigured kit supports automatic point-to-point pairing, helping simplify initial setup. App-guided antenna alignment provides visual assistance when positioning the units, while built-in speed testing helps verify the connection after installation.
For installation flexibility, each bridge provides a Gigabit Ethernet port with PoE input. The supported power options include 802.3af PoE and 24V or 48V passive PoE when used with compatible equipment. The included passive PoE adapter supports installations where a suitable PoE power source is not otherwise available.
The IP65-rated weatherproof enclosure is designed for outdoor use, with 6kV Ethernet port lightning protection and a specified operating temperature range of -40 to 70 degrees Celsius. The bridge can be managed in standalone mode or integrated with supported Omada SDN management for centralised monitoring and configuration.
For reliable long-distance operation, install the two bridge units with a clear line of sight wherever possible, align their directional antennas carefully and confirm that the selected power supply is compatible. Buy the Omada Beam Bridge 5 UR KIT for professional wireless connectivity between separate locations.
Features
The Omada Beam Bridge 5 UR KIT combines long-range wireless connectivity, installation assistance and outdoor protection for professional network deployments.
- Ultra-range transmission: Supports point-to-point wireless links over distances of up to 15km under suitable conditions.
- 5GHz wireless performance: Supports wireless signalling rates of up to 867Mbps for network connectivity across remote locations.
- 23dBi high-gain directional antennas: Focus the wireless signal towards the receiving bridge to support long-distance links.
- Preconfigured automatic pairing: Helps simplify deployment by allowing the bridge units to pair automatically.
- App-guided antenna alignment: Assists installers with positioning the units for an effective wireless link.
- Installation speed testing: Helps verify connection performance during setup.
- Gigabit Ethernet with PoE input: Provides a wired network interface and supports compatible Power over Ethernet options.
- Flexible power support: Supports 802.3af PoE and 24V or 48V passive PoE with the appropriate compatible power equipment.
- IP65 weatherproof enclosure: Supports installation in outdoor environments exposed to dust and water jets under the specified protection conditions.
- 6kV lightning protection: Provides specified protection for the Ethernet ports against electrical surges.
- Wide operating temperature range: Supports operation from -40 to 70 degrees Celsius.
- Remote management options: Supports standalone management and centralised management through compatible Omada SDN systems.
- Pole mounting: Includes mounting hardware for pole-mounted installation.
Business-Grade 15-km Ultra-Range Wireless Connectivity
Delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission.
What's in the Box
- Omada Beam Bridge 5 UR KIT
- Installation guide
- Mounting kit
- Passive PoE adapter
- Power cord
Specifications
| ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | NET-BEAMBRIDGE-5UR |
| HARDWARE FEATURES |
| Interface | 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button | 1 x Reset Button |
| 1 x System Mode Selection Button |
| DIP Switch | Role Switch |
| Power Supply | 802.3af PoE (1, 2pins; 3, 6pins) |
| 24V or 48V Passive PoE (+4, 5pins; -7, 8pins) (Passive PoE Adapter Included) |
| Max. Power Consumption | 15.8W |
| Dimensions ( W x D x H ) | 14.4 x 11.0 x 8.1 in (366 x 280 x 207 mm) |
| Antenna | External 2x2 Dual-Polarized Directional MIMO Antennas |
| 5 GHz: 23 dBi |
| Antenna Beamwidth | Horizontal: 9degrees, Vertical: 7degrees |
| Weatherproof Enclosure | IP65 |
| Bandwidth | 5 GHz: 20 MHz/40 MHz/80 MHz |
| Mounting | Pole Mounting (Kits Included) |
| Management Features |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Central (Cloud-Based) |
| Omada Hardware Controller |
| Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| WIRELESS FEATURES |
| PtP | Yes |
| Transmission Distance | 15 km (9.3 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | MU-MIMO: 5G 2x2 MU-MIMO DL |
| Maximum number of associated STAs: 8 |
| Speed Test |
| Channel Optimization |
| Antenna Alignment |
| ACS (Automatic Channel Selection) |
| Rate Limit |
| Guest Network |
| Wireless Security | VLAN |
| Rogue AP Detection |
| Maximum number of MAC Filter: 4,000 |
| Wireless Encryption |
| Transmission Power | CE: |
| <23 dBm (5 GHz, U-NII-1/2A, ERIP) |
| <30 dBm (5 GHz, U-NII-1/2C, ERIP) |
| FCC: |
| <27 dBm (5 GHz, U-NII-1) |
| <27 dBm (5 GHz, U-NII-3) |
| OTHERS |
| Certification | CE, FCC |
| Package Content | Beam Bridge 5 UR KIT |
| Installation Guide |
| Mounting Kit |
| Passive PoE Adapter |
| Power Cord |
| Lightning Protection | Ethernet Ports: ±6 kV |
| Environment | Operating Temperature: -40 degreesC-70 degreesC (-40 degreesF-158 degreesF); |
| Storage Temperature: -40 degreesC-70 degreesC (-40 degreesF-158 degreesF); |
| Operating Humidity: 10%-90% non-condensing; |
| Storage Humidity: 5%-90% non-condensing |
| Weight | 1.1 kg (2.43 lb) |
FAQ
What is the Omada Beam Bridge 5 UR KIT used for?
It creates a point-to-point wireless network link between separate locations, such as buildings, farms, warehouses and remote sites where installing a physical network cable may be difficult.
What is the maximum range of the Beam Bridge 5 UR KIT?
The manufacturer specifies a transmission distance of up to 15km. Achieving this distance depends on suitable installation conditions, including line of sight, correct antenna alignment and the surrounding radio environment.
What wireless speed does this bridge support?
The Beam Bridge 5 UR KIT supports a maximum wireless signalling rate of up to 867Mbps on the 5GHz band. Actual data throughput will depend on the wireless link and network conditions.
Does the Omada Beam Bridge 5 UR KIT come preconfigured?
Yes. The kit supports automatic pairing of its bridge units to simplify point-to-point installation. App-guided alignment and speed testing can assist with setup and verification.
Can this wireless bridge be installed outdoors?
Yes. Its IP65-rated enclosure is designed for outdoor use and it includes 6kV Ethernet port lightning protection. Correct mounting, grounding and installation practices remain important.
What power supply does the Beam Bridge 5 UR KIT require?
It supports IEEE 802.3af PoE and 24V or 48V passive PoE. Use compatible power equipment and follow the installation guide to select the correct power method.
Can the Beam Bridge 5 UR KIT connect two buildings without an Ethernet cable between them?
Yes. It establishes a wireless link between the bridge units, allowing network connectivity to be extended between locations without running a physical Ethernet cable across the distance. Each end still needs suitable local power and network connections.
Does the Beam Bridge 5 UR KIT support centralised network management?
Yes. It supports standalone management and centralised management through compatible Omada SDN systems. Some remote management and cloud access functions require a compatible Omada controller.
Does the bridge work through trees or buildings?
The bridge is designed for directional point-to-point connections. A clear line of sight is recommended for long-distance links. Trees, buildings and other obstructions can reduce signal quality and connection performance.
What is included in the Omada Beam Bridge 5 UR KIT package?
The manufacturer lists the bridge kit, installation guide, mounting kit, passive PoE adapter and power cord. Check the package contents on delivery before installation.
