PCB_CUBE_100U8G_HOME

Overview

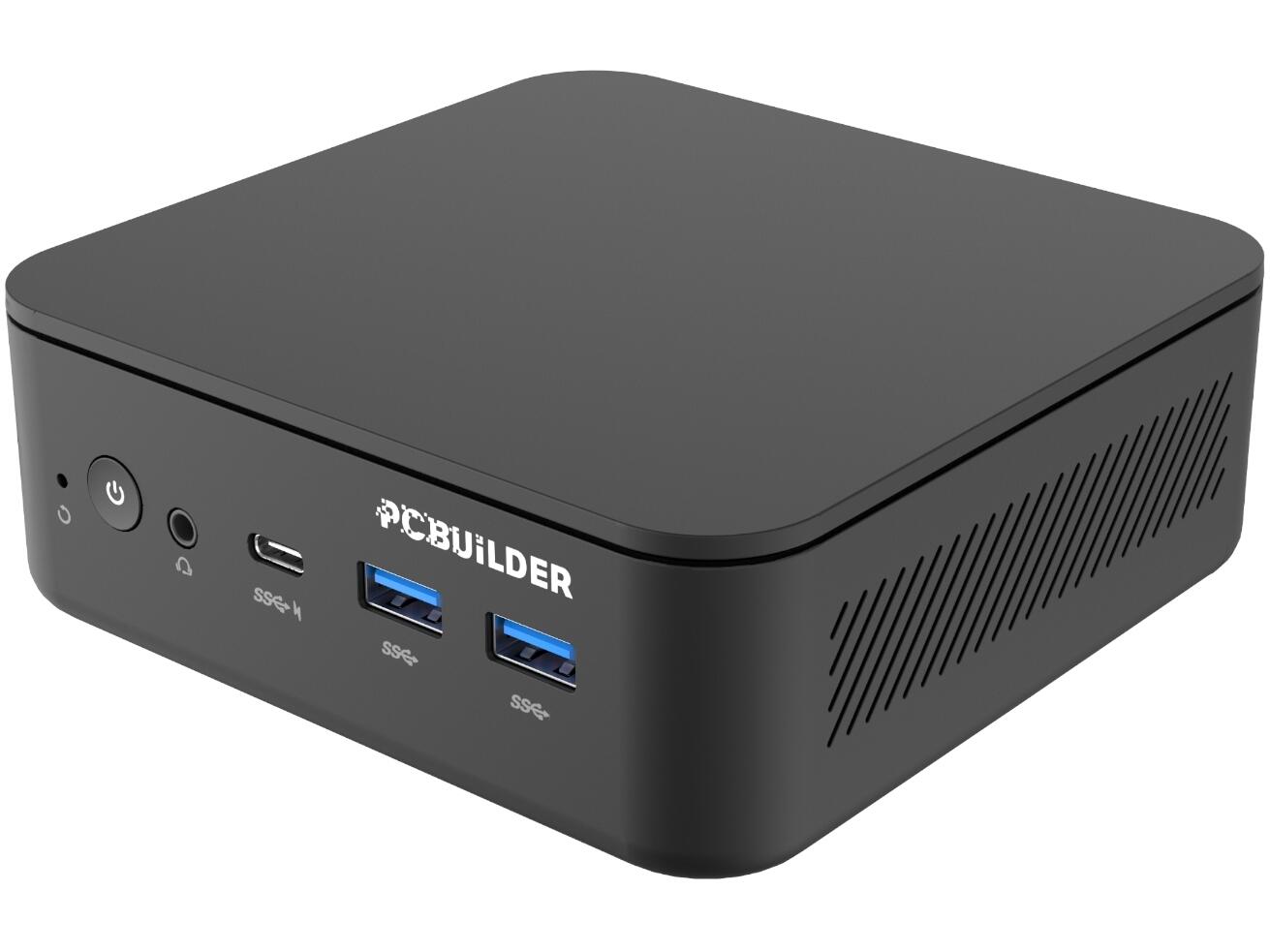

PCBuilder CUBE Mini PC Overview

The PCBuilder CUBE-100U is a compact desktop computer engineered for professionals who demand high performance without sacrificing desk space. Whether you need a reliable workstation for office tasks, a robust solution for digital signage, or an efficient point-of-sale system, this mini PC handles professional workloads with ease. Powered by the Intel Core 3-100U processor, it delivers smooth multitasking and fast application responsiveness, making it ideal for modern environments that require both efficiency and speed.

Beyond raw processing power, this unit is optimized for visual productivity, supporting stunning 8K visuals via Intel Graphics. Users can configure flexible multi-monitor setups using the Type-C, DisplayPort, and HDMI 2.1 outputs to extend or mirror up to three displays, ensuring crystal-clear imagery at 8K resolution for presentations or creative work. The system runs on Microsoft Windows 11 Home, featuring intuitive tools like Snap Layouts and Desktops to maximize screen real estate and workflow organization.

Built in-house by experienced technicians, each unit undergoes careful construction with protective packaging to ensure it arrives ready for immediate use. Designed for a clean workspace, the CUBE is VESA-mountable to attach behind monitors or under desks, while the built-in Kensington lock slot provides added security in shared offices.

Description

The PCBuilder CUBE (Part Number: PCB_CUBE_100U8G_HOME) combines power and portability for a versatile computing experience. This mini PC features an Intel Core 3-100U processor with six cores capable of speeds up to 4.70GHz, ensuring fast performance for demanding applications. It comes equipped with 8GB of DDR5 memory and a 512GB NVMe SSD for rapid boot times and data access. The device supports seamless connectivity through Wi-Fi 6, Bluetooth 5.2, and dual 2.5Gbps Ethernet ports, along with versatile video outputs for multi-monitor setups.

Features

Key Performance Features

• High-speed Intel Core 3-100U processor with up to 4.70GHz clock speed
• Dual-channel DDR5 memory architecture supporting up to 96GB expansion
• Ultra-fast data transfer via USB4 ports reaching 40Gbps
• 8K@60Hz display support for immersive visual experiences
• Flexible storage options with two M.2 slots for future upgrades
• Dual 2.5Gbps Ethernet ports for robust network connectivity

Connectivity and Ports
The CUBE-100U is designed to keep you connected with next-generation interfaces. Front access includes a USB Type-C port supporting video output up to 7680x4320, along with standard audio jacks and additional USB ports for peripherals. The rear panel offers extensive connectivity including DisplayPort for high-refresh-rate displays, HDMI 2.1, two Ethernet ports, and power input.

• Front: 1x Type-C (USB4 ), 2x USB3.2, 1x Audio Jack
• Rear: 1x DP, 1x HDMI 2.1, 2x RJ45 Ethernet, DC Power
• Wireless: Intel Wi-Fi 6 and Bluetooth 5.2 integrated

Technical Specifications

The system is built on a solid foundation of components designed for longevity and performance. It operates within standard temperature ranges and features a compact form factor that weighs just 470g, making it easy to transport or mount.

• CPU: Intel Core 3-100U (6 cores/8 threads)
• Memory: 8GB DDR5 4800MHz SO-DIMM
• Storage: 512GB Gen3 M.2 NVMe SSD
• Display Support: Up to three displays, max 8K resolution
• Dimensions: 13 x 12.7 x 4.7 cm
• Mounting: VESA compatible (100/75mm)

What's in the Box
Everything required to get started is included in your package.

• PCBuilder CUBE Intel Core 3-100U Mini PC
• AC Power Adapter
• VESA Mounting Bracket
• M4 and M3 Mounting Screws
• User Manual

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	PCB_CUBE_100U8G_HOME
Operating System	Microsoft Windows 11 Home
CPU	Intel Core 3 processor 100U (6 cores/8 threads, 10MB Cache, up to 4.70GHz)
GPU	Intel Graphics
Memory Installed	8GB DDR5 4800MHz SODIMM Memory x1
Memory Slots	2x Dual-channel DDR5 SO-DIMM (up to 96GB@5200MHz)
Storage	512GB Gen3 M.2 NVMe SSD
Storage Slots	2x M.2 PCIe 4.0 NVMe (SSD)
Wireless LAN	Intel Wi-Fi 6 (Wi-Fi 802.11 a/b/g/n/ac/ax)
Bluetooth	V5.2
Ports (Front)	1x 3.5mm AUX (dual line-out mic-in)
	1x Type-C (USB4 up to 40Gbps) 7680x4320 (8K@60Hz)
	2x USB3.2 (up to 10Gbps)
Ports (Back)	2x USB3.2 (up to 10Gbps)
	1x DP 3840x2160 (4K@144Hz)
	1x HDMI 2.1 3840x2160 (4K@60Hz)
	2x RJ45 Gigabit Ethernet (2.5Gbps)
	1x DC power
VESA Mount	Yes (100/75mm , included)
AC Input	100-240V (50/60Hz)
DC Output	65W (19V/3.42A)
Total Draw Power (TDP)	15W
Kensington Lock Slot	Yes
Colour	Black
Material	PC & ABS
Operating Temperature	0degreesC to 40degreesC
Product Dimensions	13 x 12.7 x 4.7 cm
Product Weight	470g

FAQ

Can I connect multiple monitors to this Mini PC?
The PCBuilder CUBE-100U supports flexible multi-monitor setups, allowing you to extend or mirror up to three displays using its Type-C (USB4 ), DisplayPort, and HDMI 2.1 outputs for enhanced workflow efficiency.

Is the memory upgradeable on this device?
Yes, while it comes with one 8GB DDR5 SO-DIMM module installed, the unit features two dual-channel DDR5 SO-DIMM slots that support expansion up to 96GB at speeds of 5200MHz.

Does this Mini PC come with a mounting bracket for wall or monitor installation?
Absolutely, the CUBE-100U is VESA-mountable and includes a mounting bracket (100/75mm) along with M4 and M3 screws in the box to help create a clean, cable-free workspace.

What kind of connectivity does this PC offer for office or retail use?
This model is equipped with dual 2.5Gbps Ethernet ports, Intel Wi-Fi 6, Bluetooth V5.2, and high-speed USB3.2 ports to ensure stable and fast connections for POS systems or digital signage.

Can I add more storage beyond the included 512GB SSD?
The device includes one 512GB M.2 PCIe 3.0 NVMe SSD, but it has a second M.2 slot available, allowing you to configure up to two high-speed drives for expanded storage capacity.
