SY-i5BNH+MHSW Intel NUC7-i5BNHXF NUC Kabylake Core i5-7260U Dual core+ hyper-threading 2.2/3.4Ghz 16Gb Optane SSD + 1Tb 2.5" Miniature PC with Windows 10 pre-installed

SY-i5BNH+MHSW

Click to view larger image

R 11,870.00

inc. VAT

In Stock

Add To Cart

Rate

Intel NUC7-i5BNHXF NUC Kabylake Core i5-7260U Dual core+ hyper-threading 2.2/3.4Ghz 16Gb Optane SSD + 1Tb 2.5" Miniature PC with Windows 10 pre-installed

Images are for illustrative purposes and actual product may differ.

SY-i5BNH+MHSW

Miniature PCs

Intel

SY-i5BNH+MHSW information and overview

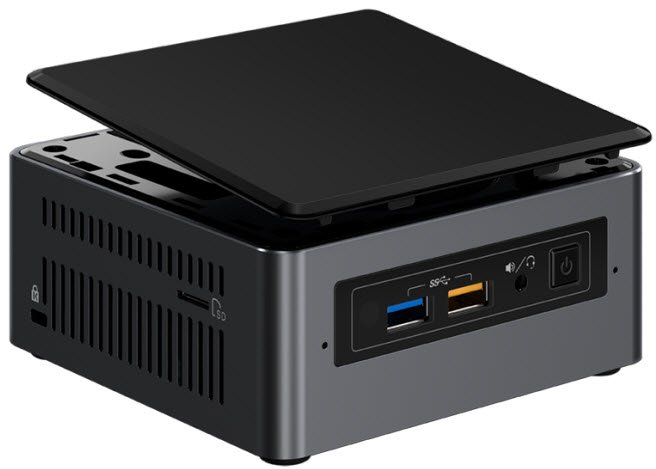

Intel NUC7-i5BNHXF NUC (Next Unit of Computing) - 115x111x51mm mini size PC, on-board 4Gb DDR4 Memory + 1Tb HDD + 16Gb optane SSD + Windows 10 pre-installed - 4K Full-HD, Black & Silver - Intel 7th generation Kabylake Core i5-7260U - Dual core+ hyper-threading (4-threads), 2.2/3.4Ghz (with VT-x+ VT-d + TXT, 14nm, 5GT/sec DMi, 34.1GB/sec memory bandwidth; 4mb L2 cache), 4Gb DDR4-2133 so-dimm installed (2 slots up to 32gb), 16Gb Optane SSD + 1Tb 2.5" HDD + miCroSDXC card reader (up to 256Gb), on-board Intel HD640 300/950mhz 4K HD graphic with 1x DP(type-C)+1x HDMi out + Gigabit LAN + wireless-AC 8265 867mbps dual-band WiFi + BT + 7.1 audio via HDMi/DP + 1x USB3.1 type-C + 4x USB3.0 + 3.5mm audio in/out combo jack + consumer infrared sensor; external 19V/65W AC-adapter, with vesa wall mount kit, with antenna for optional WiFi/BT combo module - Windows 10 pre-installed

Specifications & more information about SY-i5BNH+MHSW, Miniature PCs manufactured by Intel

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SY-i5BNH+MHSW
Essentials
Product Collection	Intel NUC Kits
Board Form Factor	UCFF (4" x 4")
Socket	Soldered-down BGA
Internal Drive Form Factor	M.2 and 2.5" Drive
# of Internal Drives Supported	2
Lithography	14 nm
TDP	15 W
DC Input Voltage Supported	12-19 VDC
Pre-Installed Operating System	Windows 10, 64-bit
Processor Included	Intel Core i5-7260U Processor (4M Cache, up to 3.40 GHz)
Supplemental Information
Embedded Options Available	No
Description	Other features: 16GB Intel Optane Memory M.2 module pre-installed, 1TB HDD, Windows 10 x64 Home, includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones
Memory Specifications
Pre-Installed Memory	1x 4GB DDR4-2400
Max Memory Size (dependent on memory type)	32 GB
Memory Types	DDR4-2133 1.2V SO-DIMM
Max # of Memory Channels	2
Max Memory Bandwidth	34.1 GB/s
Max # of DIMMs	2
ECC Memory Supported	No
Graphics Specifications
Integrated Graphics	Yes
Graphics Output	HDMI 2.0a; USB-C (DP1.2)
# of Displays Supported	3
Expansion Options
PCI Express Revision	Gen3
PCI Express Configurations	M.2 slot with PCIe x4 lanes
Removable Memory Card Slot	SDXC with UHS-I support
M.2 Card Slot (storage)	22x42/80
I/O Specifications
USB Configuration	2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision	2.0, 3.0
# of USB Ports	6
USB 2.0 Configuration (External + Internal)	0 + 2
USB 3.0 Configuration (External + Internal)	2B 2F + 0
Total # of SATA Ports	2
Max # of SATA 6.0 Gb/s Ports	2
Audio (back channel + front channel)	7.1 digital (HDMI mDP); L+R+mic (F)
Integrated LAN	10/100/1000
Integrated Wifi	Intel Wireless-AC 8265 + BT 4.2
Integrated Bluetooth	Yes
Consumer Infrared Rx Sensor	Yes
Additional Headers	CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt 3 Ports	1
Advanced Technologies
Intel Optane Memory Supported	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel vPro Technology	No
TPM	No
Intel HD Audio Technology	Yes
Intel Rapid Storage Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Platform Trust Technology (Intel PTT)	Yes
Security & Reliability
Intel AES New Instructions	Yes
