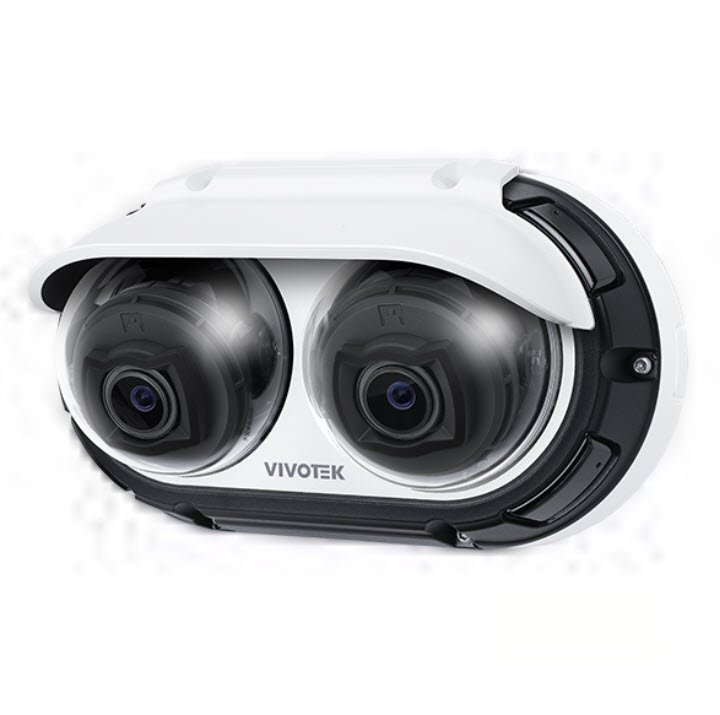

VIVOTEK MA9311-EHTV

Overview summary:

The VIVOTEK MA9311-EHTV is a cutting-edge outdoor dual-lens panoramic surveillance camera engineered for 180° wide-area coverage, making it ideal for monitoring large spaces such as parking lots, city streets, and industrial sites. Featuring dual 5 MP (2560x1920) sensors running at 30 fps with motorized varifocal P-iris lenses (2.8–12 mm), this intelligent IP camera delivers razor-sharp imagery day and night . Its robust design-certified IP66/67, IK10, and NEMA 4X-ensures reliable performance in harsh environments, while built-in IR illuminators with Smart IR III and zoned control guarantee up to 20 m of nighttime visibility.

Powered by advanced AI analytics-including Smart VCA, Vision-Object Analytics, DeepSearch, and Smart Motion Detection-the MA9311-EHTV offers precision event triggering and quick forensic search . Its 120 dB WDR Pro enhances image clarity in high-contrast scenes, and the powerful ePTZ with 48x digital zoom provides flexible, detailed monitoring without mechanical movement. Additionally, Smart Stream III optimizes bandwidth and storage efficiency. On the cybersecurity front, this camera incorporates signed firmware, Secure Boot, TPM 2.0, and Trend-Micro IoT protections, ensuring secure, tamper-resistant operation.

For flexible storage options, it supports microSD cards up to 1 TB plus NAS integration, and features two-way audio with built-in mic, mic-in, and line-out. With support for H.265, H.264, MJPEG codecs and ONVIF compliance, it ensures seamless integration into modern IP surveillance systems.

Overview:

The MA9311-EHTV is an advanced outdoor dual-lens panoramic surveillance camera offering 180° coverage with two 5-megapixel sensors. Ideal for wide-area surveillance such as parking lots, city streets, or industrial sites, it combines high-resolution imaging, rugged protection, AI-powered video analytics, and secure firmware-all in a single IP address unit.

Features:

• Dual 5 MP (2560 x 1920) sensors delivering 30 fps per channel
• Motorized varifocal lenses (2.8–12 mm) with P-iris for superior optical precision
• Robust build certified to IP66/67, IK10, NEMA 4X-resistant to dust, water, and vandalism
• Built-in IR illuminators effective up to 20 m with Smart IR III and zoned IR control (4 zones)
• 120 dB WDR Pro ensures clear visibility in scenes with mixed lighting
• ePTZ with 48x digital zoom (4x IE plugin, 12x built-in)
• AI analytics: Smart VCA, Smart Motion Detection, Vision-Object Analytics, DeepSearch
• Cybersecurity: Signed firmware, Secure Boot, TPM 2.0, Trend-Micro IoT security
• Video codecs: H.265/H.264/MJPEG; Smart Stream III for bandwidth optimization
• Storage: Supports microSD/SDHC/SDXC up to 1 TB, plus NAS recording
• Audio: Built-in mic, plus external mic-in and line-out for two-way audio

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	VIVOTEK MA9311-EHTV
Image Sensor	1/2.8" Progressive CMOS x 2
Max. Resolution	2560 x 1920 (5 MP) per channel
Lens	Motorized varifocal, 2.8-12 mm, P-iris
Field of View	Horizontal 96°-30°, Vertical 69°-23°, Diagonal 129°-38°
Frame Rate	H.265/H.264: 30 fps @ 5 MP; MJPEG: 15 fps
WDR	WDR Pro (120 dB)
Infrared	IR LED x4, Smart IR III, 20 m range, 4 zones
Minimum Illumination	0.05 lux (color), 0.005 lux (B/W), 0 lux with IR
Pan/Tilt/Rotation	Pan: 350°, Tilt: 80°, Rotation: 350° (each lens)
ePTZ	48x digital zoom
Compression	H.265, H.264, MJPEG
Bitrate Profiles	Up to 3 streams per channel (14 profiles total)
Storage Options	microSD (up to 1 TB), NAS
Audio Support	Built-in mic, external mic-in, line-out for two-way audio
Cybersecurity	Secure Boot, signed firmware, TPM 2.0, Trend-Micro IoT
Networking	ONVIF, IPv4/IPv6, PoE, SSL/TLS, 802.1X, SNMP, RTSP/RTP/RTCP
Ingress Protection	IP66, IP67
Vandal Resistance	IK10, NEMA 4X
Operating Temp.	-40 °C to 55 °C (IR-off), -40 °C to 50 °C (IR-on)
Power Consumption	Max ~25.5 W (IR-on), ~19.8 W (IR-off)
Storage (Memory)	Flash 8 GB, RAM 4 GB
System-on-Chip	Multimedia SoC
Dimensions	Approx. 230 x 135 x 112 mm
Weight	Not specified
