338-BJEU

Overview:

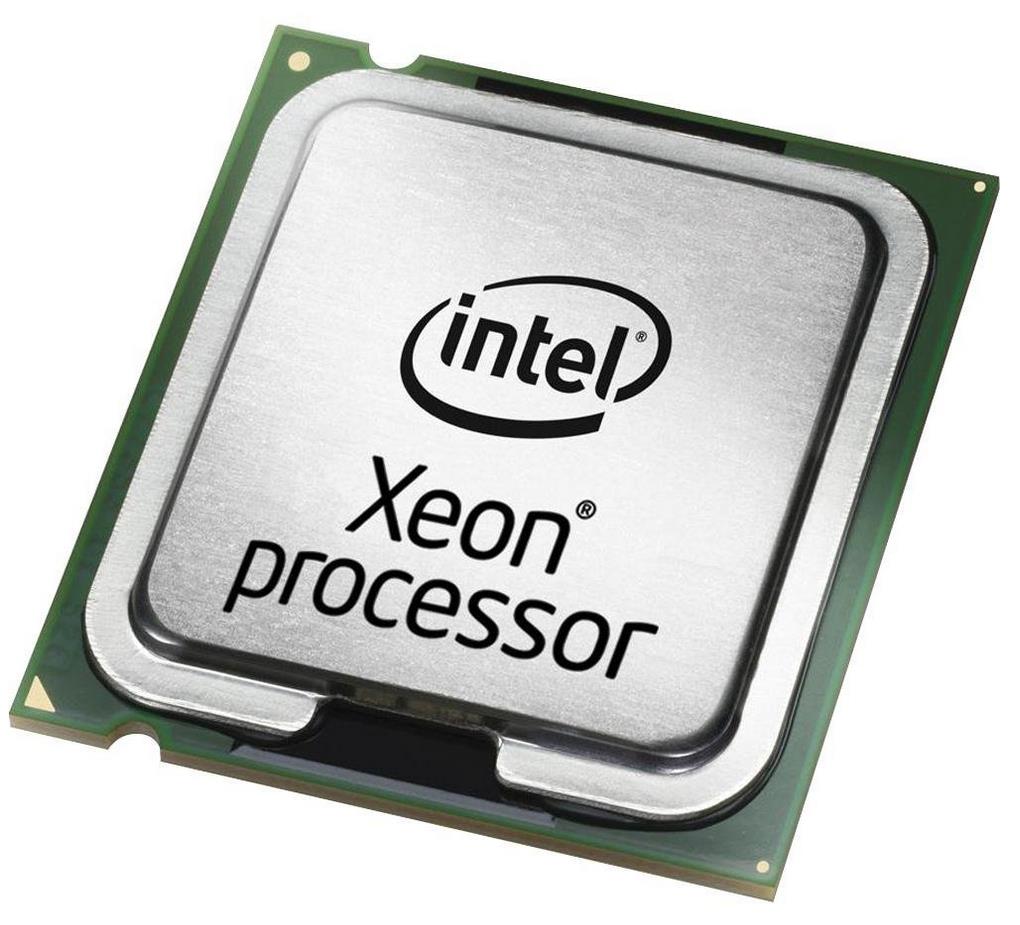

Intel Xeon E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 2133MHz, processor only,Customer Kit
The Intel E5-2620 v4 2.10 GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep technology that allows tradeoffs to be made between performance and power consumption. Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the E5-2620 v4 2.10 GHz Eight Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.

Manufacturer Part# : CNGW2
Dell Part# : 338-BJEU

Features:

This product is compatible with the following systems:

• PowerEdge R430
• PowerEdge R530
• PowerEdge R630
• PowerEdge R730
• PowerEdge T430

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	338-BJEU
Item	Intel Xeon Processor E5-2620 v4 (20M Cache, 2.10 GHz)
Code Name	Broadwell
Essentials
Vertical Segment	Server
Processor Number	E5-2620V4
Status	Launched
Launch Date	Q1'16
Lithography	14 nm
Performance
# of Cores	8
# of Threads	16
Processor Base Frequency	2.10 GHz
Max Turbo Frequency	3.00 GHz
Cache	20 MB SmartCache
Bus Speed	8 GT/s QPI
# of QPI Links	2
TDP	85 W
VID Voltage Range	0
Memory Specifications
Max Memory Size (dependent on memory type)	1.54 TB
Memory Types	DDR4 1600/1866/2133
Max # of Memory Channels	4
Max Memory Bandwidth	68.3 GB/s
Physical Address Extensions	46-bit
ECC Memory Supported	Yes
Expansion Options
Scalability	2S
PCI Express Revision	3
PCI Express Configurations	x4, x8, x16
Max # of PCI Express Lanes	40
Package Specifications
Sockets Supported	FCLGA2011-3
Max CPU Configuration	2
TCASE	74°C
Package Size	45mm x 52.5mm
Advanced Technologies
Intel Turbo Boost Technology	2
Intel vPro Technology	Yes
Intel Hyper-Threading Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel 64	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel AVX2
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Demand Based Switching	Yes
Thermal Monitoring Technologies	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology	No
Security & Reliability
Intel AES New Instructions	Yes
Secure Key	Yes
Intel OS Guard	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
