Overview

ASUS Master Thunderbolt 5 Dock DC510
Transform your compatible laptop into a fully equipped workstation with the ASUS Master Thunderbolt 5 Dock. Designed for creators, professionals, and power users, this premium 13-in-1 Thunderbolt 5 docking station connects multiple displays, high-speed storage, networking, and peripherals through a single cable. With ultra-fast 80Gbps bandwidth, integrated storage expansion, and support for up to three 4K displays, it provides a streamlined workspace that boosts productivity while reducing cable clutter.

Description

The ASUS Master Thunderbolt 5 Dock DC510 is built for demanding creative and professional workflows. Whether you are editing high-resolution video, managing large image libraries, working with multiple displays, or transferring massive files, this dock delivers outstanding speed and flexibility. Integrated SD and microSD UHS-II card readers, 2.5 Gigabit Ethernet, Thunderbolt 5 connectivity, and an internal M.2 NVMe SSD slot make it an ideal solution for photographers, designers, video editors, engineers, and business users looking for a powerful desktop setup.

Features

Built for Multi-Display Productivity
Expand your workspace with exceptional display support made possible by Thunderbolt 5 technology. The dock allows professionals to multitask efficiently across multiple high-resolution monitors, making creative work, data analysis, and content production significantly more comfortable.

Display support includes:

• Up to three 4K displays at 144Hz
• Up to two 8K displays at 60Hz
• Single 8K display at 60Hz

Fast Connectivity for Modern Workflows
The ASUS Master Thunderbolt 5 Dock provides a wide selection of ports that allow you to connect everything from external drives and cameras to networking equipment and accessories without constantly swapping cables.

Available connections include:

• 3 x Thunderbolt 5 ports
• 3 x USB 3.2 Gen 2 Type-A ports (10Gbps)
• 1 x USB 3.0 Gen 2 Type-A port (5Gbps)
• 1 x RJ45 2.5 Gigabit Ethernet
• SD Card Reader 4.0 (UHS-II)
• microSD Card Reader (UHS-II)
• Audio combo jack
• Kensington security lock
• DC power input

Ultra-Fast Data Transfers
Thunderbolt 5 technology delivers up to 80Gbps bandwidth, allowing large projects to move between devices in seconds. Compared to previous generations, file transfers are dramatically faster, helping professionals spend less time waiting and more time creating.

Performance highlights:

• Up to 80Gbps Thunderbolt 5 bandwidth
• Approximately 6 seconds to transfer a 20GB file
• Up to 140W Power Delivery passthrough via Thunderbolt 5
• 2.5GbE wired networking for fast and reliable connectivity

Integrated M.2 SSD Expansion

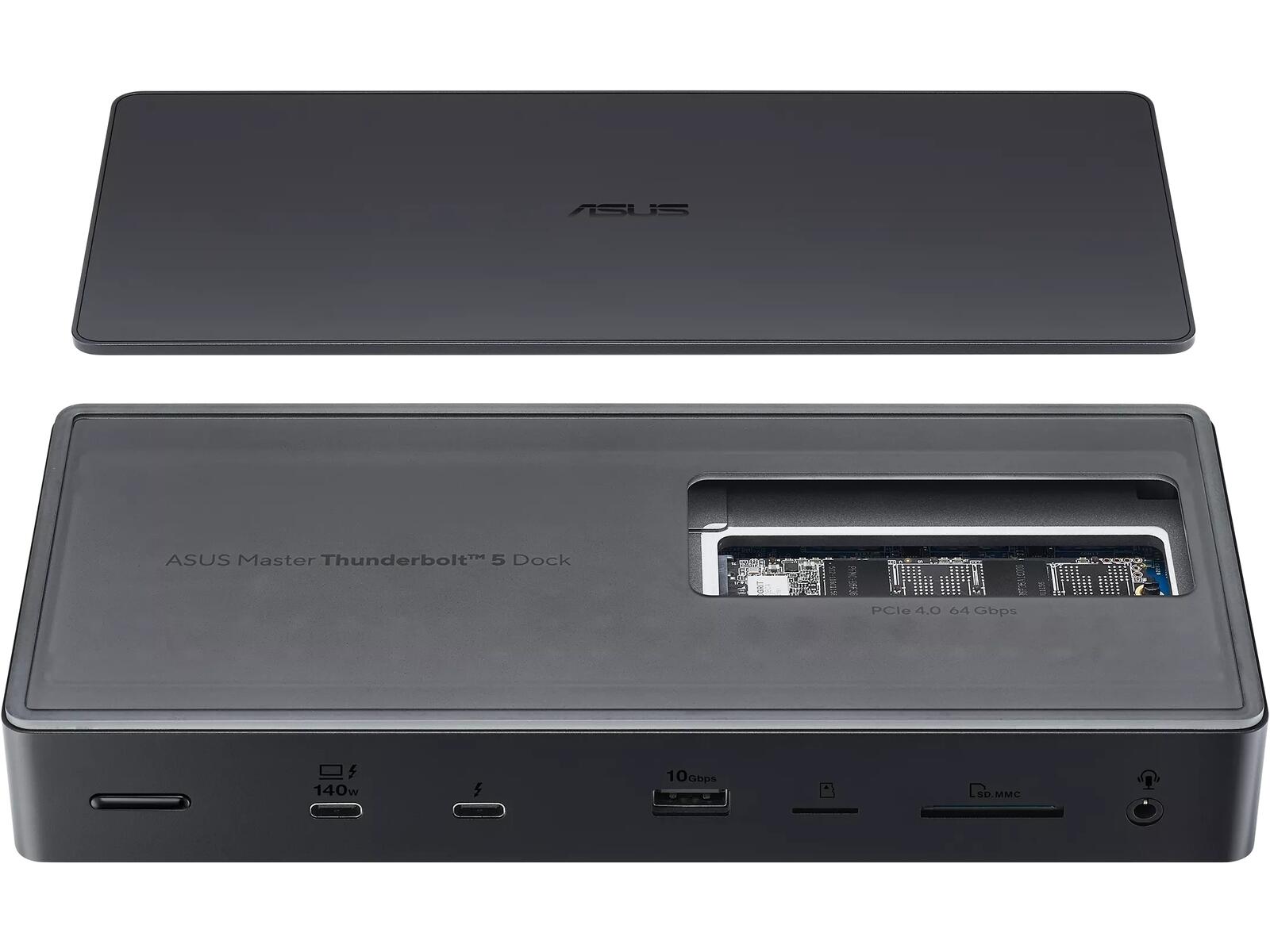

A unique advantage of the ASUS Master Thunderbolt 5 Dock is its built-in M.2 NVMe PCIe 4.0 SSD slot. The magnetic tool-free cover provides quick access for installing or upgrading storage without tools, making it easy to expand workspace capacity for demanding creative projects.

Benefits include:

• M.2 NVMe PCIe 4.0 2280 SSD support
• Tool-free installation
• High-speed internal storage access
• Ideal for large media libraries and project files

Designed for Creative Professionals
The premium aluminium enclosure combines durability with a clean, modern appearance. Built-in ambient RGB lighting adds a subtle visual touch that complements both home offices and professional studios without compromising functionality.

Thunderbolt Share Support
Thunderbolt Share enables fast PC-to-PC collaboration by allowing users to securely share displays, keyboards, mice, storage, and files between compatible computers. It also simplifies migrating data from one PC to another, making workstation upgrades much faster.

Key Details

• Product: ASUS Master Thunderbolt 5 Dock
• Part Number / SKU: ASUS DOCK DC510
• 13-in-1 professional docking station
• Three Thunderbolt 5 ports
• Triple 4K 144Hz display support
• Dual 8K 60Hz display capability
• 80Gbps data transfer speeds
• 140W Power Delivery passthrough
• Built-in M.2 NVMe PCIe 4.0 SSD slot
• 2.5 Gigabit Ethernet
• UHS-II SD and microSD card readers
• Premium aluminium construction
• Integrated ambient RGB lighting
• 100cm Thunderbolt cable included

For professionals seeking a powerful single-cable workstation solution, the ASUS Master Thunderbolt 5 Dock DC510 combines advanced connectivity, ultra-fast performance, expandable storage, and extensive display support into one compact device that is ready for demanding creative and business environments.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ACAS90XB09NN-BDS010
Model	ASUS Master Thunderbolt 5 Dock DC510
Category	Dock
I/O Ports	1x DC jack(7.4 phi)
	1 x USB 3.0 Gen2 Type-A port (5Gbps/5.0V 0.9A)
	3 x USB 3.2 Gen2 Type-A port (10Gbps/5.0V 0.9A)
	1 x M.2 NVMe PCIe 4.0 2280 SSD Slot
	3 x Thunderbolt 5
	1x Power button with indicator LED
	1x Kensington lock
	1x Audio combo jack
	1x RJ45 2.5 GbE
	1x Micro SD card reader (UHS II)
	1x SD card reader 4.0 (UHS II)
Video Resolution	Thunderbolt 5 Ext. Output: 3840 x 2160@144Hz
OS Support	MacOS
	Windows 10 or above
Power Adapter	180W DC20.0V / 9.0A
Secutiry	Kensington lock
Cable Length	100cm
Color	Black
Weight	765g
Dimensions	220 x 96.7 x 38.1 mm
Material	Plastic, Metal
Package Contents	ASUS Master Thunderbolt 5 Dock, 180W adapter, power cord, user manual, warranty card
Power button	For ASUS ExpertBook series
	Dock power button emulates ASUS Expertbook power button.
	For other notebooks
	Dock power button can turn on/off LED and the dock power
