AJAX-MC-INDR-B

Overview:

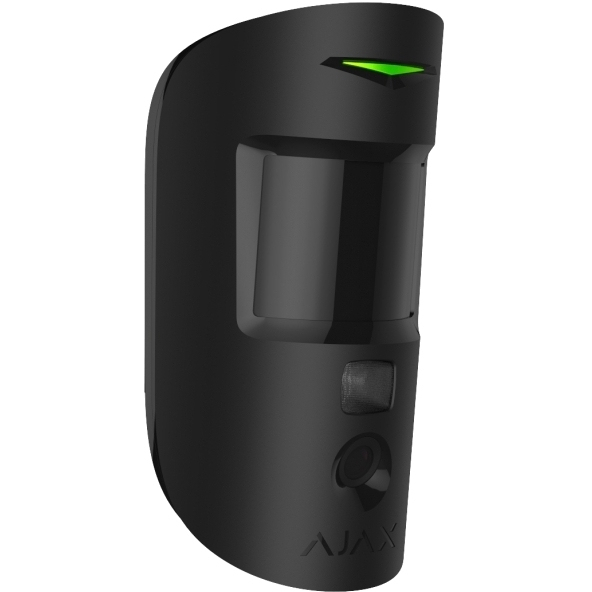

MotionCam
Wireless motion detector with a photo camera to verify alarms

Features:

Intellect against false alarms
We have combined special optics with a software filter for false alarms in motion detectors. Along with a professional installation, it gives high detection accuracy.

• The detector instantly captures human motion in the protected area.
• The specially designed Fresnel lens provides the most informative thermal diagram.
• SmartDetect software algorithm filters out false alarms.

Special lens
The pattern of the Fresnel lens sections is designed so that the diagrams of the infrared radiation of a human, an animal, and thermal noise have significant differences. Large sections of the lens capture radiation at the level of the head and torso of an adult. Smaller sections make the diagram more detailed. The MotionCam Jeweller lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Professional installation
Installing the MotionCam Jeweller in the right spot, at the optimum height, and perpendicular to the likely intrusion path ensures an informative thermal diagram. It significantly improves detection accuracy. Professional installation also makes the pet immunity feature more effective.

Filter for thermal interferences
The detector instantly analyzes the thermal diagram from the sensor: the infrared radiation intensity, the heat spot size, the motion speed, the time spent in the detection zone, and other parameters.

Ajax engineers have analyzed thousands of IR sensor triggerings caused by humans, animals, and thermal interference and developed SmartDetect. The software algorithm finds false alarm markers instantly and with high accuracy. As a result, the detector accurately responds to a human and does not bother the user with false alarms.

• Heat spot size
• Speed of movement
• Infrared radiation intensity
• False alarm
• Real alarm

Temperature compensation
Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body.

With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Sensitivity level
With the sensitivity setting, the detector adapts to the conditions of a particular room, considering possible thermal interference or pets. Changing the sensitivity setting affects the markers by which false alarms are filtered.

With low sensitivity, the detector is less likely to respond even to an active pet. And with high sensitivity, it will raise the alarm in case of any motion in the detection zone.

Sensitivity is configured in the Ajax app both on-site and remotely.

More than a photo. Faster than a video.
MotionCam Jeweller will show the actual situation from the scene even before the burglars understand that theyre busted. An animated series of photos follows the instant alarm for an accurate situation appraisal. MotionCam Jeweller can only take photos in case of an alarm. The detector software architecture does not support taking a photo on demand.

Advantages of photo verification - Less concern
Up to 70% of false alarms happen when disarming the security system. With MotionCam, system users and monitoring company operators can verify in seconds whether an alarm is real and respond accordingly.

More security
Both system users and a rapid response team need to clearly understand what happens on the scene in case of an alarm. MotionCam will show how many intruders are armed and whether they are still in the room. This will help a security company patrol prepare, and the users avoid danger.

Evidence in a smartphone
A series of animated photos provide the law enforcers with the description of intruders, no time wasted. MotionCam will capture them even in complete darkness, thanks to the IR backlight. The chances of catching burglars in the act increase.

MotionCam PhOD
MotionCam Jeweller detector is also available in a PhOD (Photo on Demand) version. The photos are taken when the user and the security company operator request them or when the FireProtect Jeweller and FireProtect Plus Jeweller fire detectors trigger.

Privacy as a top priority
MotionCam is designed to control security, not privacy. Photos are protected from prying eyes at the detector, system and software levels.

Strict permission distribution
The special menu in the Ajax app helps accurately adjust access to visual data for users and security company operators: who and when can send a request for a photo, who can view the received pictures and streams from integrated surveillance cameras.

Encryption and GDPR
Graphic data is securely protected by encryption at each step of transmission and storage. Only hub users can access its virtual storage on Ajax Cloud and view photos taken by MotionCam detectors. The Ajax Cloud is located on geographically distributed servers in compliance with the General Data Protection Regulation (GDPR) requirements.

Detailed event log
Only users with access rights can view the photos in the system event log.

The event log stores the last 500 system events.

Unique wireless technologies
MotionCam detector uses two radio protocols simultaneously: to inform about alarms and Wings to transmit photos. Provides instant alarm delivery, while Wings delivers the first photo from the scene in just 9 seconds. Even with communication breakdowns and a weak signal. The communication range with the hub is up to 1,700 meters, so the detector can be easily installed where it will be the most effective.

• Installation range up to 1,700 m
• Photo delivery under 9 seconds
• Two-way encrypted communication
• Jeweller
• Solution for a large-scale security

Communication loss detection
The wireless devices polling frequency is adjusted by PRO or user with admin rights in the in-app hub settings. With a minimum interval of 12 seconds, the system takes 36 seconds to detect the communication loss with the device and notify the security company and system users.

Notification of dismantling
The detector enclosure is equipped with a tamper that detects an attempt to remove the device from the SmartBracket mounting panel or tear it off the surface.

Device authentication
For authentication, the hub checks the device's unique parameters during each communication session. If any parameter fails the check, the hub ignores device commands.

Data protection
All data that the system stores and transmits is protected by block encryption with a dynamic key. Radio transmission uses frequency hopping, which makes interception and jamming more difficult.

Notifying about events
The monitoring station receives notifications on alarms and detector events in 0.15 seconds. The information includes time, device model and name, event type, and location room.

Jamming detection
The hub analyzes the quality of communication with the system devices. If some data packets are lost, the control panel will change the transmission frequencies and inform the monitoring station about radio interferences.

Intuitive installation and connection
Add the MotionCam detector to an Ajax security system with a few taps. Open the Ajax app, scan the QR code and assign the detector to the room. There is no need to disassemble the detector enclosure. The SmartBracket mounting panel allows you to securely install the detector on a flat surface or in a corner.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AJAX-MC-INDR-B
Compatibility
Compatible hub models	Hub 2 (2G)
	Hub 2 (4G)
	Hub 2 Plus
	Hub Hybrid (2G)
	Hub Hybrid (4G)
Compatible range extenders	ReX 2
Communication
Jeweller communication technology	Proprietary wireless communication technology to transmit alarms and events.
	It features:
	Two-way communication.
	Advanced anti-sabotage.
	Block encryption featuring a dynamic key.
	Instant notifications.
	Remote configuration via the Ajax apps.
Frequency bands	866.0 - 866.5 MHz
	868.0 - 868.6 MHz
	868.7 - 869.2 MHz
	905.0 - 926.5 MHz
	915.85 - 926.5 MHz
	921.0 - 922.0 MHz
	Depends on the sales region.
Maximum effective radiated power (ERP)	up to 20 mW
Radio signal modulation	GFSK
Radio signal range	up to 1,700 m
	Between detector and hub or range extender in an open space.
	Calculate radio signal range at the facility
Encrypted communication	All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology	Proprietary wireless communication technology to transmit photo verifications.
	It features:
	Two-way communication.
	Block encryption featuring a dynamic key.
	Advanced anti-sabotage.
	Data package reloading in case of transmission errors.
	Photo delivery check.
Frequency bands	866.0 - 866.5 MHz
	868.0 - 868.6 MHz
	868.7 - 869.2 MHz
	905.0 - 926.5 MHz
	915.85 - 926.5 MHz
	921.0 - 922.0 MHz
	Depends on the sales region.
Radio signal range	up to 1,700 m
	Between detector and hub or range extender in an open space.
	Calculate radio signal range at the facility
Encrypted communication	All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element	1 x PIR sensor
Motion detection distance	up to 12 m
	When installed at a height of 2.4 m.
Motion detection angles	horizontal - 88.5°
	vertical - 80°
Motion detection speed	from 0.3 to 2.0 m/s
	The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity	3 levels
	Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity	weight: up to 20 kg
	height: up to 50 cm
False alarm prevention	SmartDetect
	Software algorithm.
Temperature compensation	Effective motion detection at temperatures from -10°C to +40°C.
Photo verification
Photo by alarm	A built-in camera is activated if the detector is armed, and motion is detected.
Photo resolution	640 x 480 px
	320 x 240 px (by default)
	160 x 120 px
	Adjusted by PRO or user with admin rights in the Ajax app.
IR backlight	For night photography and low light conditions.
Pictures in a series	from 1 to 5 images with resolution of 320 x 240 px or 160 x 120 px
	from 1 to 3 images with resolution of 640 x 480 px
	Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time	up to 7 s - 160 x 120 px resolution
	up to 9 s - 320 x 240 px resolution
	up to 20 s - 640 x 480 px resolution
	When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2-3 bars. Photo delivery time when the detector is connected via range extender is available here.
Recommendations
Recommendations	It is recommended to install the detector at a height of 2.4 m.
	Device is designed for indoor use only.
Anti-sabotage protection
Tampering alarm	Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against forgery	device authentication
Communication loss detection	within 36 s
	Detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Power supply	2 x CR123A battery
	Up to 4 years of battery life.
Enclosure
Dimensions	135 x 70 x 60 mm
Weight	167 g
Operating temperature range	from -10°C to +40°C
Operating humidity	up to 75%
Protection class	IP50
Colour
Colour	Black
	White
Complete set
Complete set	MotionCam Jeweller
	SmartBracket mounting panel
	Installation kit
	2 x CR123A battery (pre-installed)
	Quick Start Guide
