AJAX-MC-PHOD-OUT-HM-W

Overview

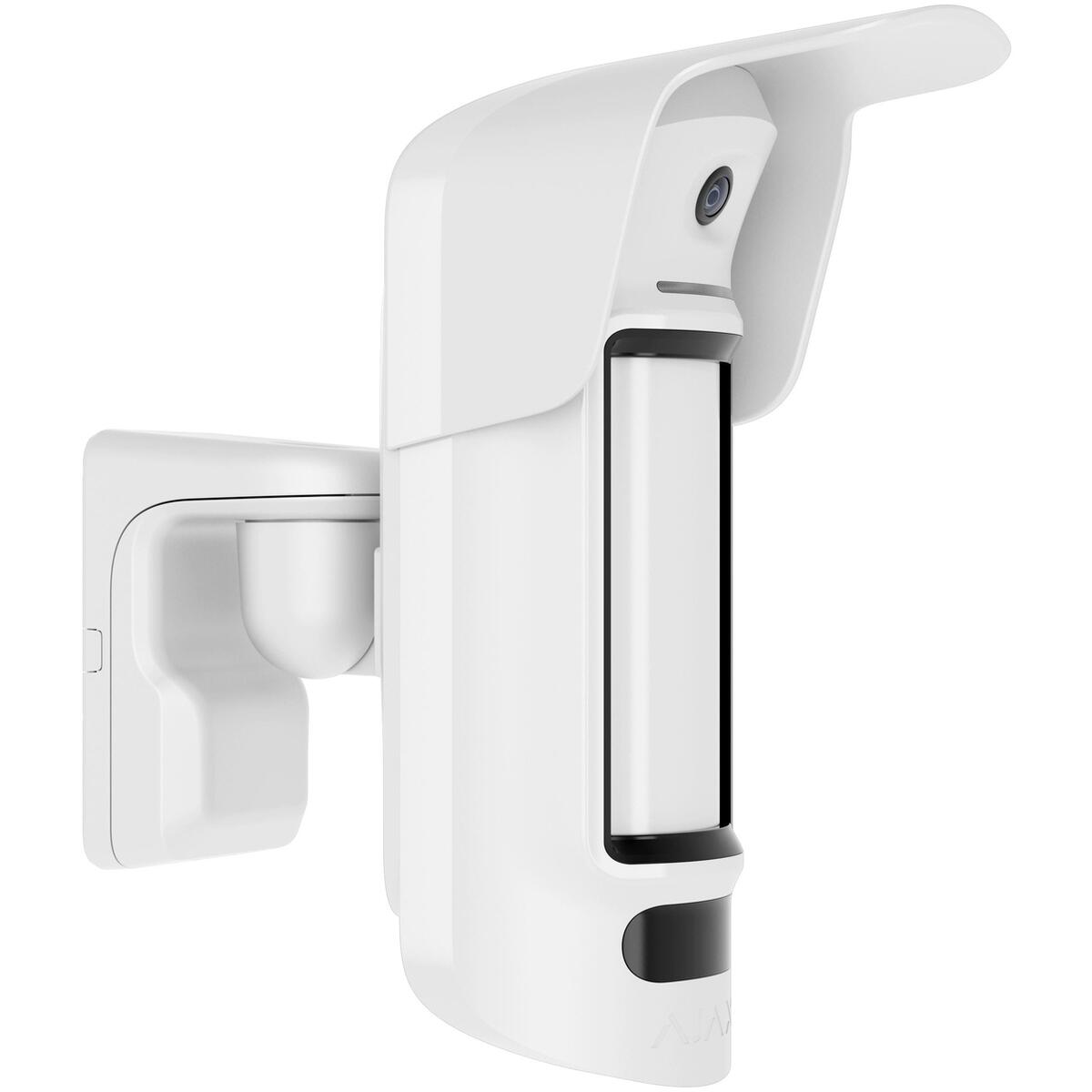

AJAX MotionCam Outdoor HighMount PhOD Wireless Motion Detector with Camera AJAX-MC-PHOD-OUT-HM-W

The AJAX MotionCam Outdoor HighMount PhOD is engineered for reliable perimeter protection in demanding outdoor environments. Designed for installation at heights between 2 and 4 meters, it combines dual PIR sensors with a 24 GHz microwave sensor to deliver accurate motion detection up to 15 meters. Advanced filtering algorithms minimize false alarms caused by environmental factors such as moving vegetation or heat fluctuations. Integrated photo verification enhances situational awareness by providing visual confirmation of events in real time, whether triggered by alarms, schedules, or manual requests.

Description

This high-mount outdoor motion detector integrates intelligent detection with visual verification to strengthen security across residential, commercial, and industrial sites. It captures clear images in both daylight and low-light conditions using HDR and infrared illumination, ensuring reliable monitoring at all times. With encrypted wireless communication, anti-masking protection, and flexible installation via a swivel mount, it offers a robust and adaptable solution for securing wide outdoor areas. The device supports long-range connectivity and can operate on battery power or an external supply, making it suitable for both remote and infrastructure-rich environments.

Features

Built for Accurate Outdoor Detection
The device uses a dual-layer detection system that requires confirmation from both PIR and microwave sensors before triggering an alert. This significantly reduces false alarms while maintaining high sensitivity to genuine threats. Temperature compensation ensures consistent performance in extreme climates, maintaining detection accuracy from -25 degrees C to +60 degrees C.

Detection capabilities include:

• Detection range up to 15 meters with optimized sensitivity levels
• 90 degree horizontal and vertical motion coverage
• Motion detection speed from 0.3 to 2.0 m/s
• Adjustable sensitivity with three configurable levels

Visual Verification for Real-Time Awareness
A built-in camera enables immediate visual confirmation of motion events. Images are transmitted quickly and securely, allowing users to assess situations without delay.

Photo functionality includes:

• Photo by alarm, on demand, by schedule, by scenario, and during arming or disarming
• Up to 5 images per event sequence
• Delivery time as fast as 9 seconds depending on resolution
• HDR imaging for balanced exposure in mixed lighting
• Infrared illumination for night visibility

Reliable Wireless Communication
The system uses proprietary communication protocols to ensure stable and secure data transmission, even in complex environments with physical obstructions.

Key communication highlights:

• Wireless range up to 1700 meters in open space
• Encrypted two-way communication with dynamic key protection
• Frequency hopping to prevent interference and jamming
• Instant alerts for connection loss or signal disruption

Security Against Tampering and Interference
Multiple layers of protection safeguard the device from physical and electronic interference. The system continuously monitors its status and alerts users to any irregularities.

Protection mechanisms include:

• Tamper alarm for unauthorized removal or opening
• Anti-masking system to detect obstruction attempts
• Magnetometer to identify movement or repositioning
• Device authentication to prevent spoofing
• Regular system polling for real-time diagnostics

Flexible Installation and System Integration
Installation is straightforward using a mounting bracket and QR code pairing via the mobile app. The swivel mount allows precise angle adjustment to maximize coverage.

Deployment advantages:

• Recommended mounting height of 2 to 4 meters
• Adjustable viewing angle via metal swivel mount
• Remote configuration and monitoring through mobile apps
• Seamless integration with broader security ecosystems

Power and Environmental Durability
The detector is designed for long-term outdoor use with minimal maintenance, supported by efficient power management and a weather-resistant enclosure.

Power and durability details:

• Powered by 6 x CR123A batteries with up to 3 years of operation
• Optional 12 to 24 V external power supply support
• IP55-rated enclosure for dust and water resistance
• Operating humidity up to 95 percent

Technical Summary and Identification
This model, part number AJAX-MC-PHOD-OUT-HM-W, is optimized for high-mount outdoor surveillance where accuracy and verification are critical. It combines intelligent detection, visual confirmation, and secure communication into a single integrated device suitable for high-risk or large-area monitoring scenarios.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AJAX-MC-PHOD-OUT-HM-W
Communication	Jeweller communication technology
	Proprietary wireless communication technology to transmit commands, alarms, and events.
	Key features:
	Two-way communication.
	Advanced sabotage protection.
	Block encryption featuring a dynamic key.
	Instant notifications.
	Remote control and configuration in Ajax apps.
	Frequency bands
	866.0-866.5 MHz
	868.0-868.6 MHz
	868.7-869.2 MHz
	905.0-926.5 MHz
	915.85-926.5 MHz
	921.0-922.0 MHz
	Depends on the sales region.
	Maximum effective radiated power (ERP)
	up to 25 mW
	Automatic power control to reduce power consumption and radio interference.
	Radio signal modulation
	GFSK
	Radio communication range
	up to 1,700 m
	Between the device and a hub (or a range extender) in an open space.
	Calculate radio communication range at the facility
	Encrypted communication
	All stored and transmitted data are protected by block encryption featuring a dynamic key.
	Frequency hopping
	To prevent radio interference and jamming.
	Wings communication technology
	Proprietary wireless communication technology to transmit photo verifications.
	Key features:
	Two-way communication.
	Advanced sabotage protection.
	Block encryption featuring a dynamic key.
	Data packages reload in case of transmission errors.
	Photo delivery check.
	Frequency bands
	866.0-866.5 MHz
	868.0-868.6 MHz
	868.7-869.2 MHz
	905.0-926.5 MHz
	915.85-926.5 MHz
	921.0-922.0 MHz
	Depends on the sales region.
	Radio communication range
	up to 1,700 m
	Between the device and a hub (or a range extender) in an open space.
	Calculate radio communication range at the facility
	Encrypted communication
	All stored and transmitted data are protected by block encryption featuring a dynamic key.
	Frequency hopping
	To prevent radio interference and jamming.
Detection	Sensitive elements
	2 x PIR sensor
	1 x K-band microwave sensor
	Operating frequency: 24 GHz.
	Motion detection distance
	up to 15 m
	When installed at a height of
	2-4 m.
	Depends on the sensitivity level adjusted in the device settings.
	Motion detection angle
	horizontal: 90degrees
	Motion detection speed
	from 0.3 to 2.0 m/s
	The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility.
	Sensitivity
	3 levels
	Adjusted by a PRO or a user with admin rights in Ajax apps.
	False alarm prevention
	SmartDetect
	Software algorithm.
	Temperature compensation
	Effective movement detection in temperatures
	from -25 degreesC to +60 degreesC.
Photo verification	Photo by alarm
	The built-in camera is activated if the detector is armed and movement is detected.
	Photo on demand
	A user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.
	Photo by scenario
	The detector takes pictures automatically when other Ajax detectors are triggered. The feature is not configured by default.
	Photo by schedule
	The detector automatically takes photos at the specified time. The feature is not configured by default.
	Photo by arming/disarming
	The detector automatically takes photos when the security state is changed.
	Adjustable photo resolution
	640 x 480 px
	320 x 240 px (default)
	Adjusted by a PRO or a user with admin rights in Ajax apps.
	Camera viewing angles
	horizontal: 115degrees
	vertical: 84degrees
	HDR image
	Improves the accuracy of detail in bright and dark scenes.
	IR backlight
	For night photography and low light conditions.
	Series of pictures
	from 1 to 5 images with a resolution of 320 x 240 px
	from 1 to 3 images with a resolution of 640 x 480 px
	Adjusted by a PRO or a user with admin rights in Ajax apps.
	Photo delivery time
	up to 9 s for 320 x 240 px resolution
	up to 20 s for 640 x 480 px resolution
	Photo delivery time depends on the image resolution selected in the device settings.
Recommendations	It is recommended to install the detector at a height of
	2-4 m.
	The
	pet immunity
	feature is not available for this device.
	The device is designed for outdoor and indoor use.
Sabotage protection	Tamper alarm
	Notifications of attempts to remove the detector from the mounting panel.
	Magnetometer
	detects attempts to tilt or shift the detector or detach it from the surface
	Anti-masking system
	detects attempts to block the detector view
	Holding screw
	secures the device on SmartBracket
	Protection against spoofing
	device authentication
	Communication loss detection
	after 36 s
	Detection time depends on the Jeweller/Fibra settings.
Main power supply	Battery
	6 x CR123A
	Pre-installed.
	Type
	type C
	Calculated battery life
	up to 3 years
	Detector operating voltage range
	3.8-6.5 V?
	Detector nominal operating voltage
	6 V?
	Quiescent detector current consumption at nominal voltage
	45 μA
	Maximum detector current consumption at nominal voltage
	1,200 mA
	Full battery capacity
	4,800 mAh
	Low battery voltage
	4.2 V?
	Low battery recovery voltage
	5.0 V?
	End-of-life battery voltage
	3.8 V?
	The device is switched off.
	End-of-life battery capacity
	300 mAh
	Manufacturer
	Huiderui
Optional power supply	External supply operating voltage
	12-24 V?
	The batteries serve as a backup when an external power supply is connected.
Enclosure	Dimensions with the swivel mount
	234 x 98 x 230 mm
	Dimensions without the swivel mount
	234 x 98 x 137 mm
	Weight with the swivel mount
	1,010 g
	Weight without the swivel mount
	620 g
	Operating temperature range
	from -25 degreesC to +60 degreesC
	Operating humidity
	up to 95%
	Protection class
	IP55
Color	White
Complete set	MotionCam Outdoor HighMount (PhOD) Jeweller
	6 x CR123A battery (pre-installed)
	SmartBracket mounting panel
	Swivel mount
	Hood
	Installation kit
	Quick start guide
