Overview:

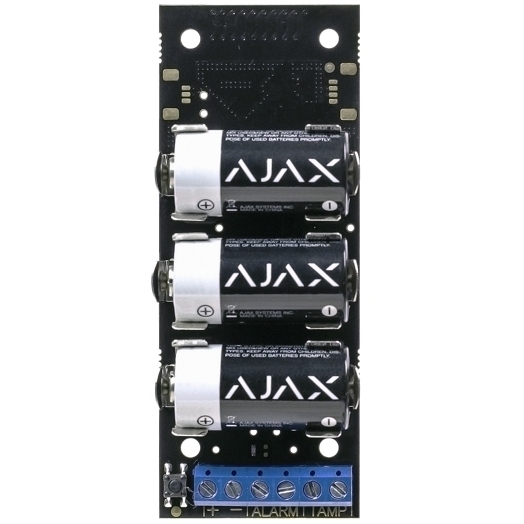

Transmitter Module for integrating a third-party wired detector or device into the Ajax security system. Transmitter allows you to connect the IR barrier, liquid level detector, gas leak detector, alarm button or any other device with the NC/NO contact type to Ajax.
Authentication to protect module against spoofing
Jamming detection and transmitted data encryption
Two-way secure communication between the module and the hub or range extender
Security Grade
Compliance
Makes third-party wired device part of the Ajax security system
Provides 3.3 V⎓ power supply for the wired device
Operates in temperatures from − 25°C to +50°С and humidity up to 75%
Features:
Principle of operation Transmitter allows you to connect a third-party wired detector or device to the Ajax security system. The module receives information about alarms and events via a wired connection. Having received an event, it transmits it to the hub via the Jeweller radio protocol, and the hub notifies the security company and system users.
Transmitter works with any detector or device with NC/NO contact type. The module supports 8 types of events for connected devices: intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage, and custom event. The type of event determines the alarm code sent to the security company monitoring station and the text of notification received by the user. This ensures an accurate response to the threat.
Installation and set up Scan the QR code in the Ajax app to add Transmitter to the security system. You can specify the type of connected wired device in the Ajax mobile or desktop apps. The compact module is easy to install inside the detector body or mounting box. And the built into Transmitter accelerometer will notify of sabotage attempts.
All Ajax detector or device with NC/NO contact type
Alarm input
1
Supported normal state of alarm input
Normally closed (NC)
Normally open (NO)
Supported third-party device type
Pulse
Bistable
Tamper input
1
Supported normal state of tamper input
Normally closed (NC)
Normally open (NO)
Power supply output for the wired detector or device
3.3 V⎓
Adjustable alarm types
Intrusion
Fire
Auxiliary alarm
Panic button
Gas alarm
Malfunction
Leakage
Custom
If the Custom type of the event is selected, notifications about it will not be sent to the security company's control panel and via SMS to system users.
Module power supply
3 x CR123A battery
pre-installed
Battery life
Up to 5 years
Jeweller radio technology
Communication range with hub or range extender
up to 1,600 m
in an open space
Two-way communication between devices
Radio frequency bands:
866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
depends on the sales region
Maximum effective radiated power (ERP)
up to 20 mW
Block encryption with a dynamic key
Device polling interval
12-300 s
Temperature sensor
Available
The temperature is displayed in the device states in the Ajax apps.
