Overview:

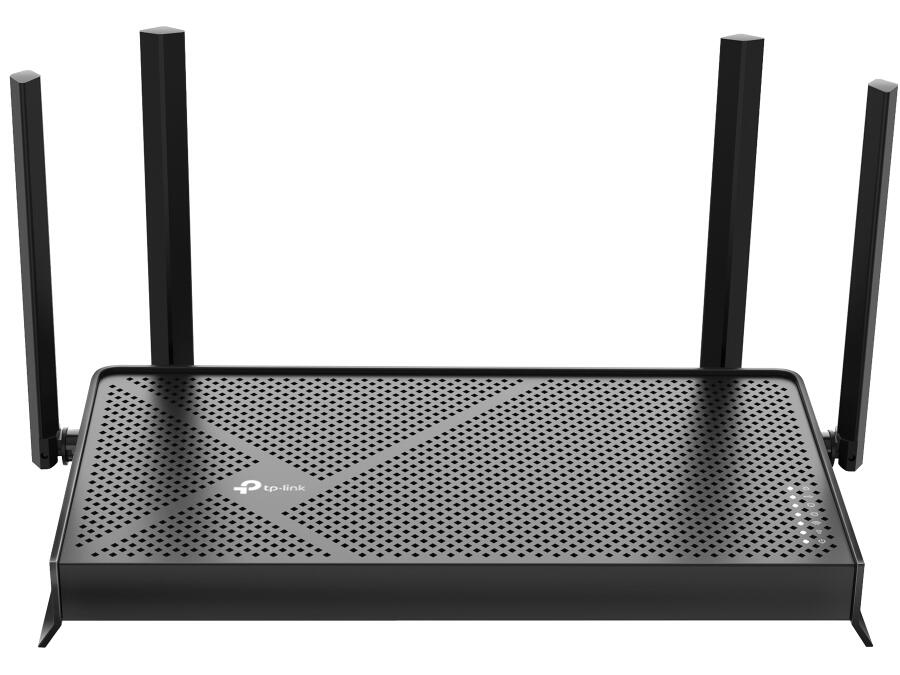

Archer BE230
BE3600 Dual-Band Wi-Fi 7 Router

• 3.6 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• 2x 2.5G Ports: 1x 2.5 Gbps WAN port, 1x 2.5 Gbps LAN port and 3x 1 Gbps LAN ports offer high-speed data transmissions.
• Maximized Coverage: 4x external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.*
• Easy Setup and Use: Network management has never been easier with the Tether app.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.**
• Great Compatibility: Supports all Wi-Fi generations and devices**and all internet providers.***

Features:

Next-Level Experience Realized with 3.6 Gbps WiFi 7
Powered by Wi-Fi 7 technology, Archer BE230 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

Multi-Link Operation
Higher speed, lower latency, more reliable.

• Multi-RUs Makes full use of resource for higher throughput
• 4K-QAM Packs 120% data for higher speeds.

2.5 Gigabit Wired Connections
1x 2.5 Gbps WAN port and 1x 2.5 Gbps LAN port make full use of the Gigabit speeds from your local ISP. Breakthrough the 1G bottleneck and drive your devices to peak performance.

USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.

Boosted WiFi Coverage Throughout Your Home
4x high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

Flexibly Create Whole Home Mesh WiFi
Archer BE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.

VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE230 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ARCHER-BE230
WIRELESS
WiFi Speeds	BE3600
	5 GHz: 2882 Mbps (802.11be)
	2.4 GHz: 688 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses
	4 x External Antennas
	Multiple antennas form a signal-boosting array to cover more directions and large areas
	Beamforming
	Concentrates wireless signal strength towards clients to expand WiFi range
	High-Power FEM
	Improves transmission power to strengthen signal coverage
WiFi Capacity	High
	Dual-Band
	Allocate devices to different bands for optimal performance
	2 x 2 MU-MIMO
	Simultaneously communicates with multiple MU-MIMO clients
	OFDMA
	Simultaneously communicates with multiple clients
	Airtime Fairness
	Improves network efficiency by limiting excessive occupation
	DFS
	Access an extra band to reduce congestion
	4 Streams
	Connect your devices to more bandwidth
Advanced Functions	Multi-Link Operation (MLO)
	4K-QAM
	Multi-RUs
	EasyMesh-Compatible
	Works with Alexa and Google Assistant
	IoT Network
Wireless Mode	Router Mode
	Access Point Mode
SECURITY
Network Security	SPI Firewall
	Access Control
	IP & MAC Binding
	Application Layer Gateway
	HomeShield Security
	Real-Time IoT Protection
	Malicious Site Blocker
	Intrusion Prevention System
	DDoS Attack Prevention
	Home Network Scanner
Guest Network	1 x 5 GHz Guest Network
	1 x 2.4 GHz Guest Network
VPN Server	OpenVPN Server
	PPTP VPN Server
	L2TP VPN Server
	WireGuard VPN Server
VPN Client	Open VPN Client
	PPTP VPN Client
	L2TP VPN Client
	WireGuard VPN Client
WiFi Encryption	WPA
	WPA2
	WPA3
	WPA/WPA2-Enterprise (802.1x)
HARDWARE
Ethernet Ports	1 x 2.5 Gbps WAN
	1 x 2.5 Gbps LAN
	3 x 1 Gbps LAN
USB Support	1 x USB 3.0
	Supported Partition Formats:
	NTFS, exFAT, HFS+, FAT32
	Supported Functions:
	FTP Server
	Media Server
	Samba Server
Buttons	Power On/Off Button
	Wi-Fi On/Off Button
	LED Button
	WPS Button
	Reset Button
Power	12 V ⎓ 2 A
SOFTWARE
Protocol	IPv4
	IPv6
Service Kit	HomeShield
EasyMesh	Compatible with EasyMesh
Parental Controls	HomeShield Parental Controls
	Custom Profiles
	Professional Content Filter Library
	Family Time
	Bedtime
	Off Time
	Time Rewards
	Family Online Time Ranking
	Pause the Internet
	Weekly and Monthly Reports
WAN Type	Dynamic IP
	Static IP
	PPPoE
	PPTP
	L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade
	TP-Link ID
	DDNS
NAT Forwarding	Port Forwarding
	Port Triggering
	DMZ
	UPnP
IPTV	IGMP Proxy
	IGMP Snooping
	Bridge
	Tag VLAN
DHCP	Address Reservation
	DHCP Client List
	Server
DDNS	TP-Link
	NO-IP
	DynDNS
Management	Tether App
	Webpage
OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
	Cable or DSL Modem (if needed)
	Subscription with an internet service provider (for internet access)
Certifications	CE, FCC, RoHS
Environment	Operating Temperature: 0°C~40°C (32°F ~104°F)
	Operating Humidity: 10%~90% non-condensing
