Overview:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Features:

AI Solutions
ASUS AI Solutions, including AI Networking II for real-time bandwidth optimization and AI Cooling II for thermal control, offer new levels of ultrafast connectivity, performance and efficient cooling.

AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

AI Cooling II
Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P WIFI is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight-layer PCB design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool connectors
Proprietary connectors augment the motherboard’s link to the power supply with 8 + 8 pin connectors that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.

Power Saving
The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Digi+ VRM control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits. For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance. For those looking to surpass stock DDR5 speeds, the PRIME X870-P WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

Four M.2 slots (up to 128 Gbps)
PRIME X870-P WIFI offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

Cooler by design
The PRIME X870-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 4
ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Empowering connections
The PRIME X870-P WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

WiFi 7
The next-gen WiFi 76 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

USB 40Gbps Type-C® ports
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Personalization
The PRIME X870-P WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen 2 RGB headers
Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

DIY friendly
The PRIME X870-P WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

Pre-Mounted I/O Shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.

SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking7 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications

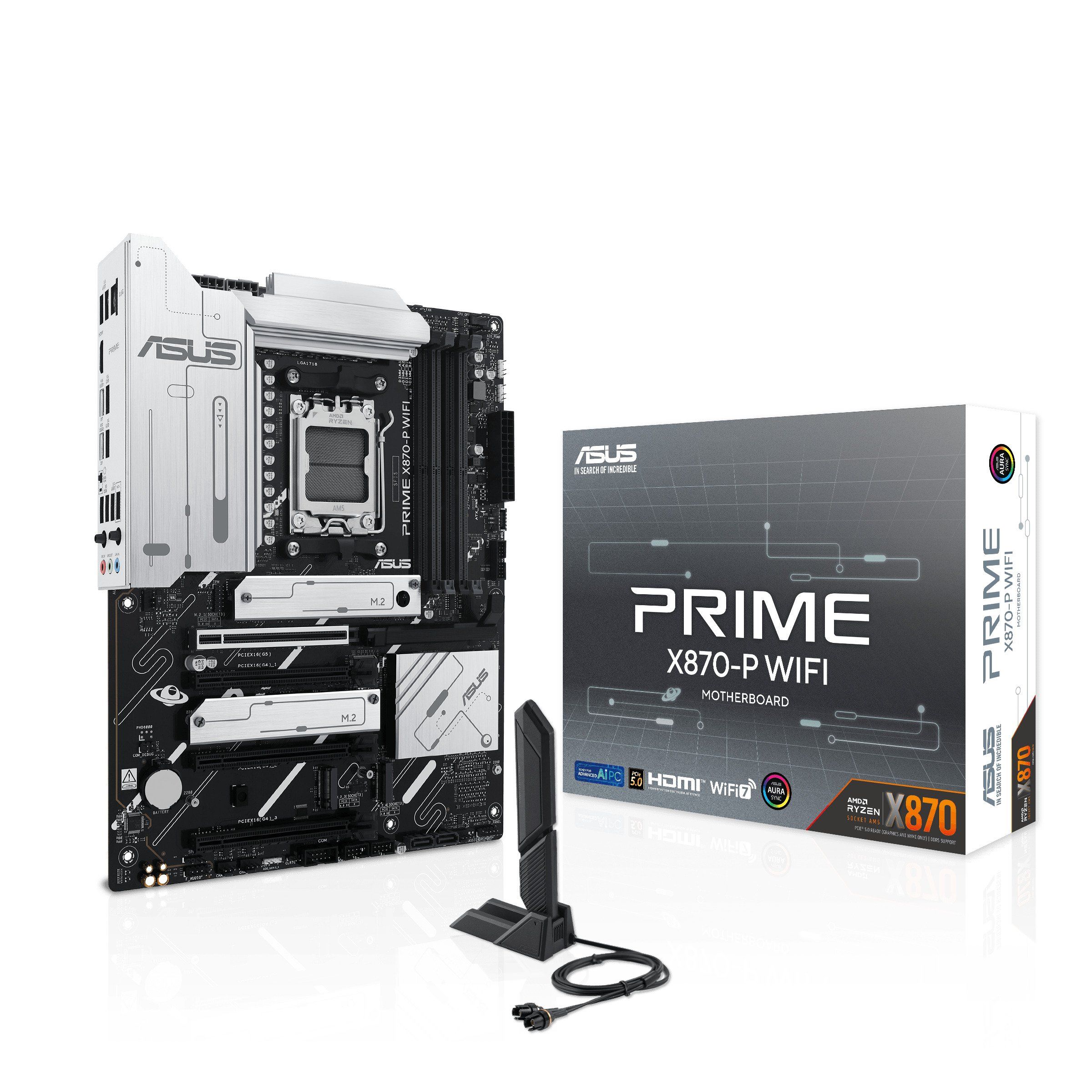

Product Code	ASUS PRIME X870-P WIFI
Model	PRIME X870-P WIFI
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD X870 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
	ECC and Non-ECC, Un-buffered DIMM
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO)
	ASUS Enhanced Memory Profile (AEMP)
	* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port
	2 x USB4 (40Gbps) ports support USB Type-C display outputs
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports 4K@60Hz as specified in HDMI 2.1.
	* Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
	* VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors
	1 x PCIe 5.0 x16 slot (supports x16 mode)
	AMD Ryzen 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
	AMD X870 Chipset
	3 x PCIe 4.0 x16 slots (support x1 mode)
	** Specifications vary by CPU types.
	* PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
	* PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
Storage	Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
	AMD Ryzen 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	AMD Ryzen 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	AMD X870 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)
	2 x SATA 6Gb/s ports
	* PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
	** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
	* M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
	AMD RAIDXpert2 Technology
	Ryzen 9000 Series Processors: RAID 0/1/5/10
	Ryzen8000 Series Processors: RAID 0/1
	Ryzen7000 Series Processors: RAID 0/1/10
	Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
	AMD Ryzen 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	AMD Ryzen 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	AMD X870 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)
	2 x SATA 6Gb/s ports
	* PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
	** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
	* M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
	AMD RAIDXpert2 Technology
	Ryzen 9000 Series Processors: RAID 0/1/5/10
	Ryzen 8000 Series Processors: RAID 0/1
	Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Realtek 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth v5.4
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	2 x USB4 (40Gbps) ports (2 x USB Type-C)
	1 x USB 10Gbps port (1 x Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 10Gbps connector (supports USB Type-C)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C)
	1 x USB 10Gbps port (1 x Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x HDMI port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage Related
	4 x M.2 slots (Key M)
	2 x SATA 6Gb/s ports
	USB
	1 x USB 10Gbps connector (supports USB Type-C)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1 pin)
	1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM (- Digital power design with DrMOS)
	- LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED Core
	- Q-Slot
	ASUS Thermal Solution
	- Flexible M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack button
	- BIOS FlashBack LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeSlot
	Aura Sync
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	TurboV Core
	ASUS CPU-Z
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x M.2 rubber package
	2 x Screw packages for M.2 SSD
	Documentation
	1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
