Features:

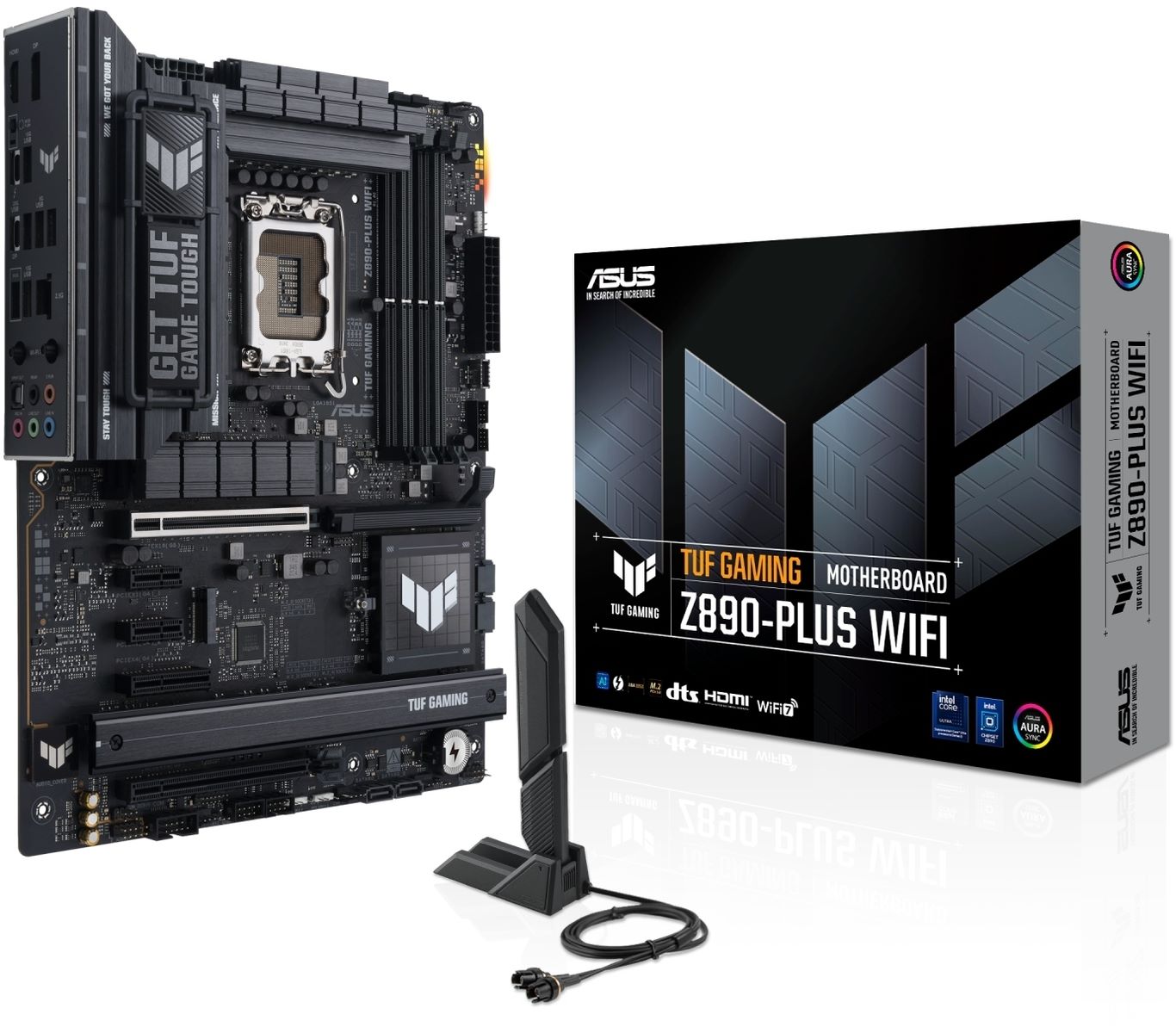

TUF GAMING Z890-PLUS WIFI
ASUS TUF GAMING Z890-PLUS WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

• 16+1+2+1 (80A), DrMOS Premium power stages with enlarged VRM heatsinks
• AI Intelligence AI Advisor, AI Cooling II & AI Networking II
• NPU Boost The BIOS feature overclocks the NPU with just one click
• 9066+ MT/s, AEMP III, DIMM Fit Effortlessly apply to unleash performance
• PCIe 5.0 for Graphics Card Supports next-gen graphics cards and is robust for handling data-heavy tasks
• Empowering Connectivity One Thunderbolt 4 & front USB 20Gbps Type-C
• DIY Friendly PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, BIOS Flashback Button
• Ultrafast Networking WiFi 7 with ASUS WiFi Q-Antenna
• Aura Sync Full RGB lighting control

Complete AI Solution
ASUS AI Solutions - including AI Advisor, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization - offer smart assistance, efficient cooling and new levels of ultrafast connectivity.

AI Advisor
An ASUS technical expert that's always available to answer your questions.
, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.

DDR5 DOMINANCE
For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO ) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability.
Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Cooler by Design

• Enlarged VRM Heatsinks
• Smart Fan Protect
• Enlarged M.2 Heatsinks
• 4-Pin PWM/DC Fan
• Superb PCH Heatsink
• Multi Temperature Source
• AIO Pump Header
• Water Pump+ Header

Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, Thunderbolt 4 and front USB 20Gbps Type-C connectors.

PCIe 5.0 for Graphics Card
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

Thunderbolt 4 Support
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Front USB 20Gbps Type-C
This motherboard features a USB 20Gbps Type-C front panel connector for speedy data transfers of up to 20Gbps.

PCIe Slot Q-Release
A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

M.2 Q-Release
The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ASUS TUF GAMING Z890-PLUS WIFI
Model	TUF GAMING Z890-PLUS WIFI
CPU	Support Intel Core Ultra Processors (Series 2), LGA1851
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
	** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z890 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5
	Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
	Dual channel memory architecture
	DIMM Fit
	Supports Intel Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile III(AEMPIII)
	** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort
	1 x HDMI port
	1 x Intel Thunderbolt 4 port (USB Type-C ) supports DisplayPort and Thunderbolt video outputs
	1 x USB 20Gbps port (USB Type-C ) supports DisplayPort video output
	* Graphics specifications may vary between CPU types.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	* Supports 4K@60Hz as specified in HDMI 2.1.
	**In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
	*** In DP alt mode, supports up to UHBR20.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	*** VGA resolution support depends on processors' or graphic cards' resolution.
	****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel Core Ultra Processors(Series 2)
	1 x PCIe 5.0 x16 slot
	Intel Z890 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x4 slot
	2 x PCIe 4.0 x1 slots
Storage	Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
	Intel Core Ultra Processors(Series 2)
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	Intel Z890 Chipset
	M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	* Intel Rapid Storage Technology supports PCIe RAID 0 / 1 / 5 / 10, SATA RAID 0 / 1 / 5 / 10, M.2 slot from CPU only support RAID 0/1/5.
Ethernet	1 x Intel 2.5Gb Ethernet
	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth v5.4
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports)
	1 x Thunderbolt 4 port (1 x USB Type-C )
	1 x USB 20Gbps port (1 x USB Type-C )
	3 x USB 10Gbps ports (3 x Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 20Gbps connector (supports USB Type-C )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	USB Type-C power delivery output: max. 5V/3A
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports	1 x Thunderbolt 4 USB Type-C port
	1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
	3 x USB 10Gbps ports (3 x Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi module
	1 x Intel 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connector
	Storage Related
	4 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector (supports USB Type-C )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front System Panel header
	1 x Thunderbolt (USB4 ) header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- M.2 Q-Release
	- M.2 Q-Slide
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack button
	- BIOS FlashBack LED
	- CPU Socket lever protector
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	TurboV Core
	TUF GAMING CPU-Z
	DTS Audio Processing
	Adobe Creative Cloud (Free Trial)
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
	NPU Boost
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x M.2 Q-Slide package
	2 x M.2 rubber packages
	1 x Screw package for M.2 SSD
	1 x TUF GAMING sticker
	1 x TUF GAMING removable nameplate
	Documentation
	1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX Form Factor
