Features:

• Needed to connect a USB Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
• Eliminates the need for thicker, heavier KVM cables
• Compact, lightweight design
• Plug and Play; no software required
• No power supply required
• Allows a Server/CPU to be located up to 100-ft. (30.5 m) away from the KVM switch
• To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule Purchases

System Requirements:

• Server or CPU with a HD15 port and a USB port
• A B070 / B072-Series NetCommander Cat5 KVM Switch
• Cat5e/6 cable; up to 100ft
• To convert DisplayPort or HDMI computers to VGA, use adapters P134-06N-VGA-V2 or P131-06N

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications

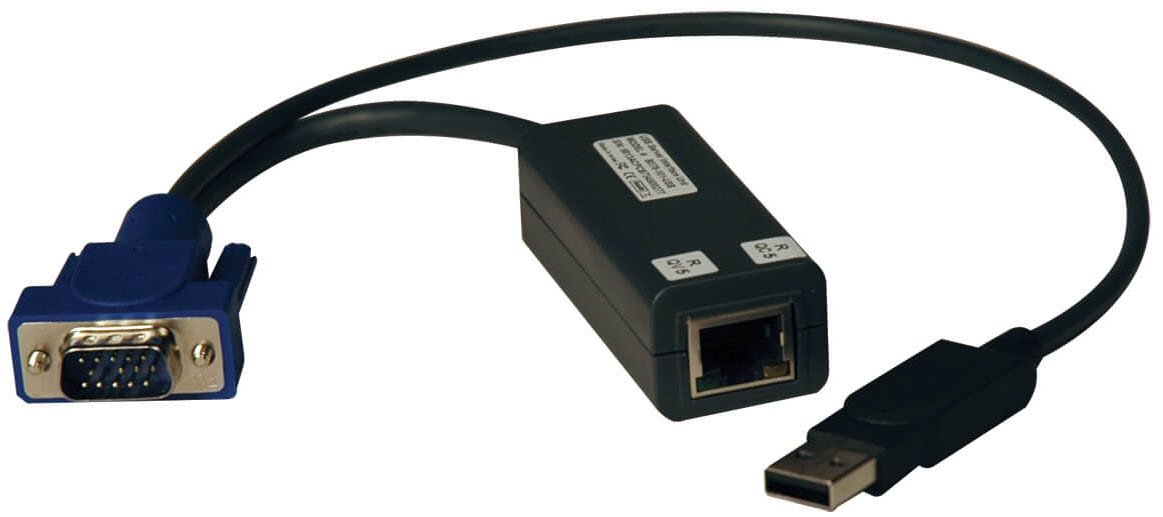

Product Code	B078-101-USB-1
OVERVIEW
UPC Code	37332178688
Accessory Type	Server Interface Unit
Technology	Cat5/5e; VGA/SVGA
Accessory Class	KVM Switch Accessories
INPUT
Bus Powered	Yes
Product Length (ft.)	1.3
CONNECTIONS
Side A - Connector 1	HD15 (MALE)
Side A - Connector 2	USB A (MALE)
Side B - Connector 1	RJ45 (FEMALE)
Computer Keyboard and Mouse Interface	USB
Computer Monitor Interface	VGA
USER INTERFACE, ALERTS & CONTROLS
LED Indicators	GREEN (RECEIVING POWER); ORANGE (SELECTED AS ACTIVE PORT)
PHYSICAL
Color	Gray
Material of Construction	ABS
Shipping Dimensions (hwd / cm)	3.81 x 12.45 x 14.73
Shipping Weight (kg)	0.09
Unit Weight (kg)	0.08
FEATURES & SPECIFICATIONS
Driver Required	No
Recommended Category Cable	N105 - SERIES CAT5E SHIELDED CABLES
STANDARDS & COMPLIANCE
Product Certifications	EN 55022; EN 55024
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
