DS-1H18S/E Hikvision DS-1H18S/E Video Balun

DS-1H18S/E

Click to view larger image

R 38.00

inc. VAT

In Stock

Add To Cart

Rate

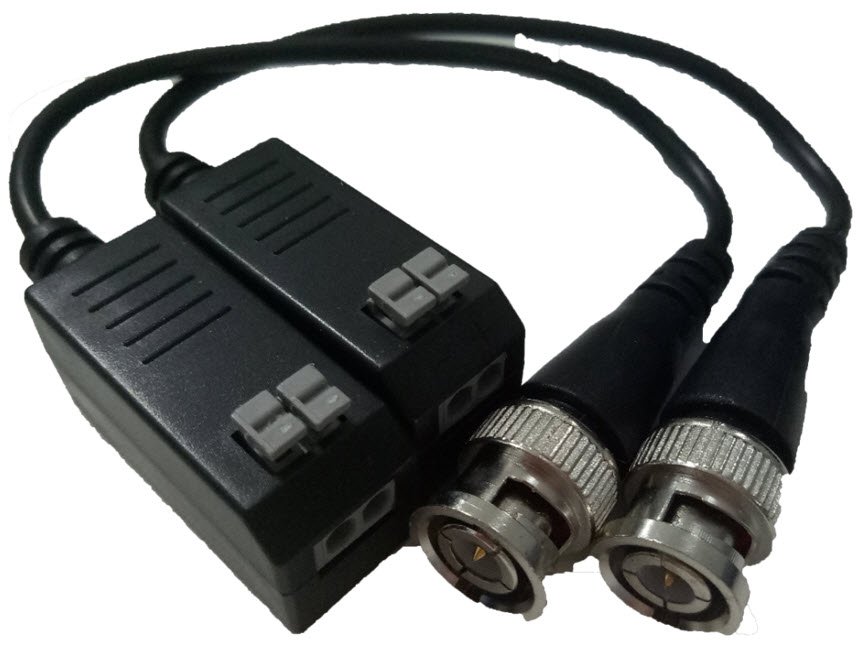

Hikvision DS-1H18S/E Video Balun

Images are for illustrative purposes and actual product may differ.

DS-1H18S/E

Camera enclosures & accessories for security

Hikvision

DS-1H18S/E information and overview

Hikvision DS-1H18S/E TVI convert to UTP transmission with extend cable, passive

Great value! This product is available for only R 38.

Specifications & more information about DS-1H18S/E, Camera enclosures & accessories for security manufactured by Hikvision

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Features:

Transmits TVI signal via UTP cable
No power required, and only simplified project wiring needed
Plug and play, real-time transmission of high quality, stable CCTV HD video signal
Compatible with HDTVI/HDCVI/AHD
Transmission distance (over Cat 5E/6): HDTVI/HDCVI/AHD 720P/300m (max)
1080p/250m (max)
3 MP/4 MP/5 MP: 200m (max)

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-1H18S/E
Transmission Signal	1 channel
Transmission Distance	HDTVI/HDCVI/AHD 720P/300m(max); 1080P/250m(max); 3MP/4MP/5MP:200m(max)
Category Type	UTP CAT 5E/6
Coaxial Video Connector	BNC-M
Twisted-pair Video Connector	Push-terminal
Compatible Format	HDTVI/HDCVI/AHD
Resolution	720P/1080P/3MP/4MP/5MP
Ant-interference	&#-226;60db
ESD	1a contact discharge electricity level3; 1b air discharge electricity level3; Per:IEC61000-4-2
Coaxial Cable Connector	2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector	2KV(different-code), 2KV(common-code), Per:IEC61000-4-5
BNC Male	75 ohms
UTP Cable	100 ohms
Shell	ABS
Color	Black
Dimensions(LxWxH)	39x19x17mm (1.535x0.748x0.669 inch)
Weight	38.6g
MTBF	&#-226;10000 h
Operating Temperature	-10~55°C
Storage Temperature	-20~70°C
Humidity	0-95%(non-condensing)
