Overview

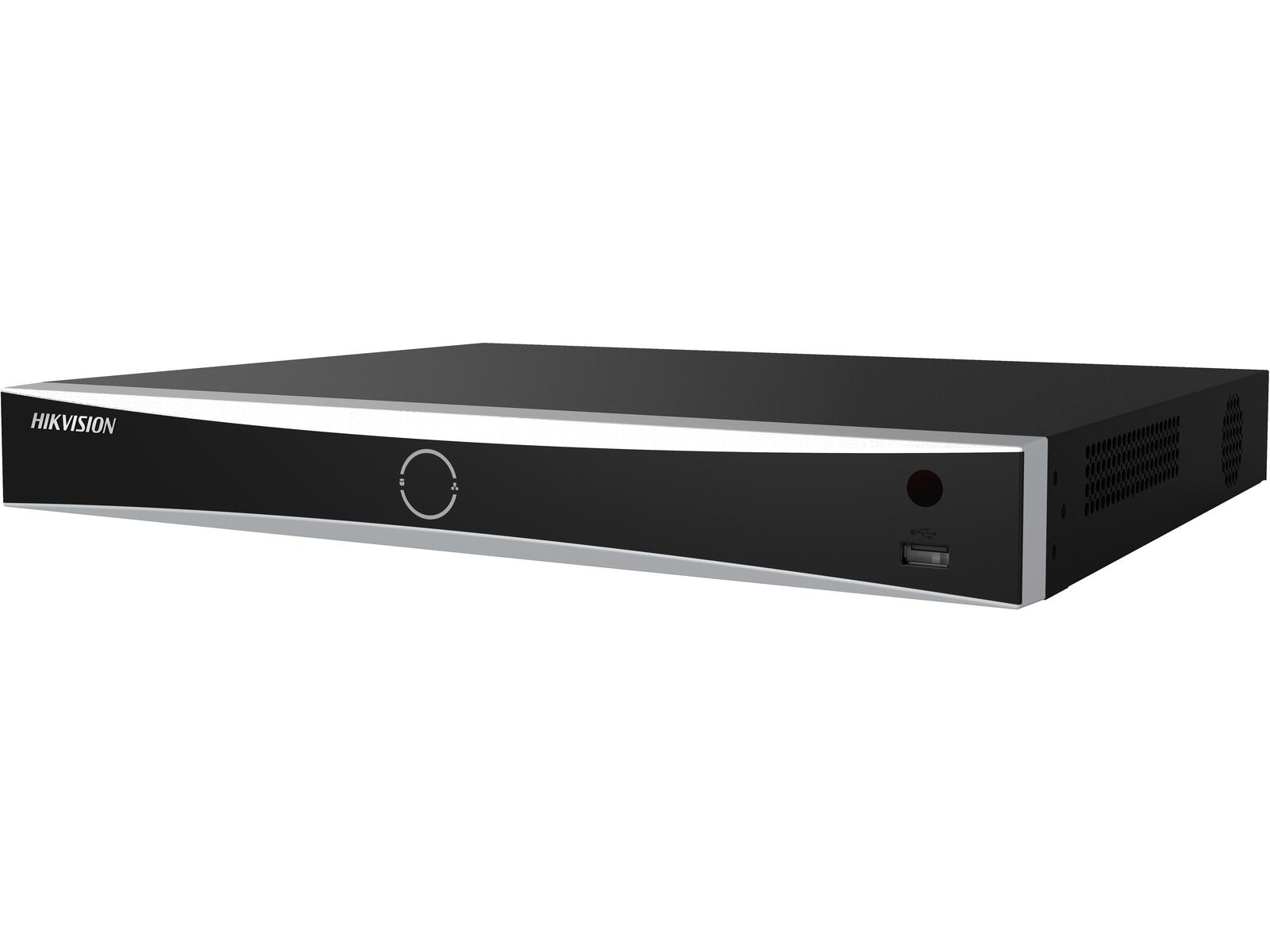

Hikvision DS-7632NXI-K2 32 Channel AcuSense 4K NVR
The Hikvision DS-7632NXI-K2 is a professional 32 channel 1U network video recorder designed for reliable IP camera surveillance in homes, businesses, offices, retail environments and larger security installations. With 4K video support, AcuSense technology, advanced video analytics and up to 32 IP camera inputs, it provides a practical solution for managing and monitoring a multi-camera security system from a central NVR.

Description

The DS-7632NXI-K2 combines high-capacity network video recording with Hikvision AcuSense technology to help improve security monitoring while reducing the amount of manual work required from operators. AcuSense helps identify relevant security events more efficiently, making the recorder well suited to installations where accurate detection and efficient monitoring are important.

The NVR supports H.265+, H.265, H.264+ and H.264 video formats, helping optimise storage and network bandwidth while maintaining suitable video quality. It can decode multiple channels simultaneously and supports up to 16 channel synchronous playback, making it easier to review footage from several cameras at the same time.

Features

32 Channel IP Camera Recording
With support for up to 32 IP video inputs, this Hikvision NVR can manage a substantial surveillance installation from a single recording platform. Its 256 Mbps incoming bandwidth provides the capacity required for high-resolution network camera streams, including 4K cameras.

The recorder also supports Hikvision security technologies such as facial recognition and perimeter protection, helping provide more intelligent surveillance capabilities when compatible cameras and functions are used.

4K Video Output and Playback
The DS-7632NXI-K2 provides a 4K HDMI output for connecting a high-resolution display, while the VGA output supports up to 1920 x 1080 at 60 Hz. HDMI and VGA outputs can operate independently, allowing greater flexibility when connecting monitoring displays.

Playback support includes up to 16 channels simultaneously, which is useful when investigating incidents across multiple cameras.

Storage and Network Connectivity
Two SATA interfaces are available for installing surveillance hard drives, with support for up to 16 TB per HDD. This provides substantial storage capacity for recorded security footage, depending on the selected hard drives, recording resolution, frame rate and retention requirements.

Network connectivity is provided through a Gigabit RJ-45 Ethernet interface, offering 10/100/1000 Mbps self-adaptive operation for connection to the surveillance network.

Key technical details include:

• Up to 32 IP camera inputs
• Up to 256 Mbps incoming bandwidth
• Up to 16 channel synchronous playback
• HDMI output up to 4K resolution at 30 Hz
• VGA output up to 1920 x 1080 at 60 Hz
• 2 x SATA interfaces
• Up to 16 TB supported per HDD
• 1 x RJ-45 10/100/1000 Mbps Ethernet interface
• H.265+, H.265, H.264+ and H.264 video decoding
• 1 x USB 2.0 interface
• 1 x USB 2.0 interface
• 4 alarm inputs and 1 alarm output
• 1 channel RCA audio output
• 1 channel two-way audio

Intelligent Surveillance for Modern Security Systems
Hikvision AcuSense technology is designed to improve the efficiency of surveillance systems by helping reduce unnecessary alerts and manual monitoring. Combined with functions such as facial recognition, perimeter protection and motion detection, the NVR is suitable for security installations where intelligent event detection is an important consideration.

The combination of 4K recording support, large storage capacity, Gigabit networking and multiple camera inputs makes the DS-7632NXI-K2 a suitable central recording solution for medium to large IP surveillance systems.

Hikvision DS-7632NXI-K2 Part Number / SKU
The product part number / SKU is DS-7632NXI-K2 . This 32 channel AcuSense 4K NVR is designed for installations requiring centralised IP camera recording, high-resolution monitoring and intelligent security functions.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-7632NXI-K2
Intelligent Analytics
AI by Device	Facial recognition, perimeter protection, motion detection 2.0
AI by Camera	Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Perimeter Protection
By Device	2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera	All channels
Target Recognition
Facial Detection and Analytics	Face picture comparison, human face capture, face picture search
Face Picture Library	Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance	1-ch, 8 MP
Face Picture Comparison	4-ch
Motion Detection 2.0
By Device	All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera	All channels
Video and Audio
IP Video Input	32-ch
Incoming Bandwidth	256 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output	1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
VGA Output	1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Video Output Mode	HDMI/VGA independent output
CVBS Output	N/A
Audio Output	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio	1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding Format	H.265/H.265+/H.264+/H.264
Recording Resolution	12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback	16-ch
Decoding Capability	AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
	AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
	Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/7-ch@1080p (30 fps)
	Smooth Playback (HC) ON & AI OFF: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection	128
API	ONVIF (profile S/G) , SDK , ISAPI
Compatible Browser	IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP , HTTP, HTTPS
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 16 TB capacity for each HDD
USB Interface	Front panel: 1 x USB 2.0 , Rear panel: 1 x USB 2.0
Alarm In/Out	4/1
General
GUI Language	English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply	12 VDC, 3.3 A
Consumption	≤ 15 W (without HDD)
Working Temperature	-10 degreesC to 55 degreesC (14 degreesF to 131 degreesF)
Working Humidity	10% to 90%
Dimension (W x D x H)	385 mm x 315 mm x 52 mm (15.2" x 12.4" x 2.0")
	≤ 1 kg (without HDD, 2.2 lb.)
Certification
FCC	Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification	CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
