DS-D6043UN-DP

Overview

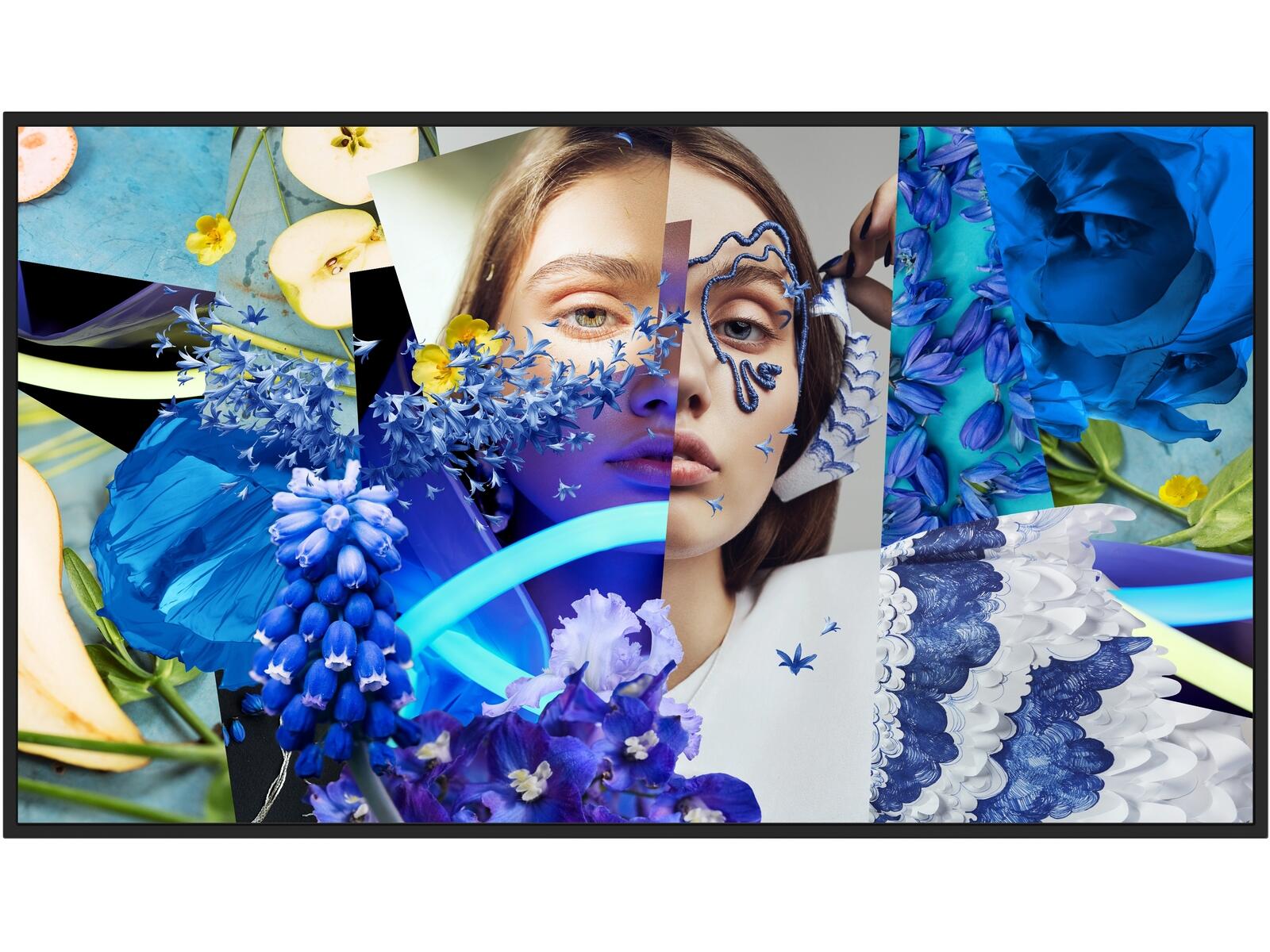

43 Inch 4K Digital Signage Display for Professional Environments
The DS-D6043UN-DP 43 inch slim digital signage display is designed for high-impact visual communication in commercial and corporate environments. Built with a sleek, modern frame and an all-in-one design, it delivers ultra high definition 3840 x 2160 resolution with consistent image clarity across a wide 178 degree viewing angle. The industrial grade A+ panel enhances color accuracy and image stability, while the integrated image processing engine ensures vibrant, refined visuals for both static and dynamic content.

Description

The Hikvision DS-D6043UN-DP digital signage display combines sharp 4K resolution, high brightness output, and intelligent content management capabilities in a slim, durable form factor. Running on Android 13, it provides a smooth and flexible platform for multimedia playback, scheduling, and remote management. With multiple connectivity options, built-in speakers, and reliable 24 hour operation, this display is well suited for retail, corporate, hospitality, and public information applications where clear messaging and consistent performance are essential.

Features

Advanced Visual Performance and Clarity
Engineered for professional display use, this 43 inch panel delivers crisp visuals supported by a 500 nits brightness level and a 4000 to 1 contrast ratio. The 10 bit color depth and wide 85 percent NTSC color gamut ensure accurate color reproduction, making it ideal for advertising, presentations, and branded content. The anti glare haze treatment improves visibility in bright environments, while the 8 ms response time maintains smooth playback for video content.

Flexible Content Playback and Scheduling
This digital signage solution supports a wide variety of media formats, allowing businesses to display images, videos, audio, scrolling text, PDFs, webpages, and live video streams. Content scheduling is highly adaptable, enabling playback by day, week, loop, or custom configurations. Multiple zones can be defined on screen, allowing different content types to run simultaneously for more engaging displays.

Centralized Control and Smart Management
The DS-D6043UN-DP enables centralized control across one or multiple displays, making it suitable for scalable deployments. Users can remotely manage screen operations such as timed power control, brightness and volume adjustment, and real time content updates. The system also supports USB based local updates for added convenience.

Key management capabilities include:

• Remote monitoring and screen preview functionality
• Scheduled startup and shutdown automation
• Multi level user access with customizable permissions
• Secure content publishing with multi stage verification and encryption

System Performance and Built-In Platform
Powered by a quad core Cortex A55 processor, this display runs on Android 13 for efficient performance and smooth multitasking. With 4 GB of memory and 32 GB of internal storage, it provides sufficient capacity for storing and running multimedia content without the need for external devices.

Supported formats include:

• Video codecs such as H.265, H.264, VP9, AV1, MPEG formats
• Audio formats including AAC, FLAC, MP3, OGG
• Image formats such as JPG, PNG, BMP

Connectivity and Integration Options
A comprehensive set of interfaces ensures seamless integration into various setups. Whether used as a standalone display or part of a larger network, it supports both wired and wireless connectivity.

Important connections:

• 3 HDMI inputs and 1 DisplayPort input
• RJ45 Ethernet port and dual band Wi Fi support
• Bluetooth 5.0 for wireless peripherals
• USB 2.0 and USB 3.0 ports for media playback
• RS232 in and out for control system integration
• Line out and dual built in speakers for audio output

Installation and Physical Design
The slim profile and lightweight construction allow for straightforward wall mounting in both landscape and portrait orientations. The clean plastic enclosure complements modern interiors while maintaining durability for continuous operation.

Physical details:

• Screen size: 43 inch
• Resolution: 3840 x 2160
• Dimensions without mount: 967.4 x 555.9 x 40 mm
• Weight: 9.1 kg

Operational Reliability and Environmental Range
Built for continuous use, the DS-D6043UN-DP supports 7 day, 24 hour operation, making it suitable for demanding commercial environments. It operates reliably across a wide temperature and humidity range, ensuring stable performance in different conditions.

Product Identification and Reference
For ordering and system integration, the part number is DS-D6043UN-DP. This identifier should be used when sourcing or specifying the display in projects.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-D6043UN-DP
Product Model
Product Model	DS-D6043UN-DP
Display
Screen Size	43 inch
Color Temperature	10000K
Resolution	3840 x 2160
Active Display Area	941.184 (H) mm x 529.416 (V) mm
Pixel Pitch	0.2451 (H) mm x 0.2451 (V) mm
Backlight	E-LED
Viewing Angle	178degrees(H)/178degrees(V)
Brightness	500 cd/m²
Contrast Ratio	4000:1
Color Depth	10 bit (8 bit + FRC)
Response Time	8 ms
Color Gamut	85% NTSC
Reliability	7 x 24h
Refresh Rate	60 Hz
Haze	25%
Built-in System
Operation System	Android 13
Processor	Cortex-A55, 4-core, main frequency 1.92GHz
Memory	4 GB
Built-in Storage	32 GB EMMC
Video Format	AV1, H.265, H.264/AVC, MVC, VP9, AVS2, MPEG4, MPEG2, MPEG1, VP8, MJPEG, H263
Audio Format	MPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC
Interface
Video & Audio Input	HDMI x 3, DP x 1
Video & Audio Output	LINE OUT x 1, speaker (6Ω 10 W) x 2
Network Interface	RJ45 x 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) x 1, RS232 in x 1, RS232 out x 1
Data Transmission Interface	USB 2.0 x 1, USB 3.0 x 1, BT 5.0 x 1
Power
Input Voltage	100 to 240 VAC, 50/60 Hz
Standby Consumption	≤ 0.5 W
Power Consumption	60W(typ), 120W(max)
Working Environment
Working Temperature	0 degreesC to 40 degreesC (32 degreesF to 104 degreesF)
Working Humidity	10% to 80% RH (Condensation)
Storage Temperature	-20 degreesC to 60 degreesC (-4 degreesF to 140 degreesF)
Storage Humidity	10% to 90% RH (Condensation)
General
Material Type	DAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG
Mounting Type	Wall mounting (horizontally or vertically)
Product Dimensions (W x H x D)	967.4mm x 555.9mm x 40 mm (without wall-mounted backboard)
	967.4mm x 555.9mm x 70 mm (with wall-mounted backboard)
Package Dimensions (W x H x D)	1075 mm x 652 mm x 144 mm
Net Weight	9.1 kg
Gross Weight	12.5 kg
Packing List	Digital signage x 1, wall-mounted backboard (including package of mounting bolts ) x 1, power cord for europe x 1, RS232 cable x1 , remote control x 1, user manual x 1 , quick start guide x 1, Regulatory Compliance and Safety Information x1 ,logo stickers x 1, energy efficiency label x 1
