DS-JCD612

Overview:

The JCD612 was designed specifically for iPad Pro® with USB-C® connection, allowing you to connect to an additional 4K60 display via HDMI™. Even with a smaller size, it gives you plenty of ports with a USB™ 3.0 port, SD™ and microSD™ car reader, and easy connection to the 3.5 mm audio jack for microphone and speaker. This travel dock also supports Power Delivery 3.0, providing up to 100W pass-through charging for your host device while powering up the dock along with the attached peripherals.

The JCD612 fits flush on the corner of the iPad Pro® with or without a case thanks to the included removable pads with soft rubber. It also features a 90° angled host connector for easy connection. Without the pads, you got yourself a mini USB-C® dock that fits into any workspace.

Features:

• Designed to fit flush on the corner of the iPad Pro® 11" or 12.9" with or without a case
• Easily add a HDMI™ video output, supporting resolution up to 4K at 60 Hz
• Power and charge your laptop with up to 100W Power Delivery (3.0) pass-through charging and power your connected peripherals when it’s used with a USB-C® power adapter
• Right-angled host connector for your comfort

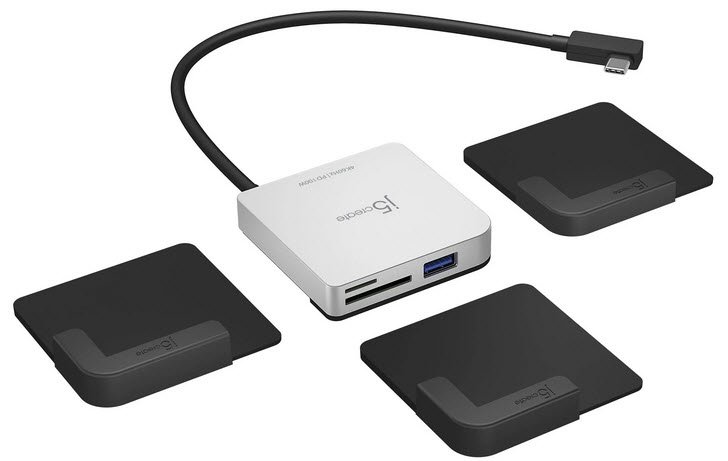

• Includes 3 removable pads with soft rubber for secure and flexible mounting options
• SuperSpeed USB™ ports: 1 x USB-C® and 1 x USB™ Type-A with up to 5 Gbps data transfer speed
• Connect your headphone/speaker through the 3.5mm audio jack
• Direct access to SD™ & microSD™ memory cards for data storage and transfer
• Thunderbolt 3™ compatible

USB-C™ Power Delivery 100W Data 5 Gbps
1-port USB-C™ 3.1 supports 5 Gbps data transfer with PD 3.0 pass-through charging up to 100W

4K 60 Hz HDMI™ Video Output
Supports: iPad Pro® 11, iPad Pro® 12.9" (3rd & 4th Generation), MacBook Pro® (15" 2017 & later), iMac® (Retina 5K 27" 2017 & later), iMac® (Retina 4K 21.5" 2017 & later), iMac Pro® 2018

SuperSpeed USB™ 5 Gbps Port
1-port USB™ Type-A 3.1 supports 5 Gbps data transfer

SD™ / microSD™ UHS-I 104 MB/s
SD™/microSD™ card reader SD™ 3.0 UHS-I 104 MB/s

Combo Audio Mic / Speaker
If the HDMI™ and 3.5 mm audio jack are connected simultaneously, the 3.5 mm audio jack takes priority.

Designed for iPad Pro®
3 Removable pads included, fits perfectly with iPad Pro® 11 inch and 12.9 inch with or without a case

Soft rubber to protect your device
Fits flush on the corner of the iPad Pro®

Provides extra connectivity for your USB-C™ Apple® laptop
This pocket-sized multi-adapter allows you to add an additional USB™ 2.0/3.1 computer peripheral, HDMI™ monitor, SD™ card reader, and a 3.5 mm combo audio jack through your computer's USB-C™ port.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-JCD612
Hardware
Audio Supported	Yes
Host Connector	1 - Usb-C Male
Network Interface	N/a
Ports	1 - 4k Hdmi
	1 - Usb-c 3.1 With Power Delivery 3.0 & Data Transfer
	1 - Usb 3.1 Type-a
	1 - Sd & Microsd Memory Card Reader/writer
	1 - 3.5 Mm Combo Audio Jack
Power Source	Bus-powered
Video Output	1 - Hdmi Female
Performance
Audio Channel	2.1 Via Hdmi / 3.5 Mm Aux
Compatible Networks	N/a
Displays Supported	1
Max Data Transfer Rate	5 Gbps
Max Display Refresh Rate	60 Hz
Max Display Resolution	3840 X 2160
Power
Input Current	5a
Input Voltage	20v
Output Current	5a
Output Voltage	20v
Power Consumption	≤450mA
Power delivery	Up to 100W via USB-C
Physical Specifications
Cable Length	8.3 in (211 mm)
Color	Silver, Black
Enclosure Type	Aluminum
Operating Humidity	< 85% non-condensing
Operating Temperature	32 to 118°F (0 to 48°C)
Product Depth	0.56 in (14.2 mm)
Product Height	5.33 in (135 mm)
Product Weight	3.17 oz (90g)
Product Width	2 in (50.8 mm)
Storage Humidity	< 85% non-condensing
Storage Temperature	14 to 149°F (-10 to 65°C)
