Overview:

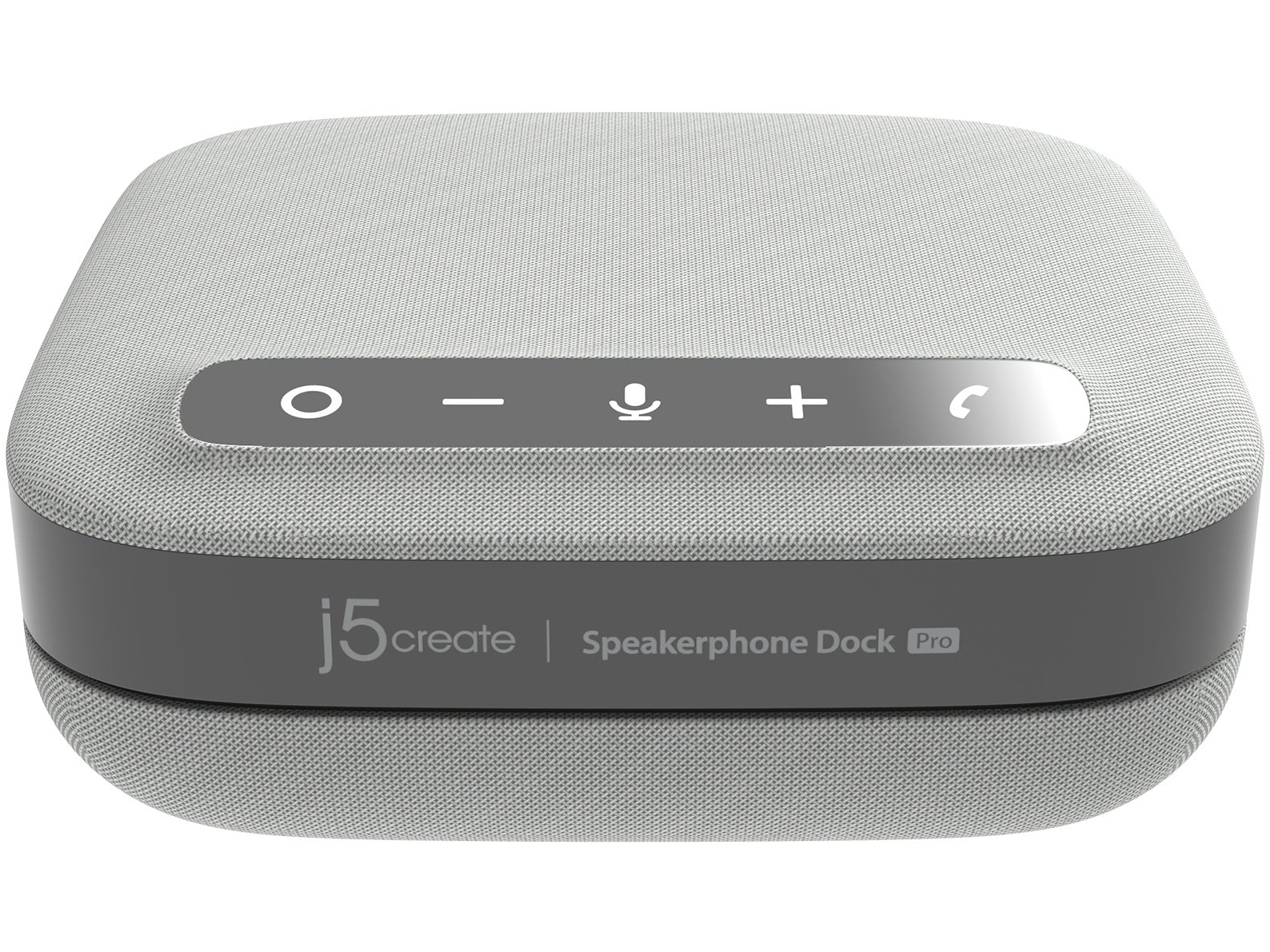

USB-C Dual 4K Speakerphone Dock Pro - Compatible with Windows 11, macOS, Chrome OS and other operating systems with standard UAC drivers
Model:JCDS337

The USB-C Dual 4K Speakerphone Dock Pro that turns your laptop into a full workstation and conferencing device. Includes two 4K HDMI outputs and one Type-C Power In port that supports up to 100W Power Delivery for charging laptops with a Type-C power adapter. Has two USB Type-A 10Gbps ports, and one USB-C 10Gbps port for connecting a variety of USB devices. The docking station is also equipped with an RJ45 Gigabit Ethernet port for high-speed network connectivity.

The speaker & microphone function provides crystal-clear audio for conference calls. Four omnidirectional microphones are included to pick up voices from around the conference table and uses Acoustic Echo Cancellation to eliminate echo and unwanted background noise. The built-in buttons make it simple to initiate calls, hang up and mute/unmute and adjust the volume. The speakerphone dock is small and lightweight for easy placement and transportation. Its plug-and-play and ready to use with your favorite video conferencing apps. All docking and speakerphone functions are combined into one compact docking station, so you will have all the connections you need to stay productive!

Features:

• Docking station with meeting controls and speakerphone
• Built-in 4 microphones array which deliver natural vocal sound with reduced background noise
• Support MST dual 4K display
• * macOS doesnt support MST, will only support mirroring two monitors on Mac devices
• Bluetooth 5.2 or USB plug-and-play connection
• High-quality, crystal-clear audio
• Digital signal processing technologies:
• Acoustic Echo Cancellation (AEC) reduces background noise and blocks the microphone from receiving sound from your own speakers
• Automatic Noise Reduction (ANR) reduces background noise
• Automatic Gain Control (AGC) built into the microphone to ensure conference audio quality
• Compatible with video conferencing apps: Amazon Chime, BlueJeans, Cisco, Facebook, Messenger, Google Meet, GoToMeeting, Microsoft Teams, Skype, Skype for business, Slack, Zoom, etc.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-JCDS337
Hardware
Audio Supported	Yes
Controls
Touch Key	- Volume Up
	- Volume Down
	- Microphone Mute / Unmute
	- Answer call / Hang Up
	- Bluetooth / USB mode switch
Host Connector	USB-C Female
Network Interface	RJ45 (Gigabit Ethernet)
Ports	2 x HDMI 4K@60Hz HDR
	2 x USB Type-A 3.2 Gen 2 (10Gbps)
	1 x USB-C 3.2 Gen 2 (10Gbps)
	1 x RJ45 Gigabit Ethernet
	1 x USB-C PD 100W
Power Source	Bus-powered or Self-powered
Speaker - Mic	4 x mic array
	1 x 5W speaker
Video Output	2 - 4K HDMI Female
Performance
Audio Channel	2.0 via HDMI
Audio Microphone	- Frequency: 100 Hz - 8 kHz
	- Sampling rate: 16KHz
Audio Speaker	- Frequency: 150 Hz - 20 kHz
	- Max Output Level: 80 dB SPL @ 1 Meter
	- Neodymium magnet
	- Sampling rate: 16bit
Compatible Networks	10/100/1000 Base-T, auto-negotiating
Displays Supported	2 (4K HDMI ) - Windows (MST)
Max Data Transfer Rate	10Gbps
Max Display Resolution	Single Display:
	- 3840 x 2160 @ 60 Hz
	- 2560 x 1440 @ 144 Hz
	- 1920 x 1080@ 144 Hz
	Dual Display:
	- 3840 x 2160 @ 60 Hz + 3840 x 2160 @ 60 Hz
Microphone	Built-in 4 microphones array
	*Audio pickup radius of 400cm / 13 ft
Speakerphone	Built-in 5W speaker with bass diaphragm
Voice Processing	- Acoustic Echo Cancellation (AEC)
	- Automatic Gain Control (AGC)
	- Automatic Noise Reduction (ANR)
Power
Input Current	5A
Input Voltage	20V
Output Current	4.25A
Output Voltage	20V
Power Consumption	≤ 300 mA
Power Delivery	100W
Physical Specifications
Cable Length	39.37 in. (100 cm)
Color	Dark Grey & White
Enclosure Type	PC+ABS
Operating Humidity	< 85% non-condensing
Operating Temperature	32 to 118°F (0 to 48°C)
Product Depth	5.11 in. (130 mm)
Product Height	1.88 in. (47.8 mm)
Product Weight	0.83 lbs. (377 g)
Product Width	5.11 in. (130 mm)
Storage Humidity	< 85% non-condensing
Storage Temperature	14 to 149°F (-10 to 65°C)
Package Contents
Package Contents	1 - JCDS337 USB-C Dual 4K Speakerphone Dock Pro
	1 - USB-C cable (Length: 100 cm / 3.3 ft.)
	1 - Quick Installation Guide (QIG)
