Overview Summary

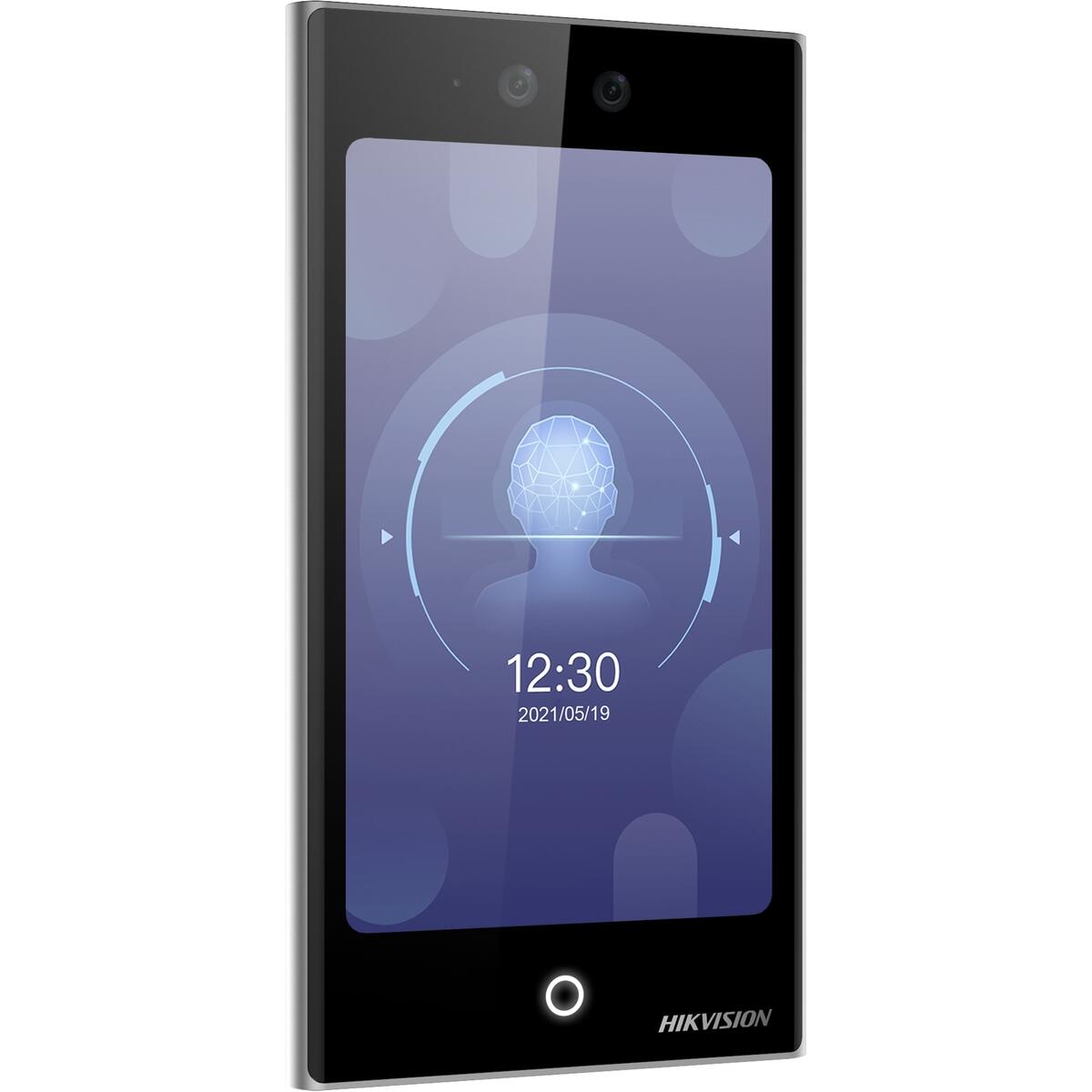

The Hikvision DS-K1T673DWX-E1 is a professional face recognition terminal designed for secure and efficient access control. It combines a 7-inch capacitive touchscreen, 2MP wide-angle lens, card authentication and PoE support in a compact terminal suitable for commercial and professional installations in South Africa.
With support for up to 10,000 faces, 50,000 cards and 150,000 events, this terminal is well suited to busy access points requiring reliable user authentication and event management. Buy now or shop now for a robust Hikvision access control solution.
The Hikvision DS-K1T673DWX-E1 Pro Face Access Terminal is a professional access control solution designed for secure and convenient identity verification. It combines a 7-inch IPS capacitive touchscreen with a 2 MP wide-angle camera to provide fast and accurate face recognition at distances from 0.3 to 3 metres. With support for face, card and optional fingerprint authentication, the terminal is suitable for offices, commercial buildings, schools, warehouses and other controlled access environments.
Description
The DS-K1T673DWX-E1 provides a practical combination of biometric access control, card authentication and door control in a compact terminal. Its face recognition system can authenticate users in less than 0.2 seconds per person with an accuracy rate of at least 99%, helping provide fast entry without requiring physical contact with the device.
The 7-inch 600 x 1024 IPS capacitive touchscreen provides a clear interface for user interaction, while the 2 MP wide-angle lens supports reliable facial recognition. The terminal also includes face anti-spoofing and face mask detection functions for additional access control capability.
Users can authenticate using supported M1, Felica and DESfire cards, with the card presented directly to the terminal. The system supports up to 10,000 faces, 50,000 cards and 150,000 events, making it suitable for larger installations. When fitted with the optional fingerprint module, it can also support up to 10,000 fingerprints.
Features
Fast Face Recognition Access The Hikvision face recognition terminal is designed for quick user authentication, helping reduce queues and simplify controlled entry. It supports both single-person and multiple-person recognition, with recognition for up to five people.
Key access functions include:
Face recognition distance from 0.3 to 3 metres
Face recognition accuracy of at least 99%
Face recognition time of less than 0.2 seconds per person
Face anti-spoofing support
Face mask detection
Single-person and multiple-person recognition for up to 5 people
M1, Felica and DESfire card support
Touchscreen and Camera The 7-inch IPS display uses capacitive touch technology and has a 600 x 1024 resolution. The integrated 2 MP wide-angle camera is designed to capture users for facial authentication, while the built-in omnidirectional microphone provides audio input.
Access Control and Connectivity The terminal includes the interfaces required for integration with door access equipment and other security systems. It provides a dedicated lock control connection, exit button input, door contact input and alarm connections. RS-485 and Wiegand interfaces allow compatibility with supported access control equipment.
Network connectivity is provided through a 10/100/1000 Mbps self-adaptive RJ-45 interface. The unit also supports 2.4 GHz 802.11b/g/n Wi-Fi and Power over Ethernet, providing flexible installation options.
Important interfaces include:
1 x RJ-45 10/100/1000 Mbps network interface
1 x lock control
1 x exit button
1 x door contact input
2 x alarm inputs
1 x alarm output
1 x tamper input
1 x RS-485 interface
1 x Wiegand interface
1 x USB interface for module use
1 x 3.5 mm audio output
PoE support
User and Event Capacity The Hikvision DS-K1T673DWX-E1 is designed for installations requiring a substantial user database and event history. It supports 10,000 face records and 50,000 card records, while the event storage capacity reaches 150,000 events.
With the optional fingerprint module installed, the terminal can also accommodate up to 10,000 fingerprint records.
Door Control and Integration The built-in access control interfaces allow the terminal to form part of a complete door security installation. It supports ISAPI, ISUP 5.0 and TCP/IP communication, including IPv4 and IPv6 . This provides integration options for compatible Hikvision systems and supported access control environments.
Power and Installation The terminal operates from a 12 VDC to 24 VDC, 2 A power supply and supports PoE for network-based installation. It is rated IP65 for protection against dust and water ingress, making it suitable for a range of indoor and appropriately protected installation environments.
The operating temperature range is -30 C to 60 C, with an operating humidity range of 0 to 90% without condensation.
Technical Details
Operating system: Linux
Display: 7-inch IPS capacitive touchscreen
Display resolution: 600 x 1024
Camera: 2 MP wide-angle lens
Video standard: PAL by default / NTSC
Network: 10/100/1000 Mbps RJ-45
Wi-Fi: 2.4 GHz 802.11b/g/n
Face capacity: 10,000
Fingerprint capacity: 10,000 with optional fingerprint module
Card capacity: 50,000
Event capacity: 150,000
Power supply: 12 VDC to 24 VDC, 2 A
Power output: DC 12 V, 0.5 A
Protection rating: IP65
Working temperature: -30 C to 60 C
Working humidity: 0 to 90%, non-condensing
Dimensions: 110.5 x 209.2 x 24 mm
Net weight: 0.57 kg
Gross weight: 1.06 kg
Part Number / SKU The part number for this Hikvision Pro Face Access Terminal is DS-K1T673DWX-E1 . Use this SKU when searching for the specific terminal model or when ordering compatible equipment.
Suitable Applications The Hikvision DS-K1T673DWX-E1 can be used in offices, commercial premises, educational facilities, warehouses, industrial sites and other locations where controlled access and fast user authentication are required. Its combination of facial recognition, card authentication, optional fingerprint support, door control interfaces and network connectivity makes it suitable for both standalone access points and integrated security installations.
