Overview

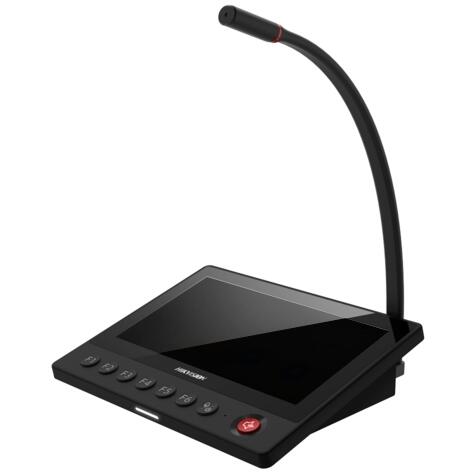

The Hikvision DS-QAZ1MP7G1/EU is a professional 7-inch network paging microphone designed for efficient voice announcements, emergency communication and scheduled broadcasting in network audio systems. Its responsive 7-inch IPS touchscreen provides clear control, while the gooseneck microphone and built-in audio functions make it suitable for paging and public address applications. With wired network connectivity, PoE support, audio input and output, local speaker support and TF card storage, it provides a practical solution for managing network-based announcements.

Description

The Hikvision DS-QAZ1MP7G1/EU combines a touchscreen paging console with network audio communication in a compact desktop unit. It supports live broadcasting, scheduled announcements, emergency broadcasting and text-to-speech functions, making it useful in environments where clear and reliable paging is required.

The 7-inch colour IPS touchscreen has a 1024 x 600 resolution and provides an intuitive interface for controlling paging functions. Physical buttons are also included, while up to six shortcut options from F1 to F6 can be defined for quick access to frequently used functions.

The gooseneck microphone is designed for clear voice communication and supports echo cancellation to help improve audio quality during paging. The unit also includes a built-in microphone and local speaker, allowing it to operate as a standalone paging terminal for suitable applications.

Features

Network Paging and Broadcasting
The DS-QAZ1MP7G1/EU supports wired network access and standard PoE power, helping simplify installation where compatible network infrastructure is available. It supports ISAPI and ISUP network protocols and can operate with HikCentral Professional for centralised management.

Key network and paging functions include:

• Live broadcasting for immediate voice announcements
• Scheduled broadcasting for planned announcements
• Emergency broadcasting for priority communication
• Text-to-speech support
• Partition management for organising paging areas
• Emergency call support
• Up to six configurable shortcut buttons from F1 to F6
• ISAPI and ISUP network protocol support
• HikCentral Professional client support

Clear Touchscreen Control
The 7-inch IPS touchscreen provides a 1024 x 600 resolution for clear menus and controls. The combination of on-screen controls and physical buttons allows users to operate the paging microphone quickly without relying solely on the touchscreen.

The gooseneck microphone provides a practical position for regular announcements, while echo cancellation helps reduce unwanted audio feedback during communication.

Audio Connections and Storage
For additional audio flexibility, the unit provides a 3.5 mm line input and a 3.5 mm line output. It also supports a local microphone and custom USB audio interface. TF card support provides local storage capability where required.

Audio connectivity includes:

• Gooseneck microphone
• Built-in microphone
• 1 x line input, 3.5 mm jack
• 1 x line output, 3.5 mm jack
• Local speaker
• TF card support
• Custom USB audio interface

The audio system supports MP3 audio at 128 Kbps, while the gooseneck microphone has a frequency response of 100 Hz to 15 kHz. The built-in microphone covers 100 Hz to 10 kHz.

Power and Installation
The network paging microphone operates from 12 VDC with a maximum power consumption of 10 W. It also supports standard PoE power through its network connection, which can help reduce cabling requirements in suitable installations.

With a single network interface and an embedded operating system, the DS-QAZ1MP7G1/EU is designed for straightforward integration into compatible network audio environments.

Technical Details

• Model: DS-QAZ1MP7G1
• Part Number / SKU: DS-QAZ1MP7G1/EU
• Display: 7-inch IPS touchscreen
• Display resolution: 1024 x 600
• Network protocol: ISAPI, ISUP
• Network interface: 1
• Client: HikCentral Professional
• Microphone: Gooseneck and built-in microphone
• Echo cancellation: Yes
• Audio format: MP3
• Audio bit rate: 128 Kbps
• Local storage: TF card
• Power: 12 VDC, maximum 10 W
• Operating system: Embedded
• Operating temperature: -10 C to +50 C
• Operating humidity: 10% to 90%

Where It Can Be Used
This Hikvision network paging microphone is well suited to locations that require centralised or zone-based voice announcements. Its live, scheduled and emergency broadcasting functions make it suitable for public address and network communication applications in commercial, industrial and institutional environments.

The combination of touchscreen control, network connectivity, PoE support, audio connections and configurable shortcuts makes the DS-QAZ1MP7G1/EU a versatile choice for network paging installations.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-QAZ1MP7G1/EU
Protocol
Network Protocol	ISAPI, ISUP
Microphone
Frequency Response	Gooseneck microphone: 100Hz to 15KHz, built-in microphone: 100Hz to 10KHz
Function
Audio Bit Rate	MP3, 128 Kbps
Echo Cancellation	Yes
Network
Client	HikCentral Professional
Interface
Network Interface	1
Local Storage	Support TF card
Audio In	Gooseneck MIC, custom USB interface
	LINE In x 1, 0 dBV, 100 kΩ, unbalanced, 3.5 mm jack
	Local MIC
Audio Out	LINE Out x 1, 0 dBV, unbalance, 3.5 mm jack
	Local speaker
Button	Physical buttons and on-screen buttons
Display Screen	IPS, 7 inches, 1024 x 600, touch screen
General
Power	12 VDC, max.10 W
System Requirement	Embedded operating system
Operating Temperature	-10 degreesC to +50 degreesC (14 degreesF to 122 degreesF)
Operating Humidity	10% to 90%
