Overview Summary

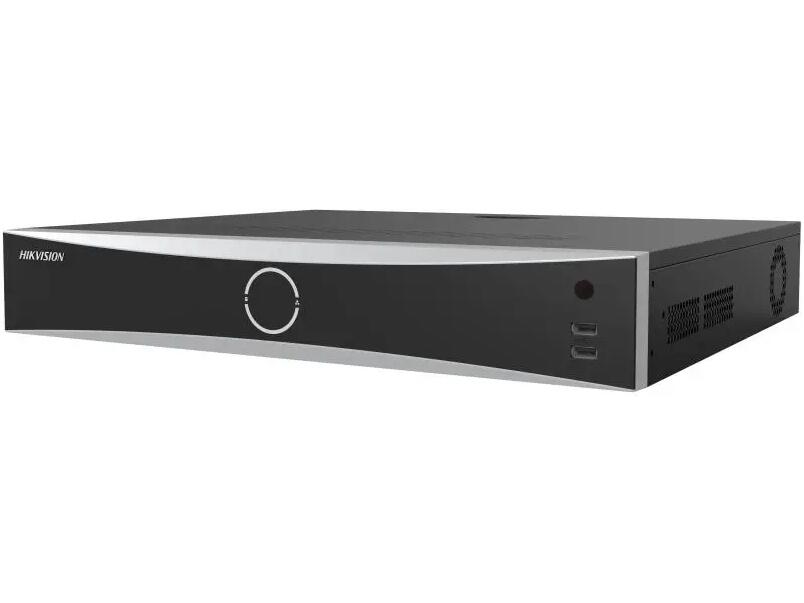

The Hikvision DS-7732NXI-I4/16P/S is a professional 32-channel 4K AcuSense NVR designed for advanced IP video surveillance. It supports up to 12MP camera resolution, 16 integrated PoE ports, facial recognition, motion detection and perimeter protection, making it suitable for demanding security installations.
With four SATA interfaces supporting up to 10TB per drive, 4K HDMI output and 16-channel synchronous playback, this NVR provides substantial recording and monitoring capacity. Buy now or shop now for a scalable Hikvision surveillance solution in South Africa.
Performance tier: Enterprise
Uses: IP camera recording, commercial security, office surveillance, retail security, warehouse monitoring, perimeter protection, facial recognition, multi-camera CCTV systems
Overview
The Hikvision DS-7732NXI-I4/16P/S is a professional 32-channel AcuSense 4K NVR designed for advanced IP video surveillance systems requiring intelligent detection, high-resolution recording and integrated PoE connectivity. With support for up to 32 IP cameras, 16 built-in PoE ports and up to 12 MP camera resolution, it provides a practical solution for larger security installations. The NVR also combines deep learning analytics, facial recognition, perimeter protection and efficient H.265+ video compression for improved surveillance performance and storage management.
Description
The Hikvision DS-7732NXI-I4/16P/S 32-channel PoE NVR brings advanced surveillance management into a single 1U rackmount unit. Its AcuSense technology uses deep learning algorithms to help identify relevant security events, while facial recognition, face picture libraries, motion detection and perimeter protection provide additional layers of intelligent monitoring.
With 16 integrated PoE ports and a total PoE power budget of 200W, the recorder can provide network connectivity and power to compatible IP cameras directly from the NVR. The system supports up to 32 IP camera inputs, making it suitable for expanding surveillance installations across offices, commercial properties, warehouses, schools and other larger sites.
Features
Hikvision DS-7732NXI-I4/16P/S AcuSense NVR The recorder supports up to 12 MP resolution for high-detail surveillance footage and provides 256 Mbps incoming bandwidth for handling multiple high-resolution IP camera streams. Up to 16 channels can be decoded at 1080p, while 16-channel synchronous playback makes it easier to review multiple camera feeds at the same time.
Video compression support includes H.265+, H.265, H.264+ and H.264, helping reduce bandwidth and storage requirements while maintaining useful image quality.
Intelligent Security Monitoring Deep learning based analytics make the DS-7732NXI-I4/16P/S more than a conventional video recorder. The AcuSense platform supports intelligent surveillance functions that can help security operators focus on relevant events.
Key intelligent functions include:
Up to 4-channel perimeter protection
Up to 4-channel facial recognition for video streams
Up to 8-channel facial recognition using face picture libraries
Intelligent analytics based on deep learning algorithms
Motion detection 2.0
Facial detection and face picture library support
These functions are useful for installations where simple recording is not enough and operators need more effective event identification and monitoring.
32-Channel IP Camera Support The NVR supports up to 32 IP camera inputs, allowing a surveillance system to be expanded beyond the 16 cameras that can be connected directly through the built-in PoE ports. Additional compatible cameras can be connected through the Gigabit network interface.
The 16 integrated RJ-45 PoE ports support 10/100 Mbps connections and provide a combined 200W PoE power budget, simplifying installation by carrying both network data and power over compatible Ethernet cabling.
4K Video Output and Playback For monitoring, the DS-7732NXI-I4/16P/S provides a 4K HDMI output alongside a second HDMI output and VGA connectivity. HDMI 1 supports up to 4K output, while HDMI 2 supports 1920 x 1080 at 60 Hz. HDMI 1 and VGA can also operate simultaneously.
The system supports up to 16-channel synchronous playback, making it easier to investigate incidents across multiple cameras. Its decoding capability supports up to 16 channels at 1080p.
Storage and Recording Capacity Four SATA interfaces provide space for multiple surveillance hard drives, with support for drives of up to 10 TB each. An eSATA interface is also included for additional storage expansion options.
Important storage and connectivity points include:
4 x SATA interfaces
Up to 10 TB capacity per disk
1 x eSATA interface
256 Mbps incoming bandwidth
H.265+ support for efficient video compression
Connectivity and Audio A Gigabit RJ-45 network interface provides high-speed network connectivity for the surveillance system, while the 16 PoE ports provide direct connections for compatible IP cameras.
The recorder also includes two-way audio functionality, allowing supported cameras and audio devices to be used for communication as part of the surveillance setup. A dedicated audio output and USB interfaces are also provided.
Alarm and Monitoring Connections For installations requiring external alarm equipment, the NVR provides 16 alarm inputs and 4 alarm outputs. This allows compatible sensors and alarm devices to be incorporated into the security system.
Video output options include:
1 x 4K HDMI output
1 x 1920 x 1080 HDMI output
1 x VGA output
HDMI 1 and VGA simultaneous output
1 x CVBS output
1 x audio output
Technical Details
Model: DS-7732NXI-I4/16P/S(STD)(E)
Part Number / SKU: HK-303618606
NVR type: 32-channel 1U 16 PoE AcuSense 4K NVR
IP camera inputs: Up to 32 channels
Maximum supported camera resolution: Up to 12 MP
Incoming bandwidth: 256 Mbps
PoE ports: 16 x RJ-45 10/100 Mbps
PoE power budget: 200W
Network interface: 1 x RJ-45 Gigabit
SATA interfaces: 4
Maximum storage per disk: Up to 10 TB
eSATA: 1
Alarm inputs / outputs: 16 / 4
Synchronous playback: Up to 16 channels
Decoding: Up to 16 channels at 1080p
Video compression: H.265+, H.265, H.264+, H.264, MPEG4
Audio: Two-way audio
HDMI 1: Up to 4K
HDMI 2: Up to 1920 x 1080 at 60 Hz
VGA: 1 output
CVBS: 1 output
A Practical Choice for Advanced IP Surveillance The Hikvision DS-7732NXI-I4/16P/S combines 32-channel IP camera support, 16-port PoE connectivity, 4K video output and intelligent AcuSense analytics in a compact 1U recorder. Its facial recognition capabilities, perimeter protection, motion detection and flexible storage options make it well suited to demanding commercial and professional CCTV installations.
For installers looking for a Hikvision 32-channel NVR with integrated PoE and intelligent security analytics, the DS-7732NXI-I4/16P/S provides a scalable platform for high-resolution IP surveillance systems.
Face picture comparison, human face capture, face picture search
Face Attributes
Face Picture Library
Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Face Picture Comparison (Captured From Camera)
4-ch
Facial Detection And Analytics Performance
1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Motion Detection 2.0
By Device
32-ch
Perimeter Protection
By Device
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Up to 12 rules in total
Video And Audio
IP Video Input
32-ch
Up to 12 MP resolution
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI1/VGA simultaneous output
HDMI 2 Output
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI2/VGA independent output
VGA Output
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI1/VGA simultaneous output
Video Output Mode
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
