Overview

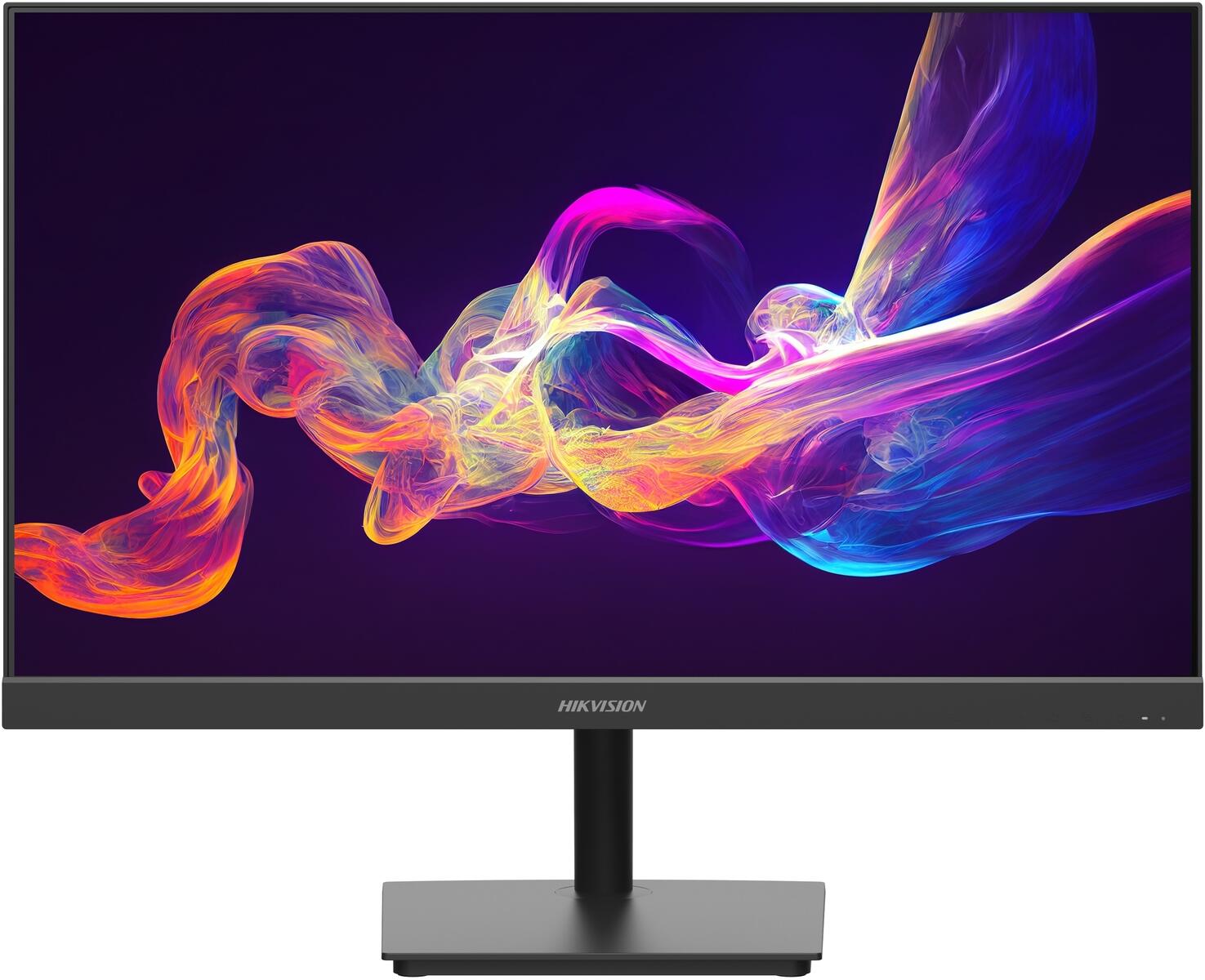

Hikvision 23.8 Inch FHD 100Hz VA Monitor
The Hikvision DS-D5024F2-AV2 is a 23.8 inch Full HD monitor designed for smooth everyday viewing, office work, entertainment and general desktop use. Its 1920 x 1080 resolution delivers clear images, while the 100Hz refresh rate provides noticeably smoother motion than standard 60Hz displays.

Description

This Hikvision 23.8 inch monitor combines VA panel technology with a slim design and narrow borders on three sides for a modern desktop setup. The 178 degree viewing angle makes it easier to see the screen clearly from different positions, while the 4000:1 contrast ratio helps produce deeper blacks and well-defined images.

For longer viewing sessions, the monitor includes a low blue light design to help reduce eye strain. 3D noise reduction also helps improve image clarity, making the display suitable for work, browsing, video playback and other everyday applications.

Features

Smooth Full HD Viewing
With a 100Hz refresh rate and 7ms response time, the DS-D5024F2-AV2 provides fluid movement and responsive on-screen performance. The Full HD 1920 x 1080 resolution offers a practical balance of image clarity and desktop performance on the 23.8 inch screen.

The VA panel provides a wide 178 degree viewing angle, allowing the image to remain easy to view when looking at the monitor from different positions.

Key display points include:

• 23.8 inch Full HD 1920 x 1080 display
• VA panel technology with 178 degree viewing angle
• 100Hz refresh rate for smoother motion
• 7ms response time
• 4000:1 contrast ratio
• 250 nits brightness
• 72% NTSC colour gamut
• 8 bit LVDS display
• E-LED backlight

Slim Design for Modern Desktops
The monitor has an ultra-thin body with a narrow border design across three sides. This gives the screen a clean appearance while making it well suited to modern workstations, home offices and multi-monitor setups.

The 75 x 75 mm VESA mounting support also provides the option of mounting the display on a compatible monitor arm or wall mount.

Connectivity for Everyday Use
The DS-D5024F2-AV2 includes both HDMI and VGA inputs, allowing it to connect to a range of desktop computers, laptops and other compatible devices. An audio output is also provided for connecting compatible audio equipment.

Connection options:

• 1 x HDMI 1.4
• 1 x VGA
• 1 x audio out
• 75 x 75 mm VESA mounting support

Comfortable Everyday Display
Low blue light technology is included to make the monitor more comfortable for extended viewing. Combined with the large 23.8 inch screen, Full HD resolution and wide viewing angle, it provides a practical display solution for productivity, browsing, media and general computer use.

The Hikvision DS-D5024F2-AV2 offers a strong combination of smooth 100Hz performance, VA panel contrast, Full HD clarity and versatile connectivity in a compact 23.8 inch monitor.

Part Number / SKU: HK-317500572

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-317500572
Display
Screen Size	23.8 inch
Active Display Area	527.04 (H) mm x 296.46 (V) mm
Resolution	1920 x 1080
Backlight	E-LED
Pixel Pitch	0.2745 (H) mm x 0.2745 (V) mm
Brightness	250 cd/m²
Viewing Angle	178degrees (H) / 178degrees (V)
Color Depth	8 bit ,16.7 M
Contrast Ratio	4000 : 1
Response Time	7ms
Refresh Rate	Typ. 60 Hz , Max. 100Hz
Haze	Haze 25%
Reliability	7 x 16 H
Color Gamut	72% NTSC
Interface
Video & Audio Input	HDMI 1.4 x 1, VGA x 1
Video & Audio Output	Audio Out x 1
Data Transmission Interface	None
Control Interface	None
Power
Power Supply	DC 12V, 2.0A
Power Consumption	≤ 24 W
Standby Consumption	≤ 0.5 W
Working Environment
Working Temperature	0degreesC to 40 degreesC (32 degreesF to 104 degreesF)
Working Humidity	20% to 90% RH (Non-Condensing)
Storage Temperature	-20 degreesC to 60 degreesC (-4 degreesF to 140 degreesF)
Storage Humidity	10% to 90% RH (Non-Condensing)
General
Casing Material	Plastic
VESA	75 mm x 75 mm (4 - M4 x 6 mm)
Bezel Width	2.0 mm (top/left/right), 23.55 mm (bottom)
Product Dimensions (W x H x D)	With base: 539.7 (W) mm x 427.33 (H) mm x 185.69(D) mm
	21.25 (W) inch x 16.82 (H) inch x 7.31 (D) inch
	Without base: 539.7 (W) mm x 327.33 (H) mm x 43.5 (D) mm
	21.25 (W) inch x 12.89 (H) inch x 1.71 (D) inch
Package Dimensions (W x H x D)	611 (W) mm x 405 (H) mm x 118 (D) mm
	(24.06(W) x 15.94(H) x 4.65 (D) ) inch
Net Weight	2.85 ± 0.5 kg
Gross Weight	3.85± 0.5 kg
Packing List	Monitor x 1, Base component x 1, Power adapter (12 V, 2 A) x 1, HDMI cable (1.5 m) x 1, User manual x 1, Multilingual manual x 1
Remarks	The base is included by default.
	The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
