MB-GZ390AP Gigabyte Z390 Aorus Pro Elite 8th / 9th gen LGA1151 socket ATX motherboard

MB-GZ390AP

Rate

Gigabyte Z390 Aorus Pro Elite 8th / 9th gen LGA1151 socket ATX motherboard

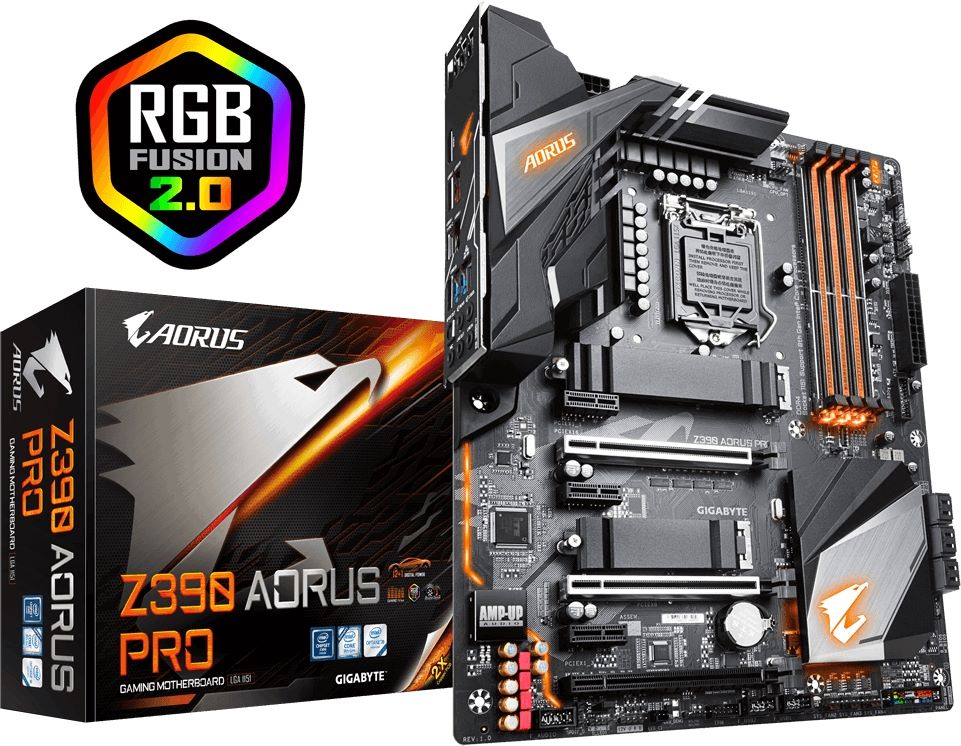

Images are for illustrative purposes and actual product may differ.

MB-GZ390AP

Motherboards: Intel LGA1151 9th gen

Gigabyte

MB-GZ390AP information and overview

Gigabyte Z390 Aorus Pro : all-in-one LGA1151(coffee lake) mb - with 12+1 phase digital VRM, pre-mounted I/O shield with thermal armor + RGB Fusion 2.0 with on-board RGB display ( 6 zones ), Addressable LED Strip Support, 2x copper PCBs design, MoSFET heatsinks with copper heatpipe, SmartFan5 with 10x temperature sensors + 8x hybrid fan headers, solid pin power connectors ( ATX 24+8+4pin ), memory armor with stainless steel shielding, PCIe armor with stainless steel shielding, with thunderbolt card connector, - intel Z390 chipset, 4x dual channel DDR4-4266(O.C)/2666 with XMP support upto 128Gb, 6x SATA6G + dual Gen3x4 M.2/NGFF with thermal guards ( PCIe or SATA or Optane mode ) with raid 0/1//0+1/5/10, on-board display with HDMi output ( depends on CPU ) + Realtek ALC1220-VB 7.1 HD audio ( with WiMA+Nichicon audio capacitors + optical s/pdif out ) + intel 219V gigabit lan with cFosSpeed Internet Accelerator, 3x pci-e(1x), 3x pci-e 3.0(16x+8x+4x) for Quad-GPU SLi/CrossfireX, with 1x USB3.1 type-A ( Gen2 10GBPs ) + 1x USB3.1 type-C ( Gen2 10GBPs ) + 3x USB3.0 + 4x USB2.0, bundled norton internet security + XSplit Gamecaster + Broadcaster - atx

Not for sale. This is a discontinued product.

Kindly search for an alternative on our site

Subject to correction, the product was first added on 2019-10-04 and the last date we have for this product is 2021-07-12, where the last unit was sold for R 2190, which may have been a final clearance price.

Specifications & more information about MB-GZ390AP, Motherboards: Intel LGA1151 9th gen manufactured by Gigabyte

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Intel Z390 AORUS Motherboard with 12 Phases Digital VRM Solutions, Multi-cuts Heatsinks with Heatpipe, RGB Fusion 2.0, Dual M.2 with Thermal Guards, Intel GbE LAN with cFosSpeed

Supports 9th and 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel Optane Memory Ready
12+1 Phases Digital VRM Solution with DrMOS
Advanced Thermal Design with Multi-cuts Heatsinks and Heatpipe
ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
Intel Gigabit LAN with cFosSpeed
RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Front USB 3.1 Gen 1 Type-C Header
Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guards
Multi-Way Graphics Support with Dual Armor and Ultra Durable Design
CEC 2019 Ready, Save Power With a Simple Click

Features:

Ferocious Talons
The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.

12*+1 Phases Digital Power Design
Z390 AORUS PRO motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel Core processors.

Advanced Thermal Design
Z390 AORUS PRO uses very high performance thermal design by combining 2 heatsinks with Heatpipe, thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

Pre-installed I/O Shield
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.

Dual PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Support for DDR4 to 4133MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility to 4133MHz and beyond.

All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

PERFORMANCE FUELED BY OPTANE
The Z390 AORUS Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

USB Type-C Front Panel Connector
Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 Gen1 drive or charging your new mobile device.

RGB Fusion 2.0
With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z390 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

RGB Fusion 2.0 Software
RGB Fusion APP
RGB Fusion 2.0 Ready

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Solid Pin Power Connectors
Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

Industry Leading Ultra Durable PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

Save power with a simple click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MB-GZ390AP
CPU	1. Support for 9th and 8th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
	2. L3 cache varies with CPU
	(Please refer to "CPU Support List" for more information.)
Chipset	1. Intel Z390 Express Chipset
Memory	1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
	** Please note that the support for system total memory size depends on the CPU installed.
	2. Dual channel memory architecture
	3. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(Please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.2.
	Maximum shared memory of 1 GB
	Actual support may vary by CPU
Audio	1. Realtek ALC1220-VB codec
	* The back panel line out jack supports DSD audio.
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	4. Support for S/PDIF Out
LAN	1. Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
	* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
	3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
	4. 3 x PCI Express x1 slots
	(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	1. Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
Storage Interface	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
	2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
	3. 6 x SATA 6Gb/s connectors
	4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
	* Refer to "1-8 Internal Connectors, " for the installation notices for the M.2 and SATA connectors.
	Intel Optane Memory Ready
USB	Chipset:
	1. 1 x USB Type-C port with USB 3.1 Gen 2 support on the back panel
	2. 1 x USB Type-C port with USB 3.1 Gen 1 support, available through the internal USB header
	3. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
	4. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x 4-pin ATX 12V power connector
	4. 1 x CPU fan header
	5. 1 x water cooling CPU fan header
	6. 4 x system fan headers
	7. 2 x system fan/water cooling pump headers
	8. 2 x digital LED strip headers
	9. 2 x digital LED strip power select jumpers
	10. 2 x RGB LED strip headers
	11. 6 x SATA 6Gb/s connectors
	12. 2 x M.2 Socket 3 connectors
	13. 1 x front panel header
	14. 1 x front panel audio header
	15. 1 x S/PDIF Out header
	16. 1 x USB Type-C port, with USB 3.1 Gen 1 support
	17. 1 x USB 3.1 Gen 1 header
	18. 2 x USB 2.0/1.1 headers
	19. 1 x Thunderbolt add-in card connector
	20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	21. 1 x Clear CMOS jumper
	22. 2 x temperature sensor headers
Back Panel Connectors	1. 4 x USB 2.0/1.1 ports
	2. 1 x HDMI port
	3. 1 x USB Type-C port, with USB 3.1 Gen 2 support
	4. 2 x USB 3.1 Gen 2 Type-A ports (red)
	5. 3 x USB 3.1 Gen 1 ports
	6. 1 x RJ-45 port
	7. 1 x optical S/PDIF Out connector
	8. 5 x audio jacks
I/O Controller	1. iTE I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Overheating warning
	6. Fan fail warning
	7. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1. 2 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. Support for DualBIOS
	4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	3D OSD
	@BIOS
	AutoGreen
	Cloud Station
	EasyTune
	Easy RAID
	Fast Boot
	Game Boost
	ON/OFF Charge
	Platform Power Management
	RGB Fusion
	Smart Backup
	Smart Keyboard
	Smart TimeLock
	Smart HUD
	System Information Viewer
	Smart Survey
	USB Blocker
	2. Support for Q-Flash
	3. Support for Xpress Install
Bundled Software	1. Norton Internet Security (OEM version)
Bundled Software	2. cFosSpeed
Operating System	1. Support for Windows 10 64-bit
Form Factor	1. ATX Form Factor, 30.5cm x 24.4cm
