MR-i322

Overview:

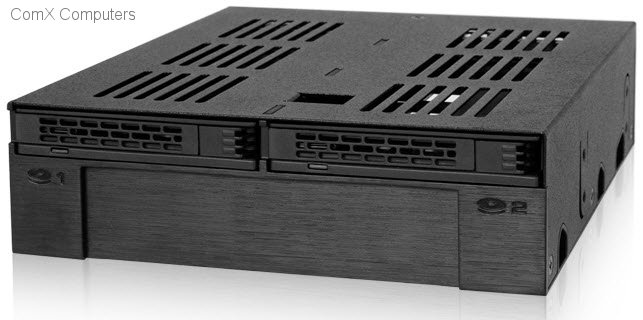

If you’re seeking a compact rack with versatility and functionality, we have a convenient enclosure just for you. The ExpressCage MB322SP-B is a mobile rack that converts a 5.25” device bay to fit two 2.5” SATA/SAS HDD/SSD (7mm-9.5mm), and includes a 3.5” slot for either a hard drive or a 3.5” device. With the unique tool-less drive installation design, the ExpressTray Mini allows you to install your 2.5” SATA or SAS HDD/SSD simpler than ever, and the optional bottom tray screw holes are provided for added stability. The MB322SP-B has a detachable dust cover which keeps the front panel enclosed to block out dust particles when the 3.5” slot is left unused or when there’s a 3.5” HDD installed. Soft blue LED indicator lights on each 2.5” drive bay notify you when drives are being used without being too distracting. For maximum durability we have implemented enhanced door latches and a solid metal housing.

Features:

• Compatible with any standard 5.25” device bay
• Fits 2x 2.5” SATA/SAS HDD/SSD and 1x 3.5” HDD/Device
• Supports 2.5” SATA/SAS HDD/SSD of 7mm & 9.5mm height
• Supports SATA 6Gbps or SAS single channel (requires SAS host)
• Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
• Soft blue indicator LED provided for each 2.5” HDD/SSD bay
• Detachable dust cover for 3.5” slot to keep debris from entering your system
• Enhanced tray and metal housing with for maximum durability
• ExpressTray Mini system for tool-less and easy 2.5” HDD/SSD installation
• Numerous ventilated slots for enhanced cooling
• Locking latch design for 7 pin SATA connectors
• Compatible with our lineup of 3.5” mobile racks like the MB991SK-B and MB992SK-B
• Designed for power users and system builder applications, mainly space saving and hot swap usage and for 2.5” HDD or SSD

Space Versatility
Not your typical 5.25” mobile rack, the ExpressCage MB322SP-B *takes two 2.5” SATA/SAS HDD/SSD of 7mm to 9.5mm height and converts them into two hot-swap drive bays. It also includes 3.5” slot for a 3.5” device or 3.5” hard drive for various build options. With the extra slot, users can expand their storage by adding a 3.5” HDD or a ToughArmor MB992SK-B for two more 2.5” hot swap bays. The 3.5” slot is also compatible with an assortment of 3.5” form factor devices from USB 3.0 hubs to fan speed controllers. This versatility makes the MB322SP-B an essential tool for a wide range of power users and system builders looking to add variability to their computer build.

Innovative ExpressTray Mini Design
The magic of our ExpressTray Mini simplifies the drive installation process to provide a complete tool-less process to remove and install 2.5” SATA/SAS hard drives or SSDs. Attach a drive within seconds to the ExpressTray and remove it just as easily! Simply place the front end of the drive (the side without the connectors) down into the built in screws and ensure that end sits flush with the base of the tray. Now push the rear end (the side with the connectors) downwards onto the drive and ensure that there’s no space between the drive and the tray. To remove the drive, you simply need to reverse the process. Pull on the rear tab of the tray to free up the drive and then remove the drive.

Design Features
The MB322SP-B’s 3.5” slot for 3.5” HDDs or 3.5” devices comes with a detachable dust cover that not only protects your devices from dust and debris but also blends in with your system. So if you decide to leave the 3.5” slot empty or you have a 3.5” HDD for additional storage, the dust cover provides a visually flowing look while preventing dust from entering the system. The ExpressCage also comes with a metal cover finish for robustness and numerous ventilated slots for enhanced cooling. Each bay has its own indicator light to notify you of any hard drive activity. Soft-blue LED makes it easier to sense when drives are in use without straining your eyes.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MR-i322
Model Number	MB322SP-B
Color	Black
Host Interface	2 x 7pin SATA
Drive Fit	1 x 3.5" device or 1 x 3.5" hard drive
	2 x 2.5" SATA or SAS (single channel) HDD/SSD
Compatible 2.5" Drive Heights	7mm, 9.5mm
Device Fit	Single 5.25" half height device bay
Transfer Rate	Up to 6 Gb/sec. (depending on hard drive speed)
Power Input	Single 15pin SATA power port
Insert& Extract connection Via	Direct SAS/ SATA hard drive connection
Structure	Plastic and metal
Power Indicator	Solid blue LED
HDD Access Indicator	Blinking blue LED
Dimension (L x W x H)	145.8 x 41.3 x 151.1mm
Weight	346.3g
Package Contents	Device, user manual, screws
