About this product

The Mercusys MS108GS 8-Port Gigabit Desktop Switch provides a simple way to expand a wired network with 8 x 10/100/1000 Mbps RJ45 Gigabit Ethernet ports. Its durable metal casing, fanless silent operation, Auto-Negotiation, Auto-MDI/MDIX and plug and play design make it suitable for homes, small offices, computers, printers, IP cameras, smart TVs and game consoles. Buy now from our website for a reliable Gigabit Ethernet network expansion solution.

Overview Summary

Description

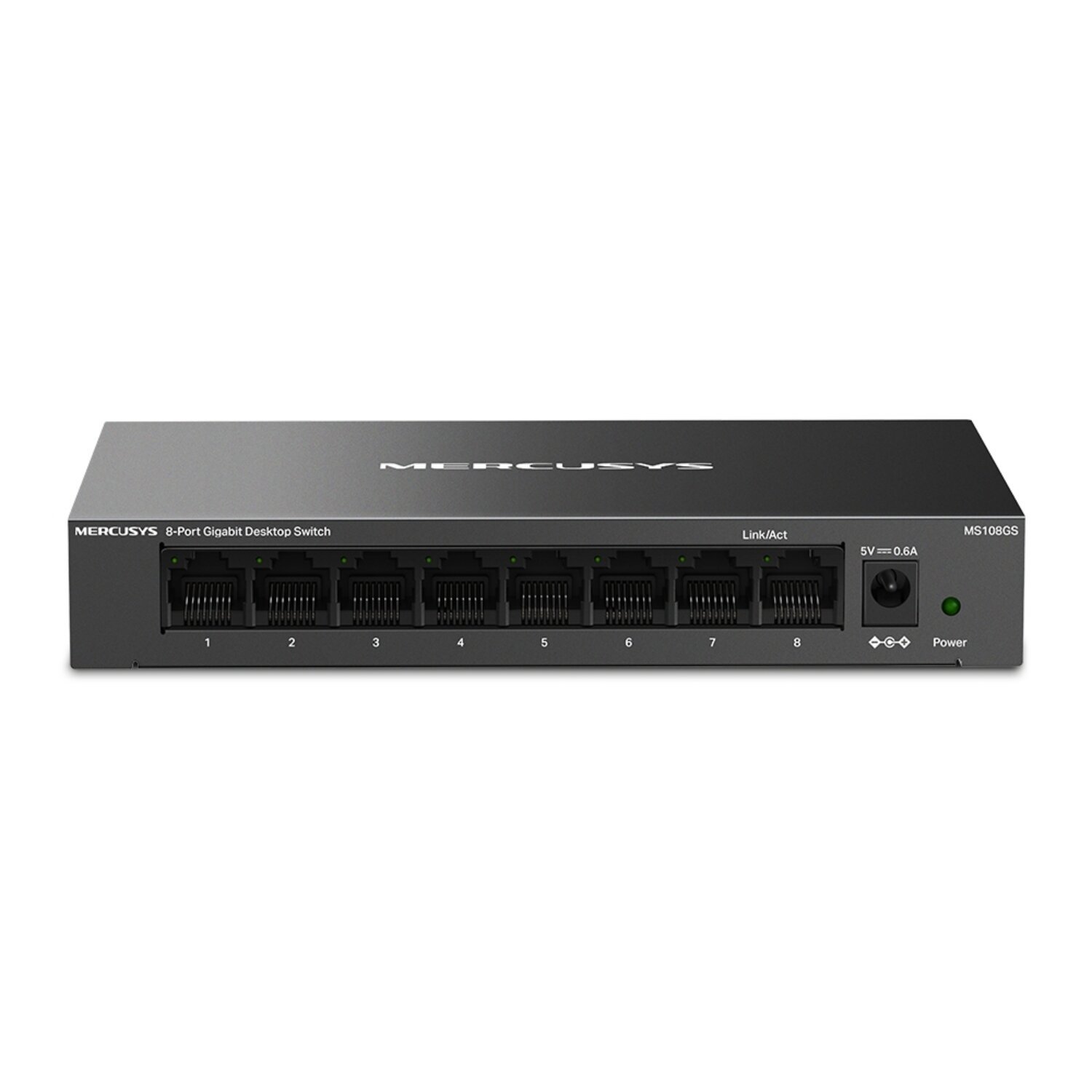

The Mercusys MS108GS is an 8-port Gigabit desktop switch designed to provide straightforward wired network expansion for home and small office environments. It provides 8 x 10/100/1000 Mbps RJ45 Ethernet ports, allowing multiple compatible devices to connect to a wired network through a single compact switch.

Each Ethernet port supports Auto-Negotiation and Auto-MDI/MDIX, helping the switch automatically establish the appropriate connection speed and simplifying cable installation. The switch supports 10/100/1000 Mbps operation at half duplex and 20/200/2000 Mbps data rates at full duplex.

With a 16 Gbps switching capacity and store-and-forward transmission, the MS108GS is designed to handle network traffic between connected devices. Its 8K MAC address table uses automatic learning and aging, while flow control helps manage network traffic.

The fanless design allows the switch to operate without a cooling fan, making it suitable for environments where quiet operation is important. The durable metal casing supports efficient heat dissipation and helps provide a robust enclosure for everyday network use.

The MS108GS can be used with computers, printers, IP cameras, 4K Ultra HD TVs, game consoles and other compatible Ethernet devices. Its desktop or wall-mounting design provides flexibility when installing or expanding a wired network.

Features

The MS108GS combines Gigabit Ethernet connectivity with simple installation and a compact design for practical wired network expansion.

• 8 x 10/100/1000 Mbps Gigabit Ethernet RJ45 ports
• Auto-Negotiation automatically selects the supported connection speed
• Auto-MDI/MDIX simplifies Ethernet cable connections
• 16 Gbps switching capacity
• Store-and-forward transmission method
• 8K MAC address table with automatic learning and aging
• Fanless design for silent operation
• Durable metal casing
• Desktop and wall-mounting design
• Plug and play installation with no configuration required
• Supports half duplex and full duplex operation
• Supports IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x and IEEE 802.3p standards
• Green Ethernet technology helps reduce power consumption according to link status and cable length
• Suitable for computers, printers, IP cameras, 4K Ultra HD TVs and game consoles

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports-10 times faster than regular 10/100 Mbps Ethernet ports. MS108GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

Durable, Silent, and Flexible
MS108GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

What's in the Box

• Mercusys MS108GS 8-Port Gigabit Desktop Switch
• Power adapter
• Quick Installation Guide

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MS108GS
Software
Transfer Method	Store and Forward
Hardware
Dimensions (W X D X H)	6.2 x 3.9 x 1.0 in
Interfaces	8x 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply	5V/0.6A
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates	10/100/1000Mbps at Half Duplex
	20/200/2000Mbps at Full Duplex
Buffer Capacity	4 Mbit
Jumbo Frame	15 KB
LED	Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Others
Package Contents	8-Port Gigabit Desktop Switch (MS108GS)
	Power Adapter
	Quick Installation Guide

FAQ

What is the Mercusys MS108GS used for?

The Mercusys MS108GS is used to expand a wired Ethernet network by providing 8 x Gigabit RJ45 ports for compatible computers, printers, IP cameras, smart TVs, game consoles and other network devices.

How many Ethernet ports does the MS108GS have?

The MS108GS has 8 x 10/100/1000 Mbps RJ45 Gigabit Ethernet ports.

Does the Mercusys MS108GS require configuration?

No. The MS108GS is a plug and play switch designed to operate without complicated configuration.

Does the MS108GS support Gigabit Ethernet?

Yes. All 8 Ethernet ports support 10/100/1000 Mbps operation, including Gigabit Ethernet connectivity.

Is the Mercusys MS108GS silent?

Yes. The MS108GS uses a fanless design, allowing silent operation without a cooling fan.

Can the MS108GS be mounted on a wall?

Yes. The MS108GS has a design that supports desktop or wall-mounting installation.

What devices can connect to the MS108GS?

The switch can connect compatible Ethernet devices such as computers, printers, IP cameras, 4K Ultra HD TVs and game consoles.

Does the MS108GS support Auto-MDI/MDIX?

Yes. Auto-MDI/MDIX is supported, helping simplify Ethernet cable connections by automatically detecting the appropriate connection configuration.

What is the switching capacity of the MS108GS?

The MS108GS has a switching capacity of 16 Gbps.
