Overview:

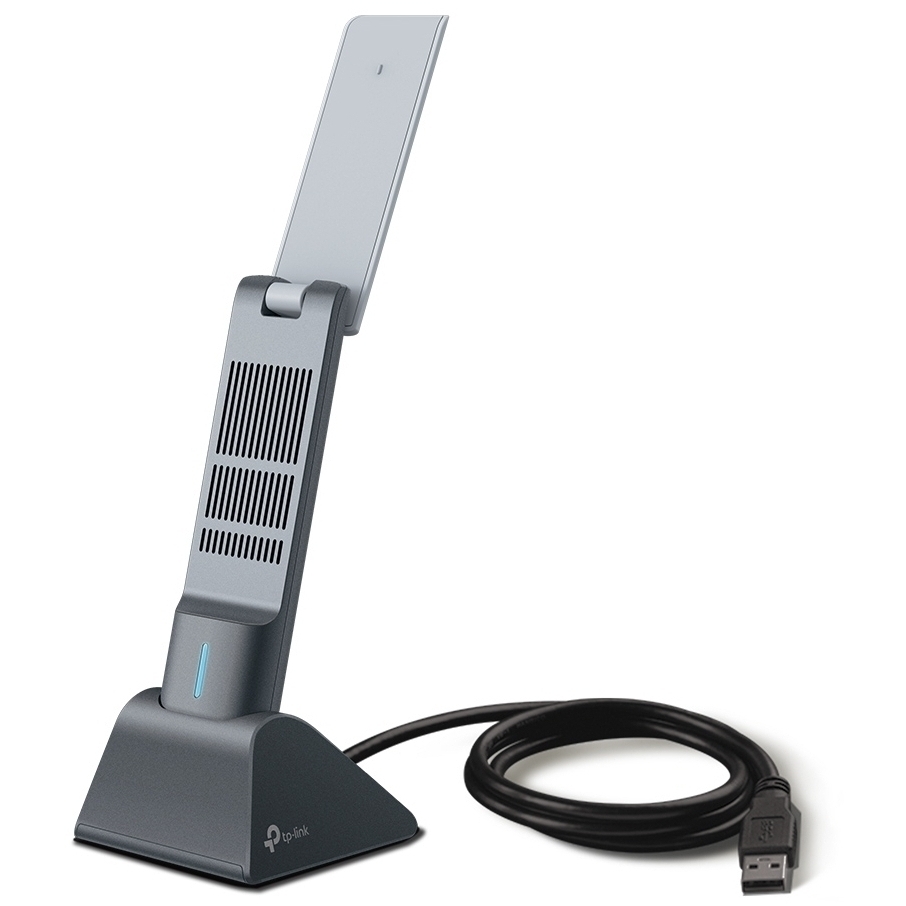

Archer TX20UH
AX1800 High Gain Wireless USB Adapter

• Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
• Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity.
• Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming.
• Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC.
• Improved Security - WPA3 provides the latest security enhancements for personal password protection.
• SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0,

Features:

AX1800 High Gain Wireless USB Adapter

• Archer TX20UH
• AX 1800 Super-Fast Speed
• Range Booster High Gain Antennas + Beamforming
• USB 3.0 Blazing-Fast Transfer Speeds
• The Latest Encryption Security
• Windows 11/10 Compatible
• Flexible & Easy Installation

Upgrades Your PC with Wi-Fi 6
Forget about buying a new PC. TX20UH delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

• 1201 Mbps 5 GHz Band
• 574 Mbps 2.4 GHz Band

Greater Coverage and Stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Lower Latency, Higher Efficiency, and Less Congestion

• MU-MIMO Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices. MU-MIMO Router Regular Adapter MU-MIMO Router Archer TX20UH
• OFDMA Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games. Data Transmitted Without OFDMAWaiting Client 2Waiting Data Transmitted With OFDMA Client 1 Client 2 Client 3

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 - the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads.

Easy Use with a Flexible Design
A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	NET-ARCHER-TX20UH
HARDWARE FEATURES
LED	Status
Dimensions	30.5 x 14.8 x 111.7 mm (1.2 x 0.58 x 4.4 in)
Antenna	2 x High-Gain Dual-Band Antennas
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
Signal Rate	5 GHz:
	11ax: Up to 1201 Mbps(dynamic)
	11ac: Up to 867 Mbps(dynamic)
	11n: Up to 300 Mbps(dynamic)
	11a: Up to 54 Mbps(dynamic)
	2.4 GHz:
	11ax: Up to 574 Mbps(dynamic)
	11n: Up to 400 Mbps(dynamic)
	11g: Up to 54 Mbps(dynamic)
	11b: Up to 11 Mbps(dynamic)
Transmit Power	5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
	2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)
Wireless Modes	Infrastructure mode
Wireless Security	WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS
Certification	FCC, CE, RoHS
Package Contents	AX1800 High Gain Wireless USB Adapter Archer TX20UH
	Quick Installation Guide
	USB 3.0 Cradle
System Requirements	Supported operating systems include Windows 10, 11
Environment	Operating Temperature: 0°C~40°C (32°F ~104°F)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
