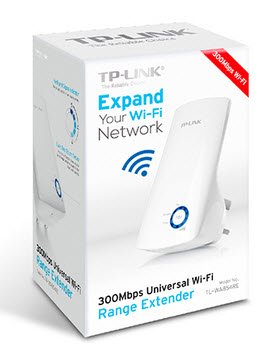

NET-TL-WA854RE

Overview:

TP-LINK's TL-WA854RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”. With 300Mbps wireless N speeds, Range Extender button, miniature size and wall mounting design, extending a wireless network has never been easier.

Features:

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Easily expand wireless coverage at a push of Range Extender button
• Tether App allows easy access and management using any mobile device
• LED Control function includes a Night Mode for peaceful sleep

300Mbps Range Extender
The TL-WA854RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”, help users maintain an existing wireless network and vastly improve the network’s coverage. With 300Mbps wireless 802.11n speeds, it is ideal for smooth HD video, music streaming and online gaming.

Flexible Deployment
The device's miniature size and wall-mounted design make it easy to deploy and move flexibly. What's more, the TL-WA854RE's profile function remembers previously paired wireless networks, meaning there is no need to reset the device when changing the paired router.

Plug and Play
With no new wires or cables, within range of their existing wireless network, users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA854RE or vice versa. An additional push of the pair button can quickly establish an encrypted connection with client devices.

Smart Signal Indicator Light
5 signal lights represent the current signal strength that TL-WA854RE receives from existing router, which can help to find the right location to place the range extender so that the TL-WA854RE can achieve the best possible range and performance of the network.

Universal Compatibility
Works seamlessly with all 802.11 n/g/b wireless devices. It is also compatible with the latest Windows 8 operating system.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	NET-TL-WA854RE
HARDWARE FEATURES
Plug Type	EU, UK, US
Button	RE (Range Extender) Button, Reset Button
Power Consumption	About 3W
Antenna	2 * internal
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
WIRELESS FEATURES
Frequency	2.4~2.4835GHz
Signal Rate	11n: Up to 300Mbps (dynamic)
	11g: Up to 54Mbps (dynamic)
	11b: Up to 11Mbps (dynamic)
Reception Sensitivity	270M: -68dBm@10% PER
	130M: -68dBm@10% PER
	108M: -68dBm@10% PER
	54M: -68dBm@10% PER
	11M: -85dBm@8% PER
	6M: -88dBm@10% PER
	1M: -90dBm@8% PER
Transmit Power	< 20 dBm (EIRP)
Wireless Modes	Range Extender
Wireless Functions	WMM (Wi-Fi Multimedia)
	Wireless MAC Address Filtering
	Wireless Statistic
	Domain Login Function
Wireless Security	64/128/152-bit WEP
	WPA-PSK / WPA2-PSK
OTHERS
Certification	CE, RoHS
Package Contents	300Mbps Universal Wi-Fi Range Extender TL-WA854RE
	Resource CD
	Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: 0°C~40°C (32°F~104°F)
	Storage Temperature: -40°C~70°C (-40°F~158°F)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
